Chauvet DJ EVE P-140 VW

Highlights

• Robust, variable-white wash light designed for mobile lighting professionals
• Included interchangeable magnetic lenses alter the beam to desired angles
• Built-in gel frame holder and 61/4-inch accessory slot to hold barn doors
• powerCON®-compatible power input/output connections for power linking
• Fanless design ensures 100% silent operation

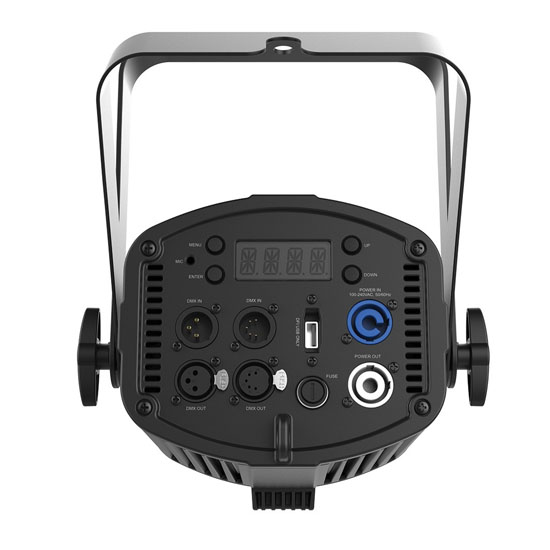

• Flexible control options with onboard 3- and 5-pin DMX connectors
• Flicker-free on video due to the high-frequency LED dimming
• D-Fi USB compatibility for wireless master/slave or DMX control
• Cast aluminum housing provides extra strength without the weight
• Fits best in the CHS-40 VIP gear bag

Specifications:

• DMX Channels: 3 or 9
• DMX Connectors: 3- and 5-pin XLR
• Light Source: 40 LEDs (13 cool white, 13 warm white, 14 amber) 140 W total, (2.4 A ), 50,000 hours life expectancy
• Strobe Rate: 0 to 34 Hz
• PWM Frequency: 2 kHz
• Beam Angle: 25°, 35° or 45°
• Field Angle: 45°, 55° or 65°
• Illuminance:
  • (35°): 2,793 lux @ 2 m (lens 1)
  • (41°): 2,082 lux @ 2 m (no lens installed)
  • (56°): 1,335 lux @ 2 m (lens 2)
  • (37°): 447 lux @ 5 m (lens 1)
  • (41°): 333 lux @ 5 m (no lens installed)
  • (56°): 214 lux @ 5 m (lens 2)
• Power Linking: 8 units @ 120 V; 16 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 122 W, 1.2 A @ 120 V, 60 Hz
  111 W, 0.5 A @ 230 V, 50 Hz
• Weight: 7.6 lbs. (3.5 kg)
• Size: 8.6 x 9.65 x 12 in (220 x 245 x 305 mm)
• Approvals: CE, MET
• Color Temperature Range: 2700 to 13000 K
• Optional Controllers: D-Fi USB
• Accessory Holder/Gel Frame Size: 6.25 in (159 mm)
• CRI: 77

Whats Included

• EVE P-140 VW
• 25° and 45° lenses
• Gel frame
• Power cord

Downloads

• EVE P-140 VW Quick Reference Guide
• EVE P-140 VW User Manual
• EVE P-140 VW ShowXpress Profile
