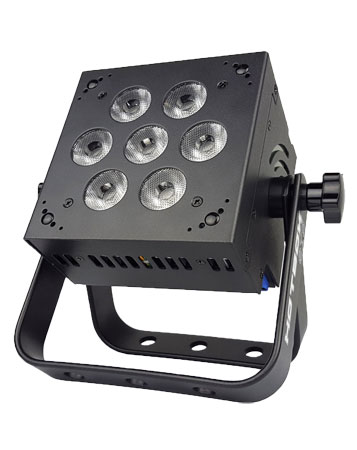

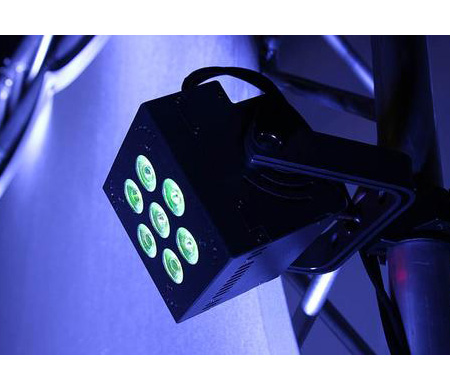

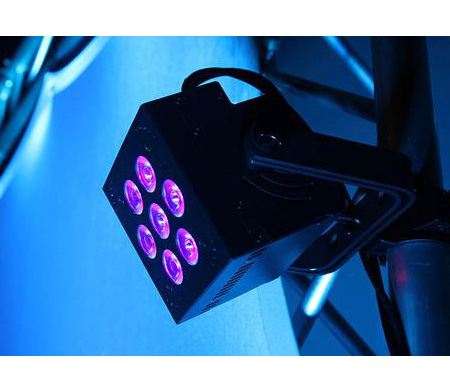

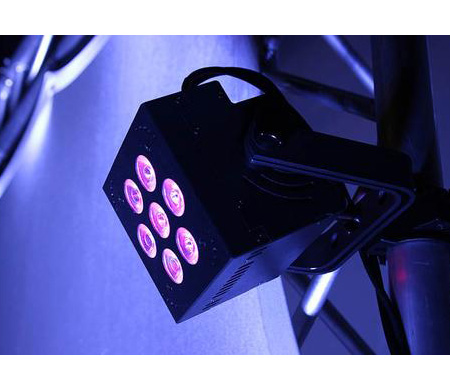

Blizzard HotBox™ EXA

Description

6-in-1 Color Mixing Magic

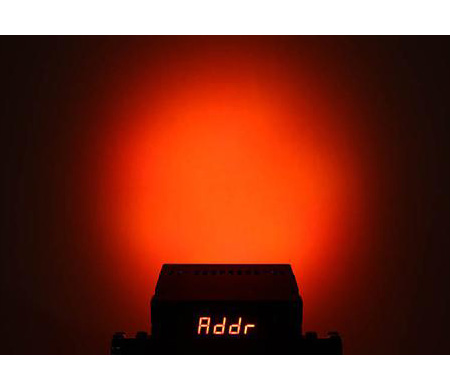

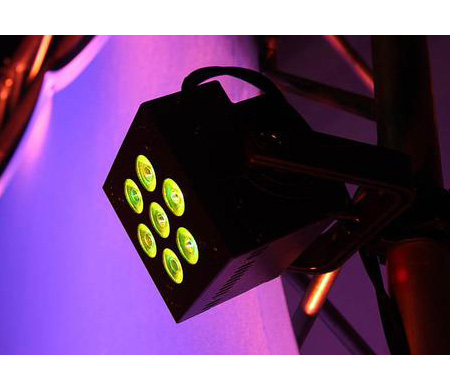

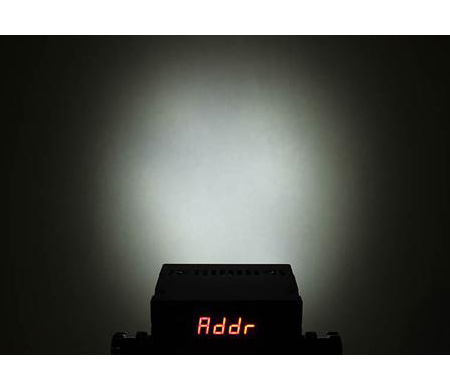

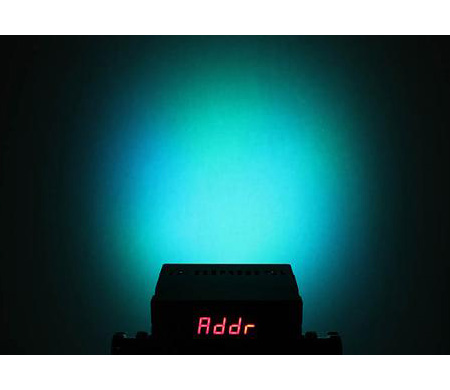

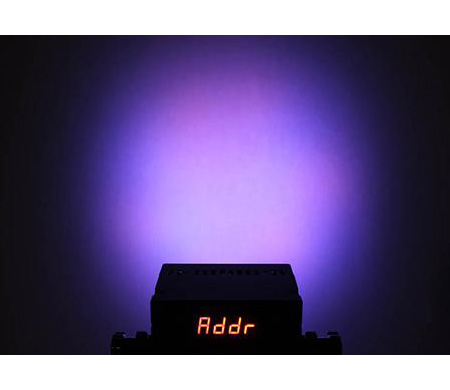

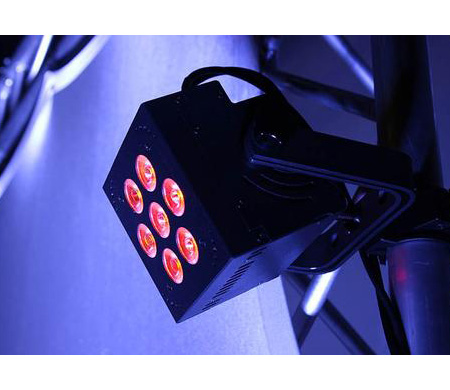

Set the stage ablaze with the endless 6-in-1 RGBAW+UV color mixing abilities of the HotBox™ EXA! With 7x 15W high power LEDs loaded into a compact fixture, users can archive the sweetest mixed colors or the warmest of whites. In the mood for something a bit eerie? Throw in some UV for psychedelic bliss. Strategically placed connections allow for the HotBox™ EXA to shine bright in ANY position, including flat on the floor. Use 'em for uplights, truss warmers, and more!

Easy Breezy Control

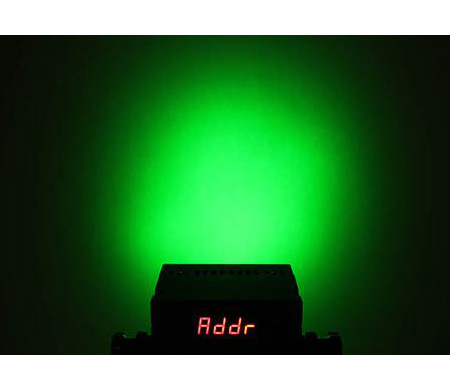

The HotBox™ EXA features 3/6/8/10 or 11 DMX channel modes, which means it works well with any type of controller, You'll have full control of all that it has to offer, such as RGBAW+UV color mixing, 35 built-in programs, ultra smooth flicker-free 32-bit dimming (5 user-selectable dimming curves), and even easy HSV color mixing ability in 3-channel mode. The super-easy to use built-in 4-button LED control panel also allows total control over the fixture including master/slave settings, sound active mode, built-in programs, auto mode, custom RGBAW+UV color mixing, and user adjustable fade/strobe effects.

Features:

• Color mixing via 7x 15W RGBAW+UV 6-in-1 LEDs
• 395-400nM ultraviolet light output
• 5 user-selectable 32-bit dimming curves
• Variable electronic dimming & strobe
• Built-in color & chase macros via DMX
• Built-in automated programs via master/slave
• Built-in sound active programs
• RGBAW+UV color mixing ability in standalone mode
• Rugged and well-built (It hits the gym regularly)
• Super-quiet variable-speed internal fan cooling
• Dual mounting brackets for positioning flexibility
• Flicker-free constant-current 400hz LED driver
• 3-pin male input and 3-pin female output
• powerCON® compatible AC power In/Out connectors

Specifications:

Optical

• Light source: 7x 15W 6-in-1 LEDs 100,000 hours
• Beam Angle: 25 degree optics standard, 26 degree beam, 30 degree field
• Optional diffuser plate with thumb screws available (sold separately)

Weight & Dimensions

• Length: 4 inches (102 mm)
• Width: 5 inches (127 mm)
• Height: 5 inches (127 mm)
• Weight: 3.5 lbs (1.6 kg)

Control

• Protocol USITT DMX-512
• DMX Channels: 3/6/8/10/11
• Input: 3-pin XLR Male
• Output: 3-pin XLR Female
• HSV (3-Ch), RGBAW+UV (6-Ch), RGBAW+UV/Dim/Strobe (8-Ch), Extended (10-Ch), & Extended w/32-bit Dimmer (11-Ch) DMX Profiles
• Operating Modes: Standalone, Master/Slave, Sound Active, Color Preset

Power & Current

• Operating Voltage: 100-264VAC, 47-63 Hertz
• Fuse: 2A 250V
• Power Consumption: 58W

Warranty

• 2-year limited warranty, does not cover malfunction caused by damage to LEDs

Downloads

• CUTSHEET
• MANUAL REV A
