ADJ MOD STQ

Description

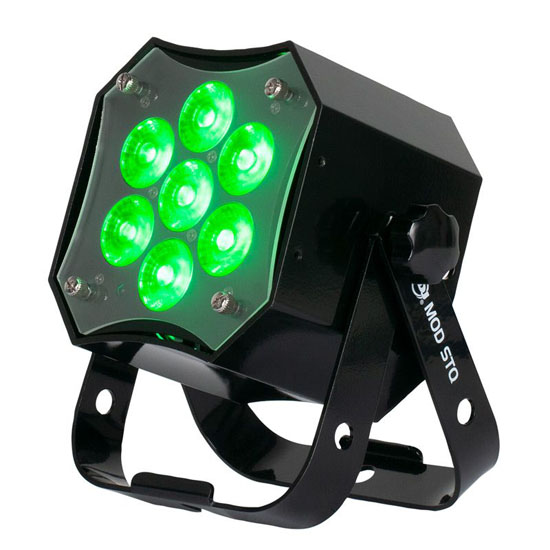

The ADJ MOD STQ is compact, high out, low power draw LED Par used as a wash fixture powered by seven 8-Watt RGBW (4-IN-1) LED diodes, a scissor yoke and four beam angle options: 17, 20, 40 or 60-degrees.

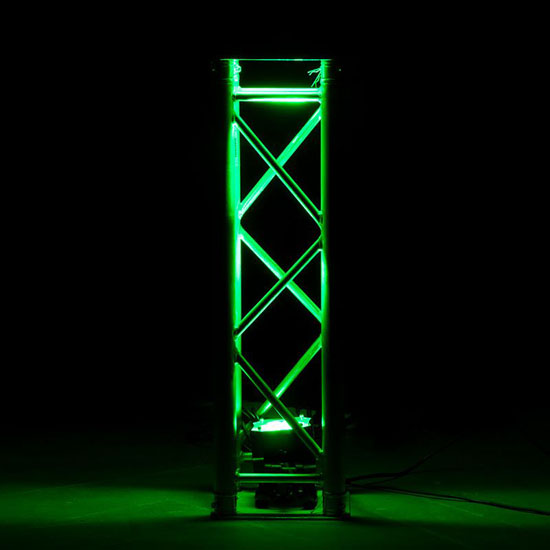

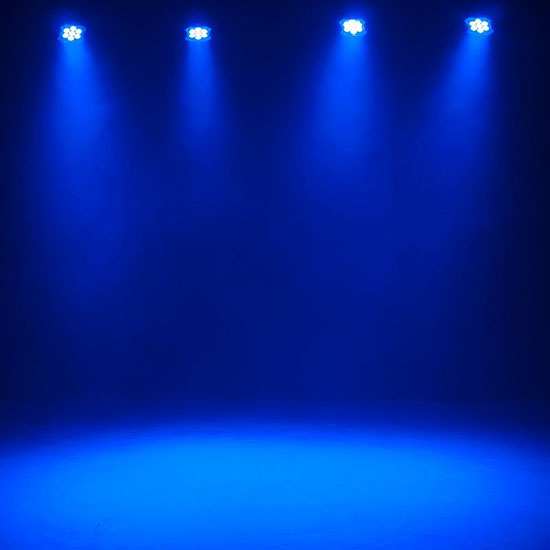

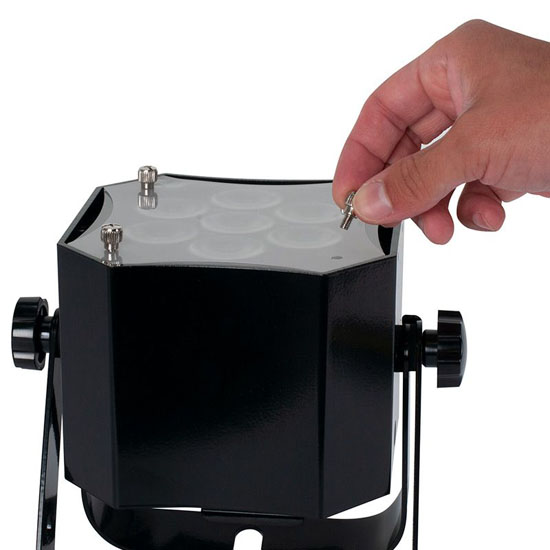

The ADJ Lighting MOD STQ is a compact, high out, low power draw LED Par used as a wash fixture or up light for stages, churches, clubs, lounges and fun centers. It comes equipped with seven 8-Watt RGBW (4-IN-1) LED diodes (for a total output of 56W), a scissor yoke and three interchange frost filters that are easily replaceable by thumb screws. The 17-degree standard beam may be changed on the fly to 20, 40 or 60-degrees. The MOD STQ is a versatile LED Par that may be sued as stage lighting, up lighting or truss warming.

From the 4-button display menu controls users have full access to 64 color macros, 8 DMX channel modes, 5 operational modes, 6 dimming curve modes, as well as, LED refresh rate and gamma control settings.

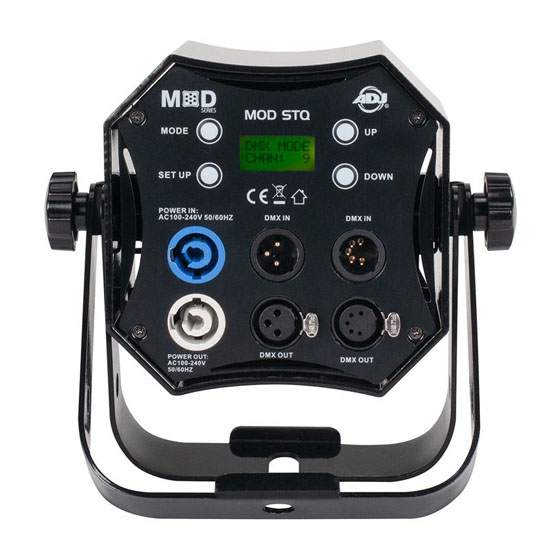

Connections on the MOD STQ are very flexible with twist lock In/Out sockets to daisy chain the power from one fixture to another. Plus, there are both 3-pin and 5-pin DMX sockets for data linking.

Specifications:

Light Source:

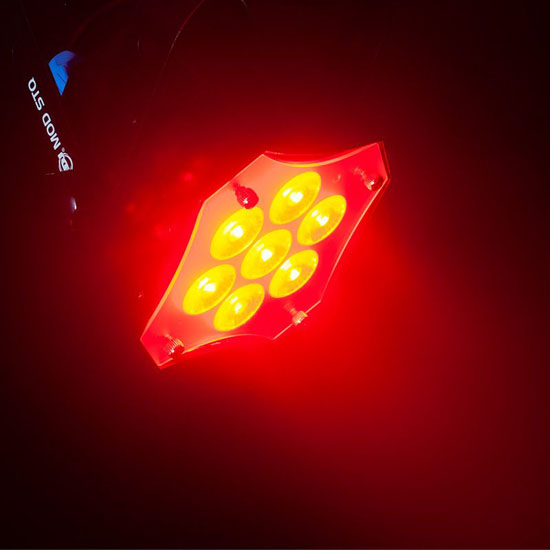

• 7x 8-Watt RGBW (4-IN-1 - Red, Green, Blue & White) LEDs
• 50,000 Hour Average LED Life
 Features:
• Compact, black gloss metal housing

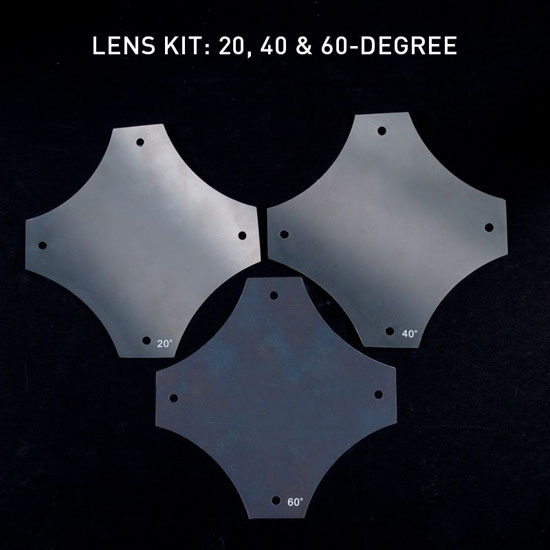

• Includes 3 frost filters to change beam angle: 20-degree, 40-degree or 60-degree
• Scissor yoke included
 Output:
• Total Lumens: >2500
• LUX: 2952 @ 3M (9.8 ft.)
• Beam angle: 17-degrees
 Connections:
• Power: Twist locking power input and output
• DMX: 3-pin & 5-pin In/Out
• With Wired Digital Communication Network
 Control:
• UC IR wireless remote included
• 8 DMX Channel Modes: 4, 5, 7, 8, 9, 12 ,13 or 15
• 64 built-in Color Macros
• 5 operational modes
• 4-button control menu with display
• Electronic Dimming: 0-100%
• Variable strobe control
• 6 dimming curve modes
• Adjustable LED Refresh Rate and Gamma Control
 Electrical:
• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
• Max Power Draw: 57W
• Locking power in/out to daisy chain up to: 7 Fixtures Max@ 120V, 12 Fixtures Max@ 240V

Dimensions/Weight:
• Dimensions (LxWxH): 7.75" x 7.4" x 8" / 197 x 187.8 x 203mm
• Weight: 4.3 lbs. / 1.95 kg.

What's in the Box

• UC IR wireless remote
• Airstream IR adapter for use with Airstream IR APP
• Power Cable
• Twist locking power output adapter (so you can make your own power linking cables)
