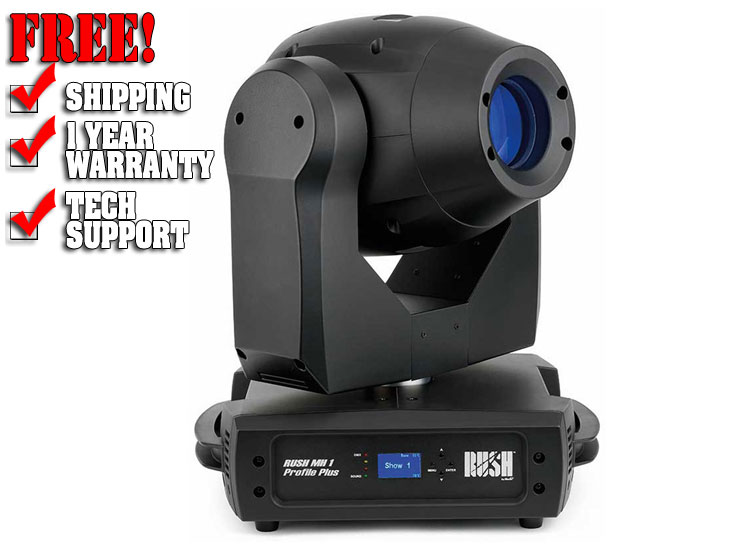

Martin RUSH MH1 Profile Plus 180-Watt LED Moving Light

Specifications:

Dynamic Effects

• Color wheel 1: 7 colors plus open, rotation with variable direction and speed
• Color wheel 2: 7 colors (incl. 1 x UV, 2 x CTC) plus open, rotation with variable direction and speed
• Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo indexing, rotation and shake
• Static gobo wheel: 8 gobos plus open, wheel rotation and shake
• Electronic 'shutter' effect: Strobe effect, pulse effects, instant open and blackout
• Prism: Indexing and rotation with variable direction and speed
• Iris: Motorized
• Focus: Motorized
• Electronic dimming: 0 – 100%, four dimming curve options
• Pan: 540°
• Tilt: 270°
• Pan and tilt speed: Adjustable via onboard control panel and DMX

Control and Programming

• Control options: DMX, standalone
• DMX channels: 17
• Standalone trigger options: Music trig, auto trig
• Standalone sequences: 4 pre–programmed shows
• Standalone memory: 20 scenes
• Music trig sensitivity: Adjustable
• Setting and addressing: Control panel with backlit graphic display
• DMX compliance: USITT DMX512/1990

Optics

• Light source: 180 W LED engine
• Minimum LED lifetime: 20 000 hours (to >70% luminous output)*
• *Figure obtained under manufacturer’s test conditions

Photometric Data

• Efficacy: 25.5 lumens per watt
• Cut–off angle: 16°
• Total output: 7100 lm

Construction

• Color: Black
• Housing: High–impact flame–retardant thermoplastic
• Protection rating: IP20

Gobos

• Gobo diameter: 26.8 mm +/– 0.2 mm (1.1 in. +/– 0.008 in.)
• Max. image diameter: 22.0 mm (0.87 in.)
• Gobo thickness: 0.3 – 3.5 mm (0.01 – 0.14 in.)
• Gobo material: Steel, aluminum or borosilicate glass

Installation

• Mounting points: Two quarter–turn brackets for rigging clamps
• Location: Dry location only, must be fastened to surface or structure
• Orientation: Any

Connections

• AC power in/thru: Neutrik PowerCon
• DMX data in/out: 3–pin and 5–pin locking XLR

Electrical

• AC power: 100–240 V nominal, 50/60 Hz
• Typical total power consumption: 300 W
• Power consumption figures are typical, not maximum. Allow for +/–10% variation.

Thermal

• Cooling: Forced air, temperature controlled
• Maximum ambient temperature (Ta max.): 40° C (104° F)
• Minimum ambient temperature (Ta min.): 0° C (32° F)
• Total heat dissipation (calculated, +/– 10%, at full intensity, full white): 1010 BTU/hr.

Physical

• Length: 418 mm (16.5 in.)
• Width: 328 mm (13.0 in.)
• Height: 588 mm (23.2 in.)
• Weight: 18 kg (39.7 lbs.)
