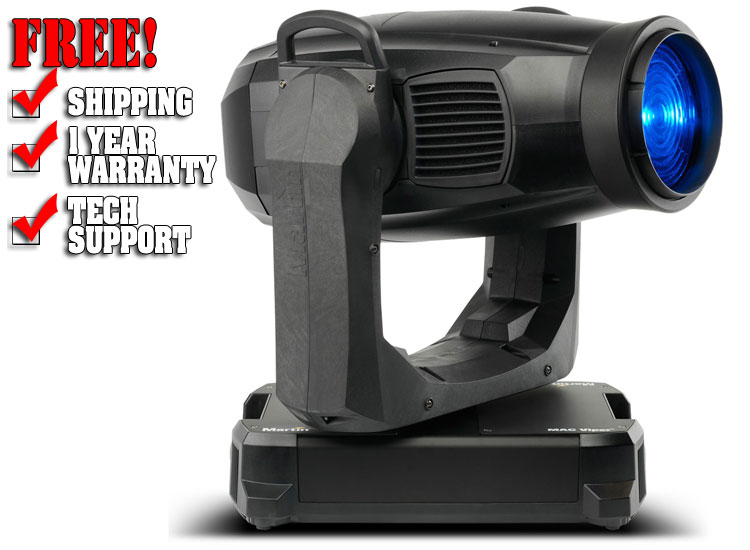

Martin MAC Viper Wash DX 1000-Watt Moving Head Light

Overview

The MAC Viper Wash DX is a full–feature, full–range wash luminaire with a unique internal barndoor system (shutters) that enables designers to shape and control light projection onto stages, performers, scenery, scrims or any set element with great precision. The fixture's internal framing system makes it a highly capable, automated substitute for a conventional daylight Fresnel fixture.

The MAC Viper Wash DX features an outstanding quality of light with unlimited color choices and maintains near full efficiency throughout its entire zoom range with no visible beam jump when zooming from tight to wide. The fixture has adopted the compact form, impressive speed, superior light quality and beautiful colors that the MAC Viper Profile is renowned for and uses the same 1000–watt lamp.

Features:

• 33000 Lumens – Excellent light quality with a uniform field and 6000K color temperature
• 1:5 zoom – Continuous and fastInternal barndoor system – 1 pair of indexing shutters
• CMY – Vibrant color mixing with a superior palette of colors including true reds, rich ambers, primary green and deep blues
• Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
• 7–slot color wheel – Static colors and correction filters for added color choice and bump effects
• Dimmer and shutter – Combined dimmer/shutter system with intensity effects, instant blackout/open and smooth fades
• Iris – Fast and tight iris with adjustable dynamic effects, complementing the barndoor system
• Diverse strobe effects

Dynamic Effects

• Color mixing: CMY, independently variable 0 – 100%
• Color temperature control: CTO, variable 6000 – 3200 K
• Color wheel: 7 interchangeable dichroic filters + open, indexing, continuous rotation, random color
• Beam shaping: Internal barn doors, continuously variable opening, indexed rotation
• Iris: 0 – 100%, pulse effects
• Mechanical dimmer/shutter: 0 – 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout
• Dimming options: Choice of four dimming curves
• Pan: 540°
• Tilt: 268°
• Position correction system: Absolute position monitoring

Control and Programming

• DMX channels: 18/24
• Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX
• 16–bit control: Dimmer, pan, tilt
• DMX compliance: USITT DMX512–A
• RDM compliance: ANSI/ESTA E1.20
• Receiver: Opto-isolated RS–485
• Firmware update: USB memory device or USB/DMX hardware interface over DMX link
