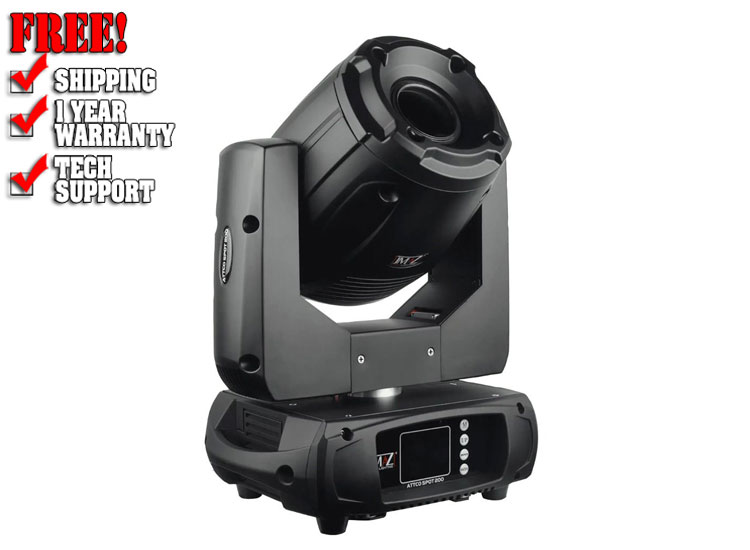

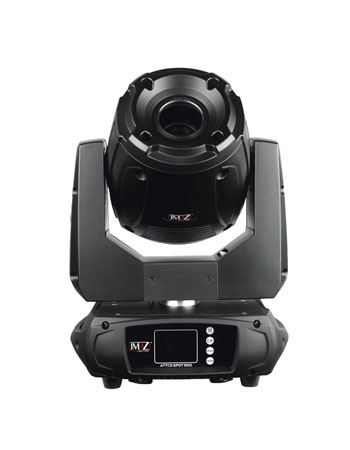

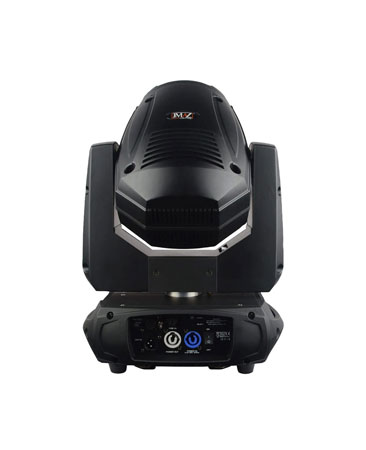

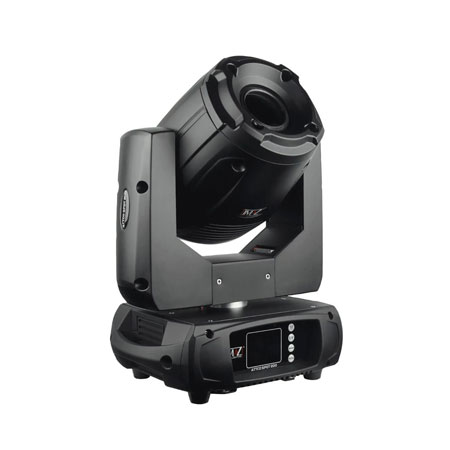

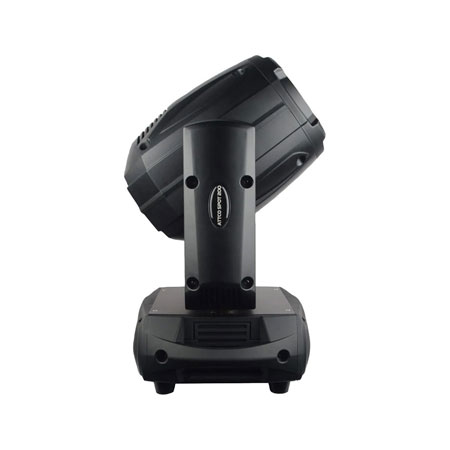

JMAZ Lighting JZ3011 Attco Spot 200 200W LED Moving Head

The JMAZ ATTCO SPOT 200 is a compact size, light weight, full function and high brightness moving head with built-in Wi-MAZ wireless DMX technology, using a 200W LED, optical angle 16 degrees. Fast PAN/TILT scanning, low noise, high accuracy. It has rotating gobo wheel, static gobo wheel, color wheel, 3 facet prism, electronic focusing, 0-100% linear LED dimming and strobe effect at different speeds. Suitable for large-scale concerts, TV studios, mobile performances, night shows, weddings, etc.

Features:

• 1 x 200W White LED.
• 1 Color wheel with 7 colors plus open.
• 1 Rotatable gobo wheel with 6 rotatable and interchangeable gobosplus open with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise.
• DMX512, master-slave and sound activated or auto operation (9 built-in program.)
• Built-in wireless DMX technology.

Specifications

Light Source:

• Source: 200W White LED

Color System:

• Color Wheel: 7 Colors + Open

Body:

• Hardware On-Board: sockets for quick-Lock Omega bracket
• Pan Angle: 630°
• Title Angle: 270°
• Pan/Tilt Resolution: 8 / 16 Bit
• Feedback: Scan position memory, auto reposition after unexpected movement
• Body: High Temperature Engineered Plastic and Cast Aluminum Casing
• Body Colour: Black

Electronics:

• Dimmer: 0-100% Linear Dimmer
• Strobe/Shutter: 25 T/sec
• Operating Temperature: -35° C to 45° C

Electrical:

• Mains Power Supply: AC Mains
• Max Power Consumption: 250W
• Input Voltage: AC90-260V 50/60Hz

Optics:

• Beam Angle: 16°

Dynamic Effect:

• Prism: 3 Facet
• Rotating Gobos: 6 + Open
• Static Gobos: 8 + Open

Control:

• Protocols: DMX512, W-DMX, Wi-MAZ Wireless DMX
• DMX Channels: 13/15 Channel Modes
• Wireless Control: Wi-MAZ Wireless DMX, W-DMX, RF Remote
• Display: 4" TFT LCD Display
• Firmware Upgrade: Yes, USB-DMX Interface, not included.

Physical:

• IP Rating: 20
• Cooling: Fan
• Pan/Tilt:8/16 bit smooth
• Data Connection: DMX, Wireless DMX
• Power Connection: Power-CON
• Dimensions: 12.1" x 8.8" x 16.5"
• Weight: 22.9 lbs

WHAT'S IN THE BOX

Each Attco Spot 200 Retail Box Includes:

• (1) JMAZ Lighting JZ3011 Attco Spot 200 200W LED Moving Head
• (1) User Manual
• (2) Omega Brackets
• (1) 3ft 3-pin DMX Cord
• (1) 3ft PowerCON Cord
• (1) RF Remote
