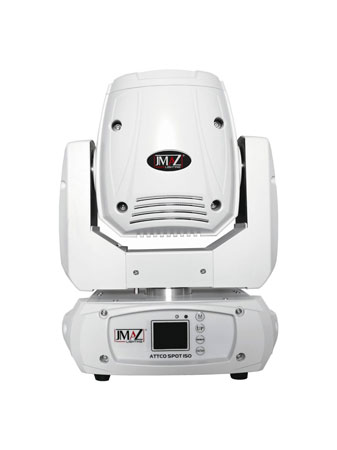

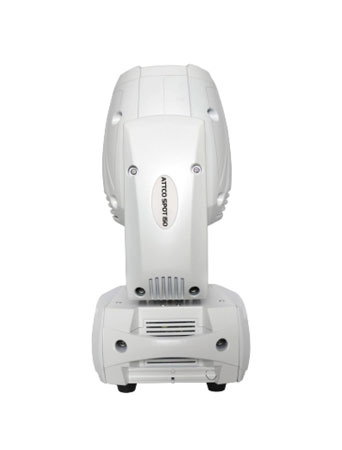

JMAZ Attco Spot 150 150W LED Moving Head - White Finish

The JMAZ ATTCO SPOT 150 comes with a 150W LED that produces a very high light output through a specific 11° optic system. The fast and quiet PAN/TILT movement. It offers a full complement of professional characteristics, including a rotating gobo wheel (6 interchangeable gobos plus open), a static gobo wheel(10 gobos plus open) a color wheel (8 colors plus open), a 3-facet prism, motorized linear focus, 0-100% linear LED dimmer, variable speed shutter/strobe.

Features:

• 1 x 150W White LED.
• Color wheel with 8 colors plus open.
• 2.5-15m electronic focus.
• 3-Facet prism with variable speed and direction.
• 1 Rotatable gobo wheel with 6 rotatable and interchangeable gobos plus open.
• DMX512, master-slave and sound activated or auto operation.

Specifications

Light Source:

• 150W White LED

Color System:

• Color Wheel: 8 Colors + Open

Body:

• Hardware On-Board: sockets for quick-Lock Omega bracket
• Pan Angle: 630°
• Title Angle: 270°
• Pan/Tilt Resolution: 8 / 16 Bit
• Feedback: Scan position memory, auto reposition after unexpected movement
• Body: High Temperature Engineered Plastic and Cast Aluminum Casing
• Body Colour: White

Electronics:

• Dimmer: 0-100% Linear Dimmer
• Strobe/Shutter: 20 T/sec
• Operating Temperature: -35° C to 45° C

Electrical:

• Mains Power Supply: AC Mains
• Max Power Consumption: 220W
• Input Voltage: AC90-260V 50/60Hz

Optics:

• Beam Angle: 11°

Dynamic Effect:

• Prism: 3 Facet
• Rotating Gobos: 6 + Open
• Static Gobos: 10 + Open

Control:

• Protocols: DMX512, W-DMX, Wi-MAZ Wireless DMX
• DMX Channels: 13/15 Channel Modes
• Wireless Control: Wi-MAZ Wireless DMX, W-DMX, RF Remote
• Display: 2.4" TFT LCD Display
• Firmware Upgrade: Yes, USB-DMX Interface, not included.

Physical:

• IP Rating: 20
• Cooling: Fan
• Pan/Tilt: 8/16 bit smooth
• Data Connection: DMX, Wireless DMX
• Power Connection: Power-CON
• Dimensions: 10" x 7" x 14"
• Weight: 16.3 lbs.

WHAT'S IN THE BOX

Each Attco Spot 150 W Retail Box Includes:

• (1) JMAZ Lighting JZ3024 Attco Spot 150 150W LED Moving Head - White Finish
• (1) User Manual
• (2) Omega Brackets
• (1) 3ft 3-pin DMX Chord
• (1) 3ft PowerCON Chord
• (1) RF Remote
