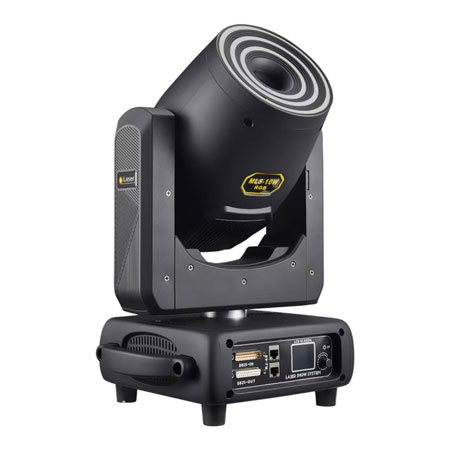

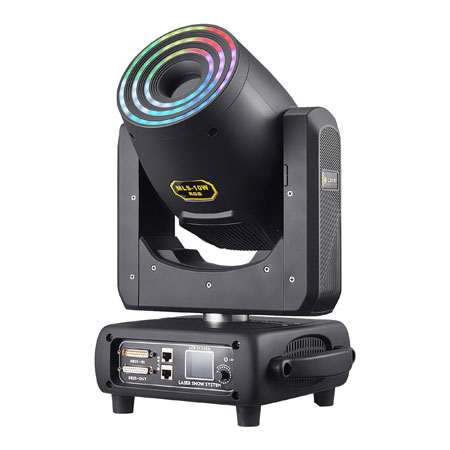

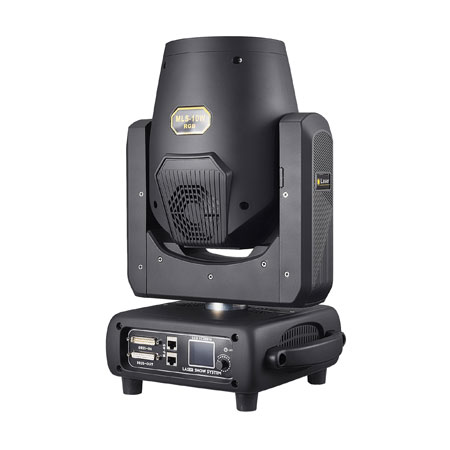

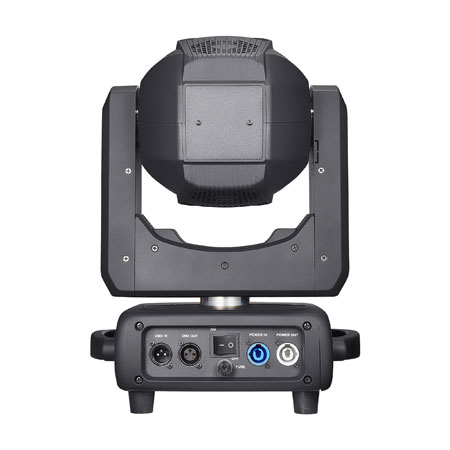

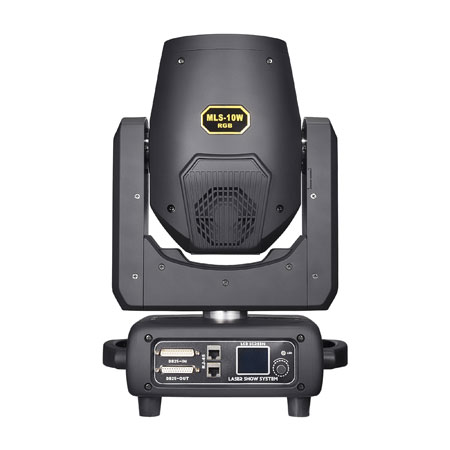

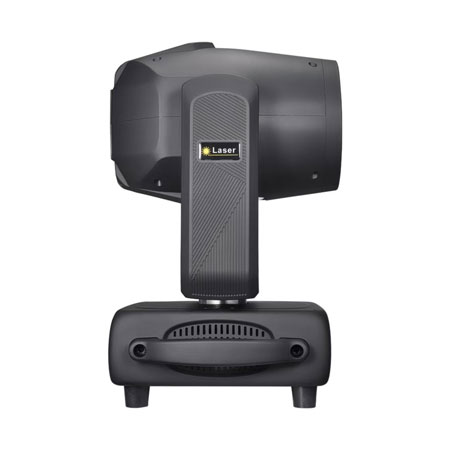

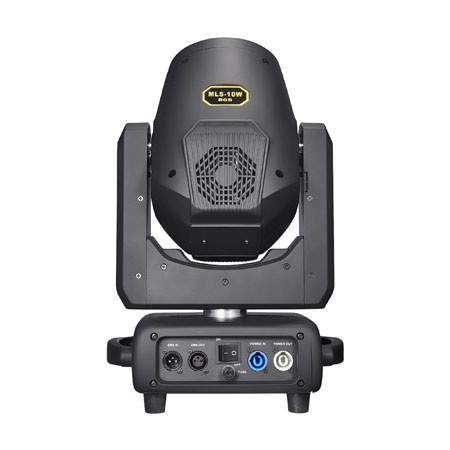

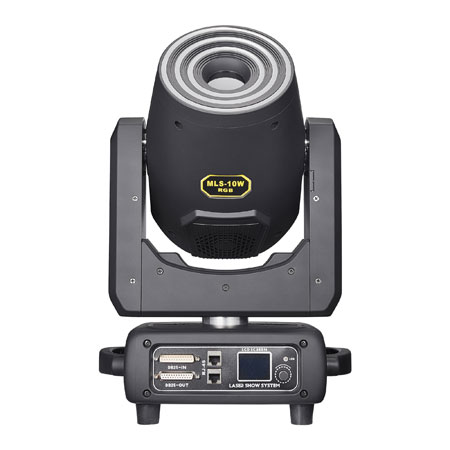

Eliminatrix 10w Color Laser Moving Head

• Rated voltage: AC110-220V
• Shaking head laser+LED aperture
• Rated frequency: 50-60Hz
• Rated power: 300W
• Laser color: RGB full-color
• Laser power: RGB 10W/RGB 5W
• Laser light source: R3w/638nm G3w/525nm B4w/447nm/(5W-R1,G1,B3)
• Laser pattern: 256 laser animation patterns
• Modulation signal: TTL modulation (analog modulation)
• Scanning system: galvanometer scanning 30KPPS
• Scanning angle: plus or minus 20 degrees
• Stepper motor: 2 two-phase 57 motors
• Horizontal: 540 degrees Vertical: 270 degrees
• LED dyeing configuration: Three layer wheat jazz light strip
• Control method: DMX512, Voice control, self-propelled, computer ILDA interface, Ethernet Art Net,
• Control channel: 20/25 channels
• DMX special effects: single pattern mode, with functions such as pen breakage, flicker, rotation, movement, scrolling, segmentation, gradient drawing, color change, and resizing.
• Function: Can be controlled by laser software such as pangolin QSFB3/FB4 or Phoenix.
• The ILDA control adopts an automatic electronic transfer switch, which has scanning system error protection and laser shutdown protection.
• Instructions for use: The ambient temperature should be controlled between 0~35°C. A dry and dust-free environment can reduce laser power attenuation and extend the lifespan of the lamp
• Suitable venues: nightclubs, bars, nightclubs, concerts, advertising promotions, etc
• Cooling system: fan forced cooling of Shaking head laser+LED dye light
• Bare lamp size: 29 * 24 * 45cm
• Net weight: 10kg
• Packaging size: 50 * 35 * 37cm
• Gross weight: 12kg
