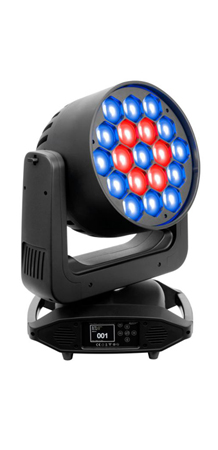

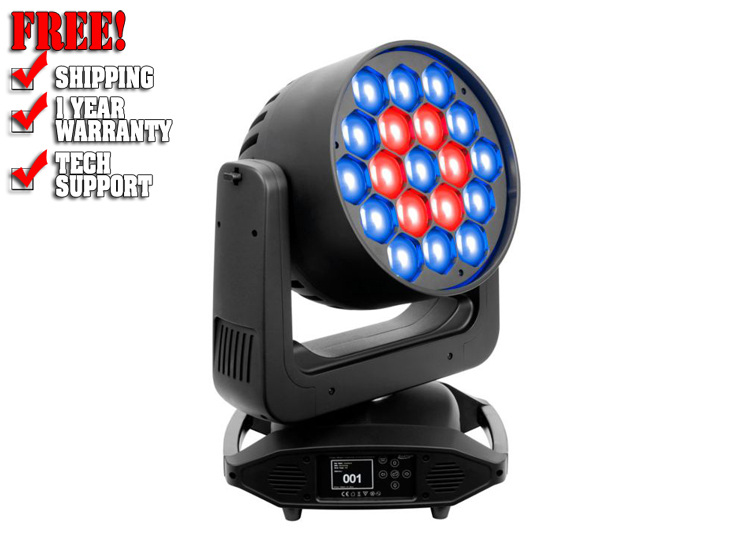

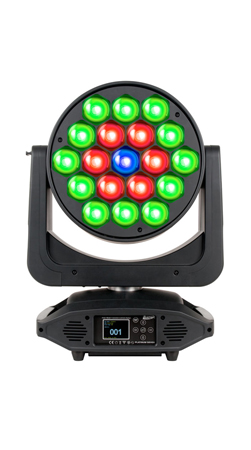

Elation Platinum Seven

Features

• Patent Pending High Power 7 Color Wash Luminaire
• (19) 25W Multi-Chip LEDs (RGBW+Amber+Cyan+UV)
• 5° - 50° Beam Angle Zoom Range
• Advanced Cooling and Movement Control Systems
• Silent Mode - Reduces Fan Noise by 25% Decibels
• (3) Pixel Ring Control and Color-Pixel Ring Macro Effects
• CRI Presets (85, 90, 95)
• Linear Color Temperature Presets (2,700 - 8,000K)
• Linear Dimming and Selectable Dimming Curves
• Flicker Free Operation for TV and FILM
• Adjustable Refresh Rate Frequency and GAMMA
• DMX, RDM, KlingNET™, Art-NET, and sACN Support

Specifications

SOURCE

• (19) 25W Multi-Chip LEDs
• 50,000 Hour Average LED Life**

**May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

• 38,500 LUX 3,577 FC @3.3' (1m) (5° Min Zoom) Full ON
• 6,670 LUX 620 FC @3.3' (1m) (50° Max Zoom) Full ON

EFFECTS

• 5° - 50° Beam Angle Zoom
• (3) Zone Ring Control
• Color-Pixel Ring and Color Preset Macros
• CRI Presets (85, 90, 95)
• Linear Color Temperature Presets (2,700 - 8,000K)
• Electronic Strobe (1-25 fps)
• Linear Dimming 0-100% + Selectable Dimming Curves

COLOR

• RGBW + AMBER + CYAN + UV (7 Colors)
• Even and Smooth Color Mixing

CONTROL / CONNECTIONS

• (3) DMX Channel Modes (24 / 31 / 40)
• Adjustable LED Refresh Frequency
• Adjustable LED Gamma Brightness
• Silent Mode
• RDM (Remote Device Management)
• 6 Button Touch Control Panel
• Full Color 180° Reversible LCD Menu Display
• 8 / 16 Bit Resolution Adjustable Movement

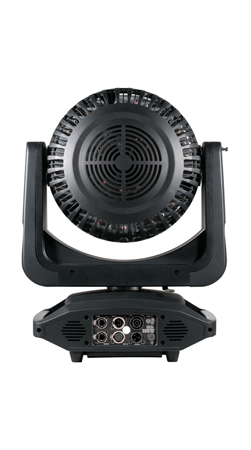

• 5pin DMX In/Out
• RJ45 Ethernet In/Out (Art-NET, sACN)
• powerCON TRUE1 Power In/Out
• With Wired Digital Communication Network

SIZE / WEIGHT

• Length: 16.5" (418.1mm)
• Width: 11.2" (284.4mm)
• Vertical Height: 22.0" (558.9mm)
• Weight: 47.0 lbs. (21.3 kg)

ELECTRICAL / THERMAL

• AC 100-240V - 50/60Hz
• Max Power Consumption: 600W
• 14°F to 113°F (-10°C to 45°C)

APPROVALS / RATINGS

• CE | cETLus | IP20
