Highlights

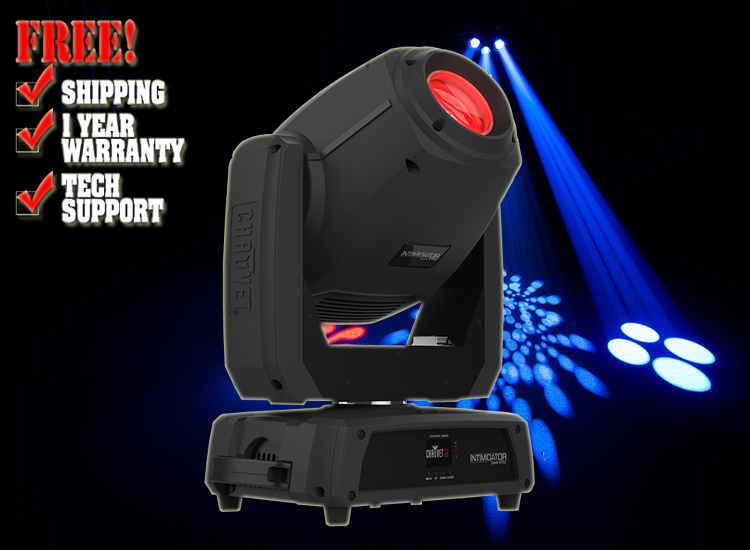

• Extremely bright, 250 W LED moving head spot designed for large events
• Dual rotating prisms split the beam for great effects and cover a larger area
• Dual gobo wheels allow for gobo morphing and amazing mid-air projections
• Motorized zoom for short- or long-throw situations
• Unique ¼-turn hanging bracket allows for single or dual clamp mounting options
• Emit crisp projections at almost any distance using the motorized focus
• Beams always remain on the dance floor using the built-in, innovative Totem mode
• Convenient, wireless non-DMX control using the optional IRC-6 remote
• Set, save, and recall 1 scene manually, directly from the full-color LCD display

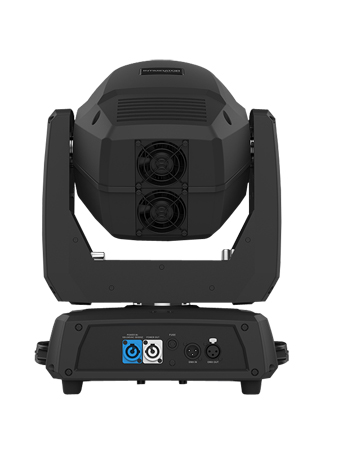

• powerCON®-compatible power input/output connections for power linking

Specifications

• DMX Channels: 10 or 16
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors: 7 + white, split colors, continuous scroll at variable speeds
• Gobos: (1): 7 + open (6 metal + 1 glass), rotating, interchangeable, indexing, continuous scroll at variable speeds
  (2): 8 + open, continuous scroll at variable speeds
• Light Source: 1 LED (white) 250 W, (16.3 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• PWM Frequency: 2 kHz
• Illuminance: (13°): 106,300 lux @ 2 m
  (28°): 23,680 lux @ 2 m
  (13°): 14,290 lux @ 5 m
  (28°): 3,741 lux @ 5 m
• Power Linking: 2 units @ 120 V; 4 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 380 W, 3.4 A @ 120 V, 60 Hz
  378 W, 1.9 A @ 230 V, 50 Hz
• Gobo Size: 25 mm outside, 21 mm image, 1 mm max thickness
• Zoom Angle: (motorized): 13° to 28°
• Weight: 36.2 lb (16.5 kg)
• Size: 14.3 x 9.8 x 20.9 in (363 x 250 x 531 mm)
• Approvals: CE, MET
• Prism: (1): 6-facet round, bidirectional rotation at variable speeds
  (2): 6-facet linear, bidirectional rotation at variable speeds
• Optional Controllers: IRC-6
• Intimidator Spot 475Z Quick Reference Guide
• Intimidator Spot 475Z User Manual

WHAT'S INCLUDED

• Intimidator Spot 475Z
• Power cord
• Hanging bracket
