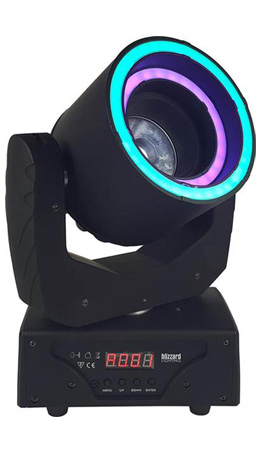

Features

• 8° beam effects via 60W RGBW 4-in-1 LED
• 2x LED rings with 60pcs RGB 3-in-1 SMD5050 LEDs
• Compact and lightweight
• Independent DMX control of beam and LED ring effects
• Pan: 540/630°, Tilt: 200° (8-16 Bit Resolution)
• Built-in auto/sound active programs
• 0-100% linear LED dimmer
• Pan/tilt invert
• 1-25Hz strobe
• User selectable 14/23-channel DMX modes
• 3-pin DMX In/Out connections
• powerCON® compatible AC power In/Out

Specifications

Optical

• Light Source: 1x 60W RGBW 4-in-1 LED + 60x RGB 3-in-1 SMD5050 LEDs (rings)
• Beam Angle: 8°
• Luminous Intensity: 77,372 Lux @ 1M 15,330 Lux @ 2.5M 3,747 Lux @ 5M

Movement

• Pan: 540/630° (8-16 bit resolution)
• Tilt: 200 degree (8-16 bit resolution)

Weight & Dimensions

• Width: 10.5" (265 mm)
• Depth: 6.6" (168 mm)
• Height: 11.9" (301 mm)
• Weight: 11 lbs. (5 kg)

Control

• Protocol: USITT DMX-512
• 14/23-channel DMX modes
• Standalone, M/S, Sound Active, Color Preset
• 3-pin XLR In/Out connections
• 4-button LCD control panel

Power & Current

• 100-240VAC, 50-60 Hz
• Power Consumption: 106W, .89A, PF: .98
• Fuse: 2A, 250V

Warranty

• 2-year limited warranty, does not cover malfunction caused by damage to LEDs
