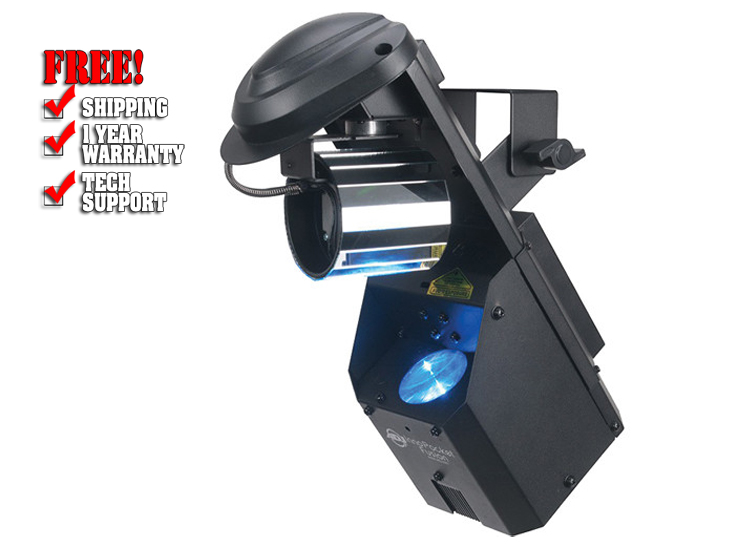

American DJ Inno Pocket Fusion LED Barrel Mirror LED Scanner Light

Overview

The American DJ Inno Pocket Fusion LED Barrel Mirror LED Scanner Light features a 12W LED barrel mirror scanner with a 4.9mW green laser for a an energy driven lighting effect. This scanner is designed for any mobile entertainer, small and mid-size stages, nightclub, bar, lounge, bowling alley, and entertainment centers.

This fixture features 12 built-in shows and pan/tilt inversion modes for an exciting non-DMX lightshow. It also has 3 operational modes, 8 DMX channels and 5 dimming curves to help lighting designers create custom, one of a kind DMX light shows. The fast mirror speed and high quality precision stepper motors react strongly to high-energy music, while the barrel mirror produces multiple LED beams and laser beams that shoot around a room for a unique effect.

Attributes

• 12W LED DMX barrel mirrored scanner + green laser (2-FX-1)
• 8 colors + white
• 4.9mW green laser diode
• 3 Operational modes: DMX, Sound Active and Internal Show control modes
• 8 DMX channels
• 12 built-in shows
• Beam angle: 5 degrees
• X/Y mirror movement
• Stepper motors with micro stepping
• 5 Selectable dim curves
• Shutter: pulse effect; random strobe slow to fast
• Dimming: 0 - 100%
• Pan/Tilt inversion mode
• IEC AC in/out on rear to daisy chain power
• Hanging yoke and safety hook included
• Optional IR wireless remote control
• Low power consumption
• Multi-voltage operation
• LED source: 12W White LED source rated at approximately 50,000 hr

Specifications

• Light Source:12 W white LED
• Lamp Life:Approximately 50,000 hr, 4.9 mW green laser diode
• DMX:8 DMX channels
• Programs and Effects:12 Built-in shows 3 Operational modes: DMX, Sound Active, and Internal Show Control mode Shutter: Pulse effect; random strobe slow to fast
• Beam Angle:5°
• Movements:X/Y mirror movement Stepper motors with micro stepping Pan/Tilt Inversion mode
• Dimming Range:0 - 100% 5 Selectable dimming curves: Standard, Stage, TV, Architectural and Theater
• Connectors:1x DMX 3-pin XLR IEC AC in/out
• Power Linking:Up to 19 units @ 120 V Up to 35 units @ 230 V
• Power Requirements:100-240 VAC, 50/60 Hz
• Power Consumption:36 W full on
• Remote Control:Optional ADJ UC IR
• Dimensions: 13.5 x 5.25 x 7.0" (340 x 132 x 177 mm)
• Weight:8.0 lb (3.6 kg)

Packaging Info:

• Package Weight: 9.45 lb
• Box Dimensions (LxWxH):17.0 x 10.0 x 8.5"

Highlights

• 13.5 x 5.25 x 7"
• DMX, Sound Active, Show Control Modes
• 12 Built-in Light Shows
• 5 Degree Beam Angle
• 8 DMX Channels
