ADJ Vizi CMY 16RX

CURRENTLY OUT OF STOCK

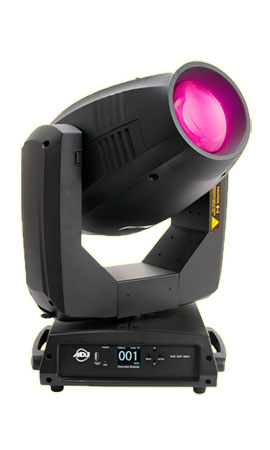

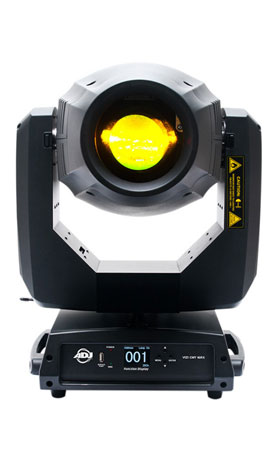

ADJ Vizi CMY 16RX

Overview

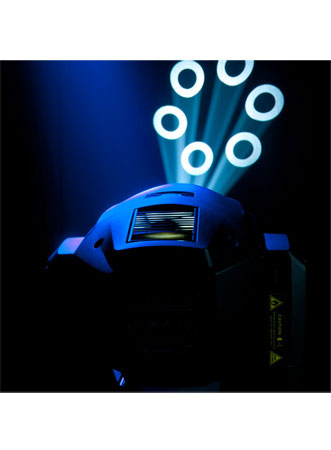

A true Spot/Beam/Wash hybrid Moving Head fixture, the ADJ Vizi CMY 16RX features dual Prism Layering, GOBO Morphing of dual gobo wheels, motorized zoom and motorized focus. Other professional features include: Frost filter to turn the hard edge beam to a wash, 6 & 8-facet rotating prisms, stepper motors for quick, precise movement. the Vizi CMY 16RX offers a CMY color mixing so designers can custom make colors to create a one-of-a-kind lightshow.

The Vizi CMY 16RX Moving Head fixture is powered by the revolutionary Philips® Platinum 16R discharge lamp technology (8000°K, 1,500 hr). The powerful Platinum 16R has an output comparable to a 575W fixture, with double the output of a 250W fixture. It also offers a flat, even spot field and even more saturation of colors. The Vizi Hybrid 16RX is much faster than previous ADJ moving heads because it is much lighter in weight and more compact than other moving heads in its class.

Specifications

Optical:

Light Source: 330W Philips Platinum 16R MSD
Color Temperature: 8000 K
Life Expectancy: 1,500 Hrs.
Beam Angle: 2.3 ~ 10-degrees (Beam mode); 5 ~ 22-degrees (Spot mode); 22 ~ 63-degrees (Wash mode)
Zoom Range: 6 ~ 22-degrees

Specifications:

Colors: 9 colors plus white
Full CMY Color Mixing
Gobos: 2 separate wheels - Wheel 1: 15 static GOBOs plus spot, Wheel 2: 8 replaceable GOBOs
Dimming: electronic 0%- 100%
Shutter: motorized
Zoom: motorized
Focus: motorized
Frost: frost filter + wash effect
Prism: 6-facet linear & 8-facet circular w/ macros, rotating & morphing
Strobe: electronic
Strobe Rate: 0.3-7HZ
dB Rating @ 1Meter: Front: 54; Back: 54.7; Left: 53; Right: 53; Top: 55.2

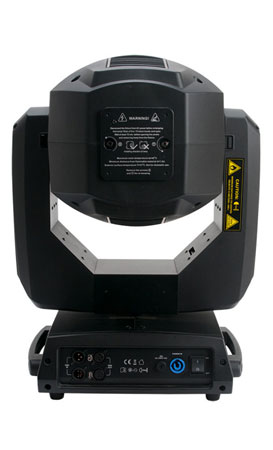

Connections:

Power Input: powerCON
Data: 3 & 5-pin DMX In/Out

Control:

Control Protocol: DMX 512
2 DMX Channel Modes: 22 or 24 channels
DMX Modes: 1 mode
On board 4-Button LCD DMX display

Electrical:

Power Consumption: 515W
Power draw @120V: 5.2 amps
Power draw @ 220V: 2.44 amps
Multi-voltage: 100-240V, 50/60Hz

Dimensions / Weight:

Dimensions (LxWxH): 25" x16.25" x 13" / 639x413x326mm
Weight: 52 lbs. / 23.2 kg.

Certifications:

ETL Pending
IP Rating: IP20: Dry area, No liquids

Whats Included:

(2) omega clamps
(1) powerCON to Edison
Safety Cable
Manual
