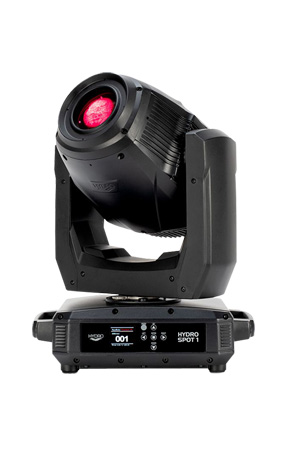

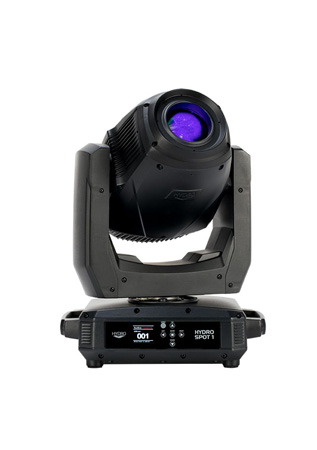

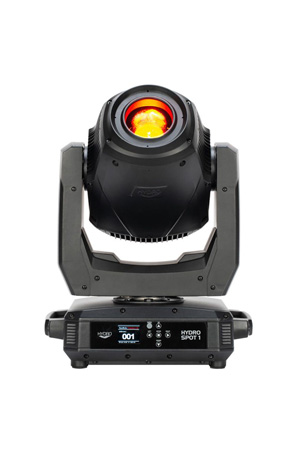

An extensive feature set provides lighting designers using the Hydro Spot 1 with a wealth of creative potential. This starts with motorized zoom, allowing for a variable beam angle of 12° ~ 23°, which is paired with motorized focus to ensure pattern projections remain sharp regardless of distance. The fixture features two independent color wheels, each loaded with 8 dichroic colors, including CTO, CTB and UV filters. It also features a separate GOBO wheel, which has 6 slots for replaceable, rotating glass or aluminum GOBO patterns. Two rotating prisms (5-facet linear & 6-facet circular) allow for the creation of stunning aerial effects, while two frost filters (medium and heavy) allow for blurring the edges of GOBO patterns and creating a wash output, respectively.

Specifications:

Light Source:

• 200W Cool White LED Engine (50,000 hr.)

Features:

• Wifly EXR (Wireless DMX)
• Motorized Focus
• Motorized Zoom: 12° ~ 23°
• 2 Frost Filters (Heavy and Medium)
• 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
• 0-100% smooth dimming
• Various strobe speeds
• 2 cooling fans

Color Wheels:

• (2) Color wheels
• 8 dichroic colors + white on each wheel (includes CTO, CTB and UV filters)

GOBO Wheels:

• (1) Wheel with 6 Rotatable GOBOs
• All GOBOs are replaceable
• GOBO Shake Effect
• Aluminum GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)
• Glass GOBO size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)

Prism Wheel:

• Prism Wheel 1: Rotatable 6-facet Circular
• Prism Wheel 2: Rotatable 5-facet Linear
• Both Prisms are indexable

Frost Filters:

• Frost 1: Heavy frost for wash effect
• Frost 2: Medium frost creates lightly blurred edges for Gobo and Prism FX

Control:

• 3 DMX Channel Modes: 17/20/22
• Wifly EXR (Wireless DMX)
• Color LCD display with 6-button function menu
• Control Mode: DMX512 or internal programs
• 6 Dim Modes: Standard, Stage, TV, Architectural, Theatre, Stage2
• 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
• Selectable LED Refresh Rates (900 Hz~25K Hz)
• 0-100% smooth dimming
• Various strobe speeds
• RDM (Remote Device Management)
• With Wired Digital Communication Network

Pan/Tilt:

• Pan: 630 degrees
• Tilt: 270 degrees

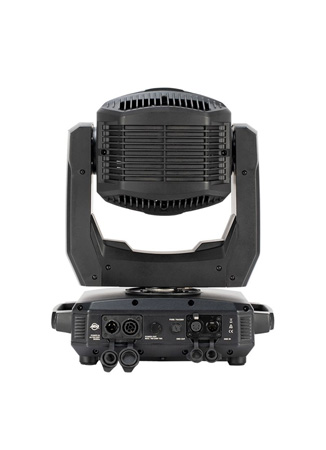

Connections:

• DMX Connections: 5-pin XLR In/Out
• Power Connections: IP65 PowerLock In/Out to daisy chain power

Electrical:

• Multi-voltage operation: 90-240V, 50/60Hz
• Max power consumption: 280W

Dimensions & Weight:

• Dimensions (LxWxH): 9.49" x 14.57" x 19.21" (241x370x488mm)
• Weight: 35.2lbs (16kg)

What's Included:

• Omega Bracket
• 1.83M locking power cable
• User Manual

Approvals / Rating:

• ETL (Pending) / CE Certified
• IP65 with Marine Coated Exterior and conformal coated PCBs
