ADJ Focus Spot Three Z

Description

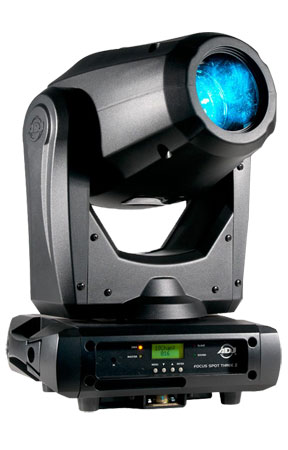

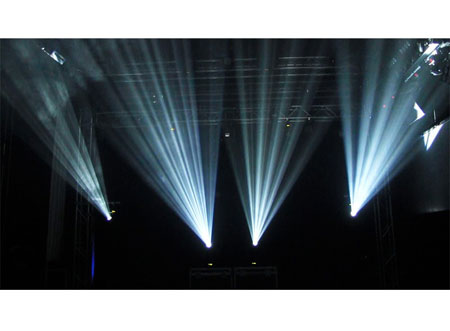

The ADJ Focus Spot Three Z is a 100W LED Moving Head with motorized focus and motorized zoom allowing for a variable beam angle from 12 ~ 18-degrees. In addition, ADJ has fitted the Focus Spot Three Z with one rotating GOBO wheel, one fixed GOBO wheel and one color wheel, letting users generate unique patterns and effects in a series of vibrant hues. There are two 6-facet prisms (one circular and one linear), enabling spellbinding multi-beam effects capable of filling wide spaces with color and movement.

The Three Z is extremely versatile and has everything clubs, theaters, churches, concert productions and lighting professionals are looking for in a professional LED spot Moving Head. It has 18 & 21 DMX channel modes, Pan/Tilt Inversion, 16-Bit Fine Pan/Tilt, 3-pin DMX I/nOut, PowerCon In/Out power connectors, and a 4-Button DMX LCD menu with 180-degree inverse view mode.

Features:

• High Output 100W LED Moving Head spot with motorized zoom
• Motorized Focus
• Motorized Zoom: 12 ~ 18-degree beam angle
• 3 Operational Modes: Sound Active, Show Mode, & DMX Controlled
• 4 Built-in lighting shows
• Electronic Dimming: 0% - 100%
• Electronic Strobe/Pulse effect; random strobe slow to fast
• 5 Dimming Curves
• Pan/Tilt Inverse Mode for contrasting movement when fixtures are linked together
• Fast Pan Tilt Movement
• Gobo Shake effect
• Two 6-facet rotating prism effects (one circular & one linear)
• 16-Bit Fine Pan/Tilt control
• Stepper motors with micro stepping
• 3-pin XLR In/Out
• 4-Button DMX LCD menu with 180° Inverse View mode
• Includes Omega bracket for truss mounting
• Fan cooled

Specifications:

• Light Source: 100W High Output LED
• LUX : 12 Degrees: 13090 @ 3M / 18 Degrees: 6300 @ 3M
• Variable beam angle: 12~ 18-degree beam angle
• 18 & 21 DMX channel modes
• 8 Colors + Spot
• 2 Independent Gobo Wheels: Gobo Wheel 1 has 7 Static Gobo's + Spot; Gobo Wheel 2 has 6 Rotating Gobo's + Spot
• Interchange Gobos on wheel 2: 23.8 mm Gobo Size; 20mm Viewable
• Pan: 630-degree; Tilt: 270-degree

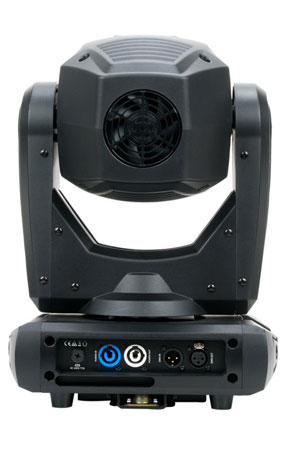

• PowerCon AC In/Out on rear to daisy chain power (up to 3 Focus Spot Three Z's @ 120V and 6 Focus Spot Three Z's @ 230V )
• Long Life LED (Rated at approximately 50,000 hrs)
• Multi-voltage Operation: 100-230V, 50Hz/60Hz
• Power Consumption: 230W
• Dimensions (LxWxH): 7.25" x 11.25" x 19.75"/ 183 x 284 x 489mm
• Weight: 26 lbs. /12 kgs.
