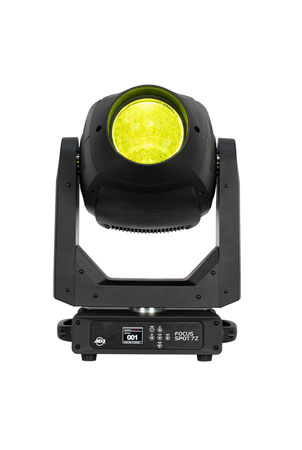

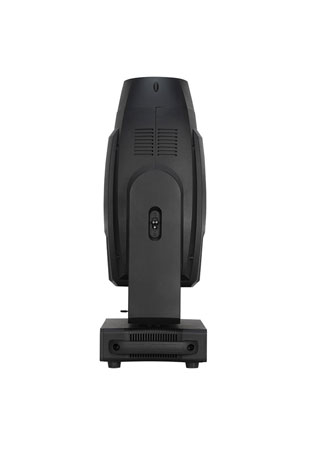

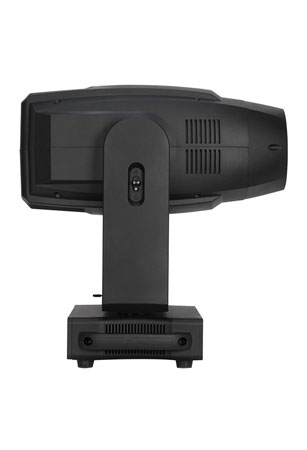

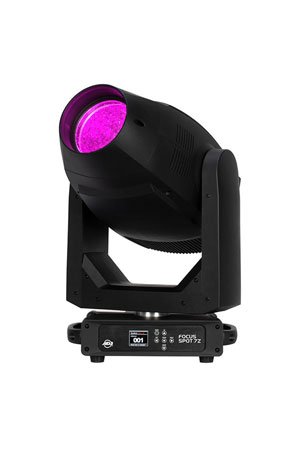

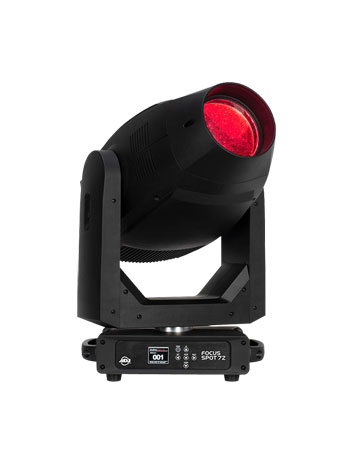

ADJ Focus Spot 7Z

Offering an impressive output of 20,000 Lumens, the ADJ Focus Spot 7Z is a powerful and feature-packed moving head spot luminaire capable of producing beam, spot and wash effects. Its efficient 420W LED light engine and superior optics allow the fixture to deliver crisp and even projections, while its extensive collection of integrated beam-shaping tools provide lighting designers with immense creative potential. These include full CMY + CTO color mixing; an animation wheel; motorized zoom (6° ~ 48°), focus and iris; as well as twin GOBO wheels, rotating prisms and frost filters.

Part of ADJ's popular Focus Series of LED-powered moving head luminaires, the Focus Spot 7Z is a potent and feature-rich spot fixture. Its light source is an efficient 420W white (8,000K) LED engine, which has an average operational life of 20,000 hours. Focused through precision-engineered optics, it allows the fixture to generate a bright, punchy and even output of 20,000 Lumens.

An exhaustive collection of beam-shaping tools is packed into the Focus Spot 7Z, equipping lighting designers to fully unleash their creative potential. This begins with an advanced color selection system which combines a variable CMY and CTO (2,700K to 8,000K) color mixing system with a color wheel that features seven dichroic slots (including High CRI and CRB filters).

The fixture features two independent GOBO wheels, each of which incorporate seven slots for interchangeable, indexed-rotating patterns. In addition, it also incorporates an animation wheel with indexed rotation as well as two separate rotating prisms (4-facet circular and 6-facet linear). Motorized zoom (6° ~ 48°), focus and iris are integrated into the optical system as are two separate frost filters (Light to blur GOBO patterns and Heavy to generate a wash output).

Specifications:

Light Source:

• 420W White LED Engine
• 20,000 Hour Average LED Life

PHOTOMETRIC DATA

• 20,000 Total Lumens
• 8,000K, >73CRI (without CRI Filter)
• 7,700K >85CRI (with CRI Filter)
• 56,513 LUX @16.4' (5m) (6° Beam)
• 1,585 LUX @16.4' (5m) (48° Beam)

EFFECTS

• 4-Facet Circular & 6-Facet Linear Rotating Prisms
• 2 Frost Filters (Light & Heavy)
• Animation Wheel (Rotatable and Indexable)
• Motorized Zoom (6° ~ 48°)
• Motorized Focus
• Motorized Iris
• Electronic Dimming & Strobe (1-20Hz)

COLOR

• Full CMY color mixing
• Variable CTO (2,700K to 8,000K)
• Colors Wheel with 7 dichroic slots (Includes High CRI and CTB Filters)
• CMY and Color Wheel preset macros

GOBOS

• (2) Gobo Wheels
• #1 - (7) Interchangeable Rotating-Indexing Glass Gobos
• #2 - (7) Interchangeable Rotating-Indexing Glass Gobos

CONTROL / CONNECTIONS

• (3) DMX Channel Modes (30 / 34 / 45)
• DMX512, ArtNet and sACN protocols
• Aria XT Wireless DMX
• RDM (Remote Device Management) compliant
• 6 Button Touch Control Panel
• Full Color 180° Reversible LCD Menu Display
• 8 / 16 Bit Resolution Adjustable Movement

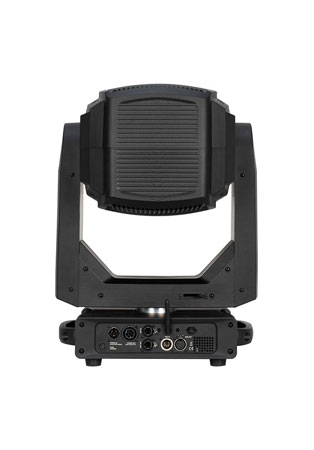

• 5-pin XLR DMX In/Out
• Locking In/Out power connections
• With Wired Digital Communication Network

PAN / TILT

• Pan: 540-degrees
• Tilt: 270-degrees
• Pan & Tilt Locks

SIZE / WEIGHT

• Length: 14.73" (374mm)
• Width: 9.22" (234mm)
• Vertical Height: 24.81" (630mm)
• Weight: 51.7 lbs. (23.45kg)

ELECTRICAL / THERMAL

• AC 100-240V - 50/60Hz
• Max Power Consumption: 524W
• Max ambient temperature: 14°F to 113°F (-10°C to 45°C)
• Max housing temperature: 136°F (58°C)

TECHNICAL DATA

• DB Rating @ 3ft.: 49dB
• BTU: 0.53
• BTU/H: 1,909.60

APPROVALS / RATINGS

• CE | ETL (Pending)
• IP20

INCLUDED ACCESSORIES

• Locking Power cable

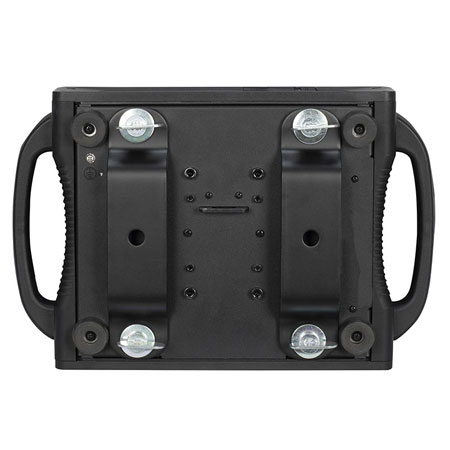

• 180mm Omega brackets (x2)
