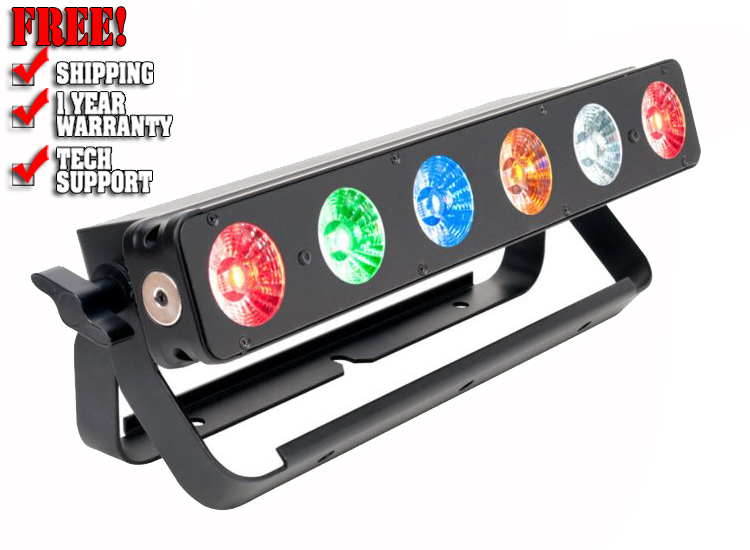

Elation Professional SIXBAR 500

Features

• 30° Beam Angle
• ArtNet and KlingNet Support
• RDM - Remote Device Management
• Individual LED Control
• Variable Dimming Curve Modes
• Multiple Unit Power Linking
• Rugged Die-Cast Aluminum Exterior
• Flicker Free Operation for TV and FILM

Specifications

• SOURCE
  • (6) 12W 6-in-1 RGBAW+UV LEDs
  • 100,000 Hour Average LED Life
• PHOTOMETRIC DATA
  • 6,500 LUX 604 FC @3.3' (1m) (30° Full ON)
  • 1,934 LUX 180 FC @6.6' (2m) (30° Full ON)
  • 901 LUX 84 FC @9.8' (3m) (30° Full ON)
  • 508 LUX 47 FC @13.1' (4m) (30° Full ON)
  • 318 LUX 30 FC @16.4' (5m) (30° Full ON)
  EFFECTS
  • Strobe and Chase Effects
  • Individual LED Control
  • Variable and Selectable Dimming Curves

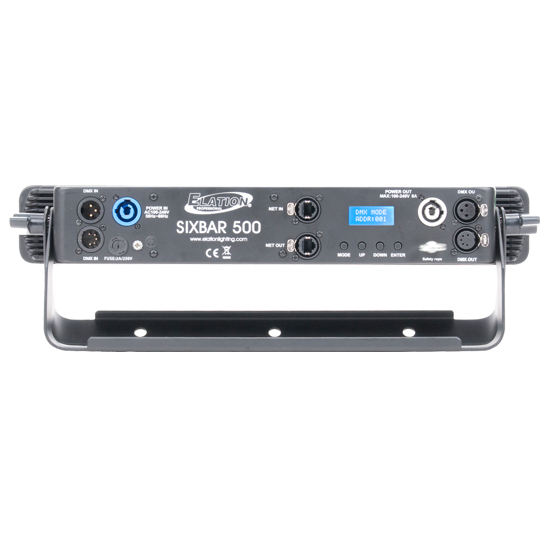

• CONTROL / CONNECTIONS
  • 8 DMX Channel Modes (6 / 7 / 11 / 13 / 18 / 36 / 39 / 43)
  • 4 Button Control Panel and LCD Menu Display
  • ArtNet + KlingNET Protocol Support
  • RDM (Remote Device Management)
  • (2) etherCON Ports
  • 3pin and 5pin DMX In/Out
  • powerCON Power In/Out
  • With Wired Digital Communication Network
• SIZE / WEIGHT
  • Length: 17.7" (450mm)
  • Width: 8.1" (206.4mm) *with included glare shield
  • Vertical Height: 6.1" (155mm)
  • Weight: 9.0 lbs. (4.1 kg)
• ELECTRICAL / THERMAL
  • AC 110-240V - 50/60Hz
  • 93W Max Power Consumption
  • Power Linking: 11pcs @110V / 25pcs @240V
  • 5°F to 113°F (-15°C to 45°C)
  • UV Wavelength: 395nm

INCLUDED ITEMS

• powerCON Cable

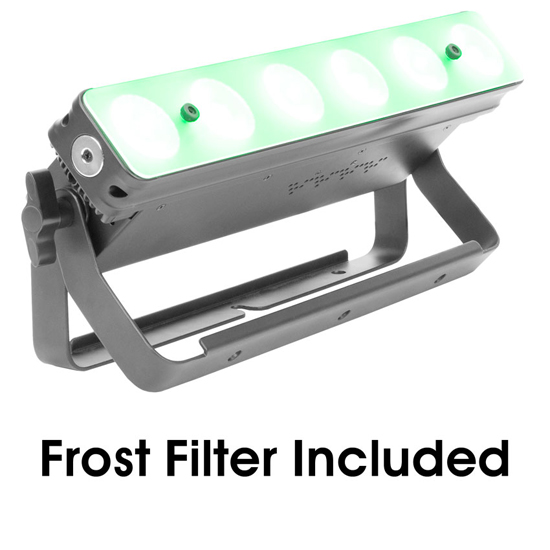

• Frost Filter

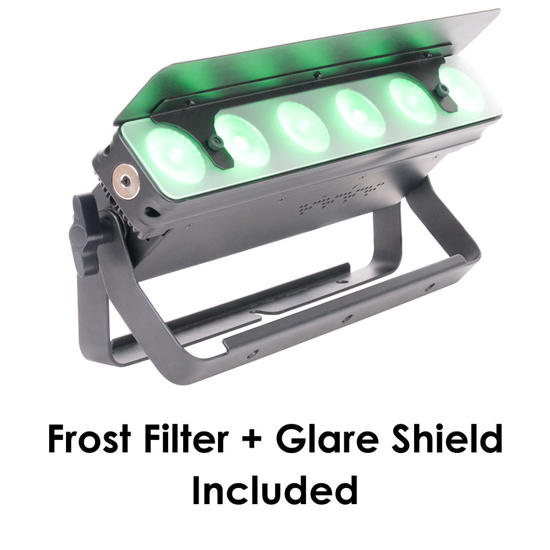

• Glare Shield
