Home › LED Lights › DJ Large Coverage Wash › American DJ Dotz Matrix
American DJ Dotz Matrix
Regular Price $1799.99
Our Price $899.99WARRANTY SPECIAL
TWO YEAR FULL WARRANTY. ONLY $27.5 A YEAR FOR FULL PEACE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details
Regular Price $99.99
Full Protection Only $55.00
Regular Price $1799.99
Our Price $899.99 TWO YEAR FULL WARRANTY. ONLY $27.5 A YEAR FOR FULL PEACE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details
Regular Price $99.99
Full Protection Only $55.00

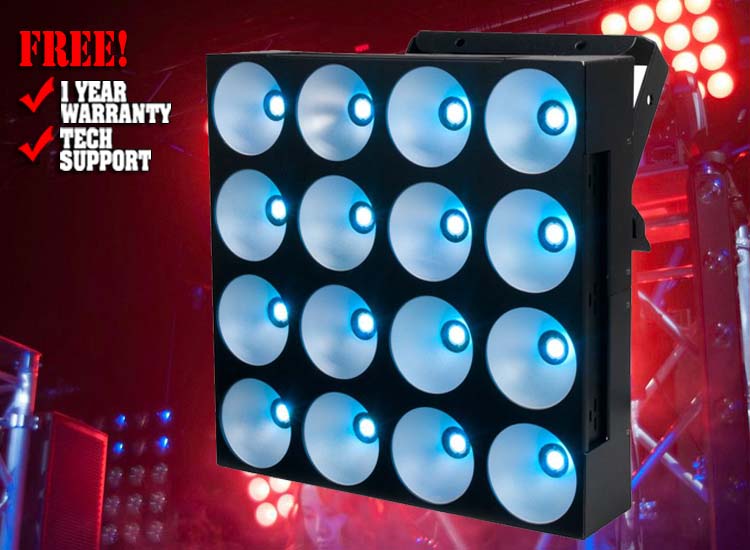

American DJ Dotz Matrix
Description
ADJ's Dotz Matrix is a Wash/Blinder fixture with advanced COB LED technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a super-charged, high output, wash fixture with smooth color mixing powered by sixteen 30W TRI COB LEDs. Dotz Matrix also has Pixel Mapping capabilities for stunning visual effects, and boasts a powerful 430 Watts with a massive 60 degree beam angle.
The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, built-in shows and colors macros, a 4-button DMX LCD display, PowerCon AC In/Out, 5 selectable Dim Curves for stage lighting, 4 Pixel Flipping options, and 5 DMX channel modes. Dotz Matrix may run in its stand-alone mode from built-in programs, sound actively, or from a DMX Controller.
Features:
- 4 x 4 COB LED high output Wash/Blinder Matrix panel
- COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
- Use as Wash/Blinder or Pixel Mapped matrix for a stunning visual effect
- Great for Stage Lighting, Bands or Night Clubs
- 5 DMX channel modes: 3, 6, 7, 48 & 52 channel
- Individual Pixel controllable in 48 & 52 channel DMX modes
- 4x Pixel Flip options changes pixel orientation
- 4x Operational modes: Auto, Sound Active, Manual RGB Dimmer, Static Color, and DMX-512
- RDM Compliant (Remote Device Management)
- Built-In preset colors and programs
- Flicker Free operation (No flickering on camera)
- LED pulse and strobe effect
- Electronic Dimming: 0 - 100%
- 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
- 60-degree beam angle
- 3 & 5-pin XLR chassis mount connectors for DMX linking
- PowerCon AC IN/OUT to daisy chain power (up to 5 Dotz Matrix's @ 120V and 9 Dotz Matrix's @ 230V on one 20 amp circuit )
- Power Draw: 430W total (All LED's @ Full)

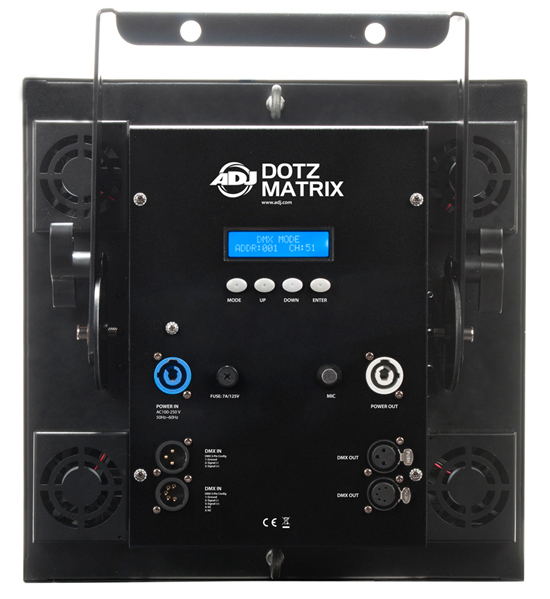

- 4-button DMX LCD display
- Single yoke allows fixture to be mounted
- Fan Cooled
- Light Source: 16x 30-Watt COB TRI LEDs (RGB: 3 in 1)
- Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
- Dimensions (LxWxH): 13.75" x 6.75" x 14.75"/ 345 x 170 x 370mm
- Weight: 18 lbs. / 7.8 kgs.
