Chauvet COREpar 80 USB

Highlights

• COB (Chip-on-Board) LED produces a full spectrum of light with unsurpassed color mixing
• D-Fi USB compatibility for wireless Master/Slave or DMX control
• Included magnetic Fresnel lens allows the flexibility to go from ultra-wide to narrow beam in seconds
• Withstand the harshness of traveling from gig to gig with a robust housing

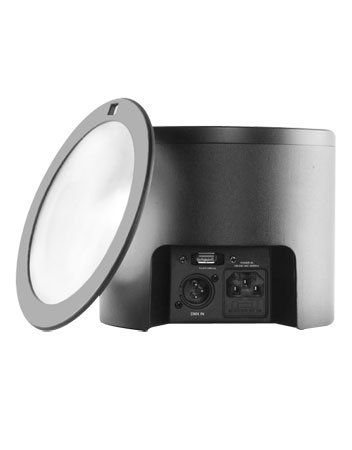

• Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit
• Achieve flicker-free video operation with high-frequency LED dimming
• Save time running cables and extension cords by power linking multiple units
• Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote
• Multiple control options include DMX, Master/Slave and Sound-Active modes
• Create customized colors using the built-in LED display
• Achieve smooth LED fading with built-in dimming curves
• Easily transports in the optional CHS-30 VIP Gear Bag
• Compact design easily fits inside sticks of TRUSST®

Specifications

• DMX Channels: 3 or 8
• DMX Connectors: 3-pin XLR
• Light Source: 1 COB LED (tri-color RGB) 80 W, (2 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 33 Hz
• PWM Frequency: 2,000 HzBeam Angle: 70° (without lens)
  25° (with lens)
• Field Angle: 90° (without lens)
  40° (with lens)
• Illuminance: 405 lux @ 2 m (without lens)
  2,143 lux @ 2 m (with lens)
• Power Linking: 7 units @ 120 V; 13 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 75 W, 1.1 A @ 120 V, 60 Hz
  72 W, 0.6 A @ 230 V, 50 Hz
• Weight: 4.2 lb (2.0 kg)
• Size: 7.9 x 5.6 x 9.9 in (200 x 143 x 253 mm)
• Approvals: CE
• Optional Controllers: IRC-6, D-Fi USB

WHAT'S INCLUDED

• Power cord
• Magnetic Fresnel lens
• Warranty card
• Quick Reference Guide
• Hanging bracket with mounting
