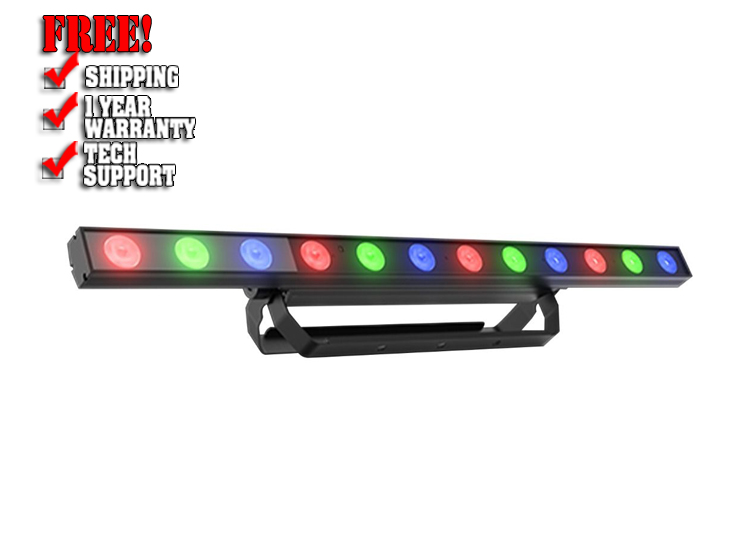

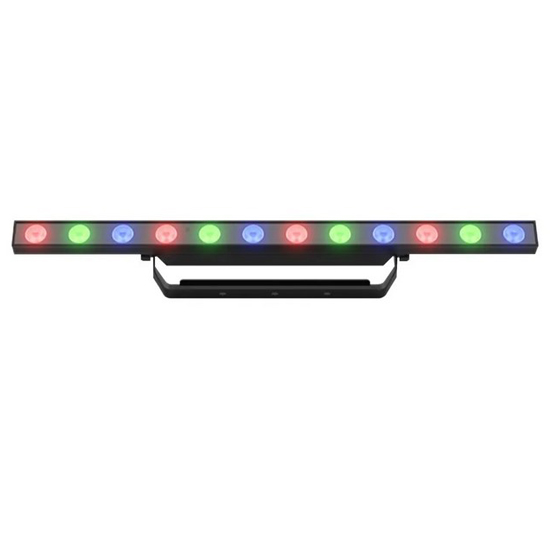

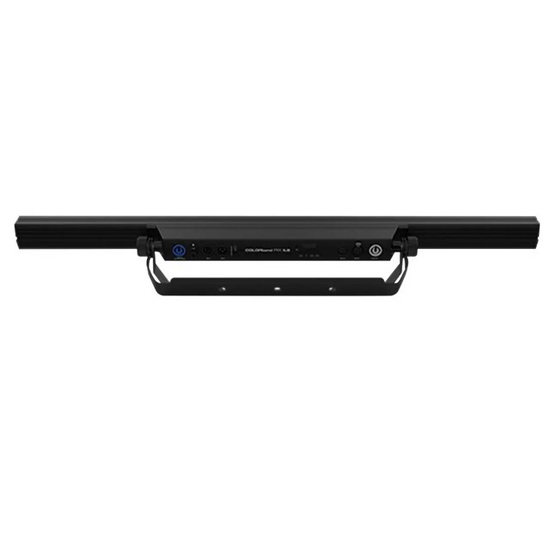

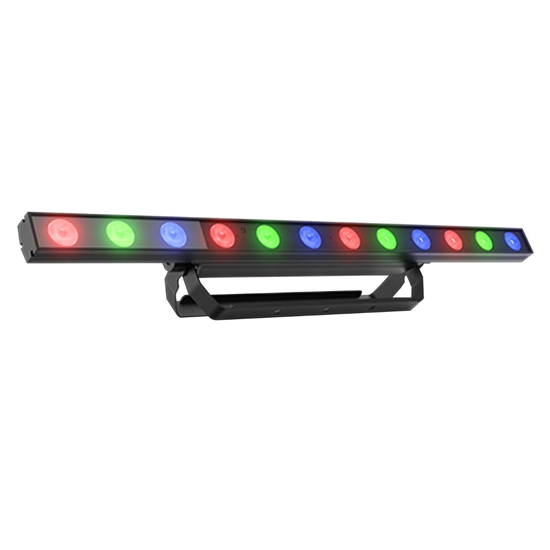

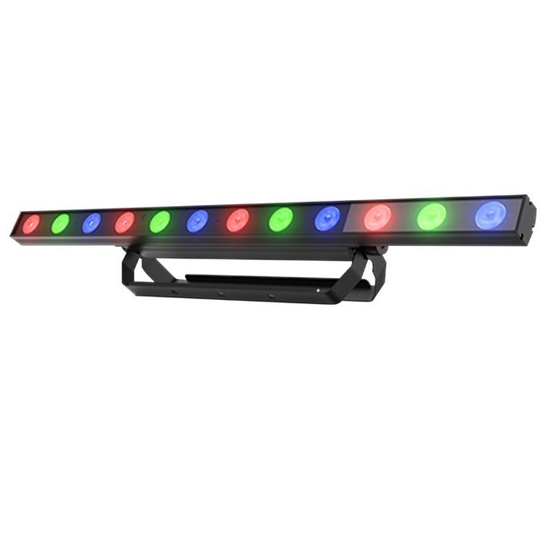

Chauvet COLORband Pix ILS

Highlights

• Full-size LED strip light functions as a pixel mapping effect, blinder, or wall washer
• Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
• ILS compatibility for use in the ILS ecosystem
• D-Fi USB compatibility for wireless Master/Slave or DMX control
• Create amazing animations and video effects with individual LED control
• Convenient access to multiple pre-built programs with or without DMX
• Easily generate complex shows with ShowXpress Pixels
• Achieve flicker-free video operation with high-frequency LED dimming
• Ideal for quiet applications due to silent operation and no moving parts
• Easily transports in the optional CHS-60 VIP Gear Bag

Specifications

• DMX Channels: 3, 4, 6, 7, 8, 9, 12, 18, 36 or 41
• DMX Connectors: 3- and 5-pin XLR
• Light Source: 12 LEDs (tri-color RGB) 3 W (1,000 mA), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 14°
• Field Angle: 27°
• Field Angle: 70°
• Illuminance: (2m): 4,142 lux @ 2 m, (5m): 663 lux @ 5 m
• Lumens: 1402
• Power Linking: 19 units @ 120 V; 35 units @ 230 V
• Power and Current: 49 W, 0.7 A @ 120 V, 60 Hz , 48 W, 0.4 A @ 230 V, 50 Hz
• Weight: 7 lb (3.2 kg)
• Size: 38.9 x 2 x 6.2 in (987 x 49 x 157 mm)
• Approvals: CE, MET, UKCA, RoHS
• Cable Length: 5 ft (1.5 m)
• Bracket Mounting Hole: 13 mm
• Optional Controllers: RFC, RFC-XL, DFI-USB

Downloads

• COLORband Pix ILS Quick Reference Guide
• COLORband Pix ILS User Manual

What's Included

• COLORband Pix ILS
• Power cord
• Quick Reference Guide
