Chauvet DJ Gigbar IRC

Description

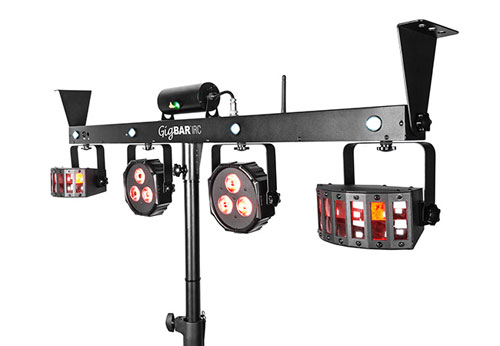

The CHAUVET® DJ GigBAR™ IRC combines 4 essential lighting fixtures mounted onto a single control bar. The 4-in-1 GigBAR™ IRC maximizes convenience and ease of set-up and take-down for mobile entertainers who want to create a dynamic lighting experience for any event. The system includes a pair of LED Derby-style effect lights, a pair of LED pars, a laser and a strobe effect. Get in and out quickly with the included tripod, footswitch controller and carry bags. The GigBAR™ IRC features phenomenal built-in automated and sound-activated programs that include all 4 effects to make one complete show. Easily control the GigBAR™ IRC from the display, IRC-6 remote control, wireless footswitch or DMX to take your gig to a higher level. Save time running cables and extension cords by power linking multiple units.

• 4-in-1 light that includes a pair of LED derbies, a pair of LED Pars, a laser, and strobe effect all mounted on one bar
• Cover any room or stage with 4 individually adjustable and interchangeable heads
• Get in and get out quickly with the included tripod, wireless footswitch and carry bags
• Ready for every application using the included mounting brackets to attach to truss
• 4 high-power, LED strobe lights create exciting chase and slow motion effects
• Adjustable red and green laser scatters hundreds of bright dots and beams in all the right directions
• Derbies project 42 red, green, and blue rotating beams from high-power LEDs
• Phenomenal built-in automated and sound-activated programs that include all 4 effects to make one complete show
• Easily control from the display, IRC-6, wireless footswitch or DMX to take your gig to a higher level
• Master/slave multiple units under the control of a single IRC-6 or wireless footswitch
• Save time running cables and extension cords by power linking multiple units
• DMX Channels: 3, 9 or 20
• DMX Connectors: 3-pin XLR

• Light Source (Pars): 6 LEDs (tri-color RGB) 2.5 W (956 mA), 50,000 hours life expectancy

• Light Source (strobe): 4 LEDs (white) 1 W (281 mA), 50,000 hours life expectancy

• Light Source (derby): 6 LEDs (2 red, 2 green, 2 blue) 2 W (600 mA), 50,000 hours life expectancy

• Light Source: 650 nm/100 mW (red) laser diode, 532 nm/30 mW (green) laser diode

• Strobe Rate (strobe): 0 to 18 Hz

• Stand Height: 4.8 to 8.3 ft (1.5 to 2.5 m)

• Tripod Leg Width: 3.9 ft (1.2 m)

• Beam Angle (Pars): 13°

• Beam Angle (strobe): 8°

• Field Angle (Pars): 24°
• Field Angle (strobe): 18°

• Coverage Angle (laser): 93°

• Coverage Angle (derby): 114°

• Footswitch Operating Frequency: 433 MHz

• Illuminance (Pars): 1,205 lux @ 2 m (per head)

• Illuminance (strobe): 86 lux @ 2 m (per zone)

• Footswitch Max Unobstructed Distance: 100 ft (30.5 m)

• Power Linking: 16 units @ 120 V; 29 units @ 230 V

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current: 44 W, 1 A @ 120 V, 60 Hz

• Power and Current: 43 W, 1 A @ 230 V, 50 Hz

• Fits Tripod Sizes: 1.5 in (37.4 mm)

• Weight: 14.4 lb (6.6 kg)

• Size: 46.7 x 4.3 x 15.2 in (1,185 x 110 x 387 mm)

• Optional Controllers: IRC-6

• Classified per EN/IEC 60825-1:2007

• Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007

• Approvals: CE, FDA, FCC
• PDF Manual
