Chauvet DJ Freedom Stick

Overview

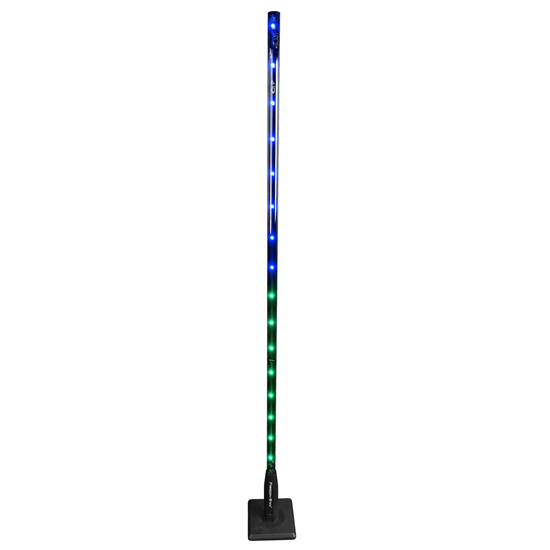

The Freedom Stick from CHAUVET is a battery-powered free-standing fixture which uses 32 tri-color RGB LEDs to create dazzling multi-colored light effects. Individual pixel mapping allows for red, green, and blue color mixing of each pixel, and global control over strobe and dimming is also provided. The built-in D-Fi transceiver enables wireless DMX control of the Freedom Stick from any D-Fi-enabled controller. Four DMX channel modes (3, 8, 48, 50) give varying degrees of control over the fixture. User-customizable automated programs let you design complex looks in seconds.

Additional control options of the Freedom Stick include sound-activated programs, wireless master/slave configurations, and the optional IRC-6 remote. The Freedom Stick can be mounted in any position and almost anywhere. Keep the metal base on if you want to stand the fixture on the floor, and detach it if you want to lay it on a surface or rig it to a truss (mounting clamps not included).

Specifications

• LED Source : 32 x SMD (surface mount device) tri-color RGB LEDs; 0.2 W, 50 mA
• LED Life Expectancy : 50,000 hours
• Color Mixing : RGB: red, green, blue (per pixel)
• Strobe Rate 0 to 30 Hz
• Coverage Area : 360°
• Maximum Run Time : Up to 6.5 h (all on)
• Recharge Time : 4.5 h
• Built-In Programs : Yes: automatic and sound active
• Operation Modes : DMX, Master/Slave, Standalone
• DMX Channel Modes : 3, 8, 48, or 50 channels
• DMX Connectors : Input: 1 x XLR 3-pin , Output: 1 x XLR 3-pin
• Wireless Control : D-Fi Wireless DMX, IRC-6 Remote (optional)
• Power Supply : Internal: 15 VDC, 800 mA, External 100-240 VAC, 50/60 Hz (auto-ranging)
• Consumption : 35 W, 0.05 A @ 120 VAC, 60 Hz 35 W, 0.03 A @ 230 VAC, 50 Hz
• Approvals : CE, FCC
• Dimensions : 6.3 x 6.3 x 61.0" (16.1 x 16.1 x 155.0 cm) with base
• Weight : 3.5 lb (1.6 kg)

Packaging Info

• Package Weight : 5.1 lb
• Box Dimensions (LxWxH) : 61 x 6.6 x 4"
