Chauvet DJ 4BAR Flex Q

Overview

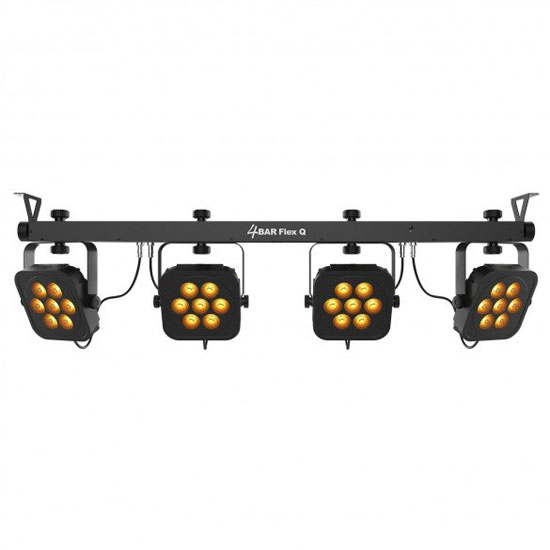

Complete wash lighting convenience reaches new heights with 4BAR Flex Q. This all-in-one system is fitted with four par fixtures on one bar. High-intensity, quad-color (RGBA) LEDs generate a broad spectrum of colors and achieve natural-looking color temperatures with its punchy amber LEDs. 4BAR Flex Q easily sets up and tears down in minutes and includes a handy carry bag. Adding to the unit's versatility are two L-brackets that let you maximize setup possibilities and configurations. Easily mount up to 4 additional fixtures to the top of the 4Bar Flex Q and provide power to additional lights using the built-in Edison plugs. 4BAR Flex Q mounts to most tripods or speaker stands, without the need for additional clamps, using the pass-through hole. D-Fi USB compatibility for wireless master/slave or DMX control is on-board and multiple control options include standalone, DMX mode, wireless footswitch or the IRC-6.

Highlights

• Complete wash lighting solution fitted with high-intensity, quad-color (RGBA) LEDs

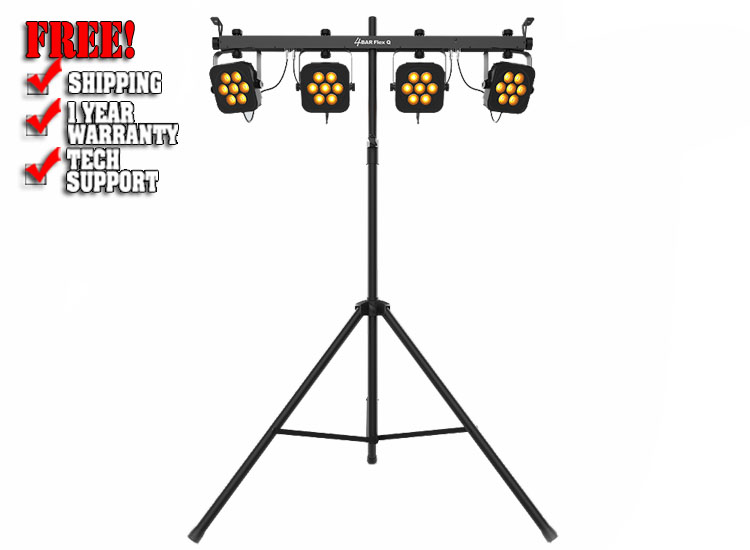

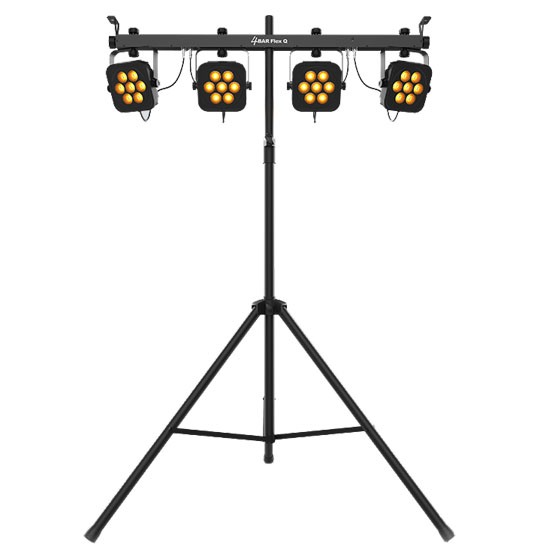

• Mounts to most tripods or speaker stands, without the need for additional clamps, using the pass-through hole
• Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
• D-Fi™ USB compatibility for wireless master/slave or DMX control
• Create the ultimate light show by mounting up to 4 additional fixtures to the top of the 4BAR Flex Q
• Provide electricity to the additional lights by using the built-in Edison plugs
• Maximize setup possibilities and configurations with 2 included L-brackets
• Easily set up and tear down in minutes with the included carrying bag
• Multiple control options include standalone, DMX mode, wireless footswitch or the IRC-6
• Safely mounts to truss using built-in bolts

Specifications

• DMX Channels: 4, 6 or 19
• DMX Connectors: 3-pin XLR
• Max Unobstructed Distance: (foot switch): 100 ft (30.5 m)
• Light Source: 28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 14°
• Field Angle: 23°
• Operating Frequency: (D-Fi): 2.412 to 2.484 GHz
  (foot switch): 433 MHz
• Fits Tripod Size: 1.5 in (36.80 mm)
• Illuminance: 2,353 lux @ 2 m (per pod)
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 80 W, 1.2 A @ 120 V, 60 Hz
  78 W, 0.6 A @ 230 V, 50 Hz
• Weight: 12.2 lb (5.5 kg)
• Size: 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
• Approvals: CE, FCC
• Footswitch battery: 9 V
• Bracket Mounting Hole: M10 (1.5 mm pitch)
• Weight (Controller): 1.2 lb (0.6 kg)
• Size (Controller): 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
• Included Controller: IRC-6
• Optional Controller: D-Fi USB
• Chauvet DJ 4BAR Flex Q Quick Reference Guide
• Chauvet DJ 4BAR Flex Q User Manual

What's Included

• 4BAR Flex Q
• 4Bar Flex Q
• Power cord
• Carrying bag
• Wireless Footswitch
• IRC-6 controller
• Hanging bracket
• Quick Reference Guide
