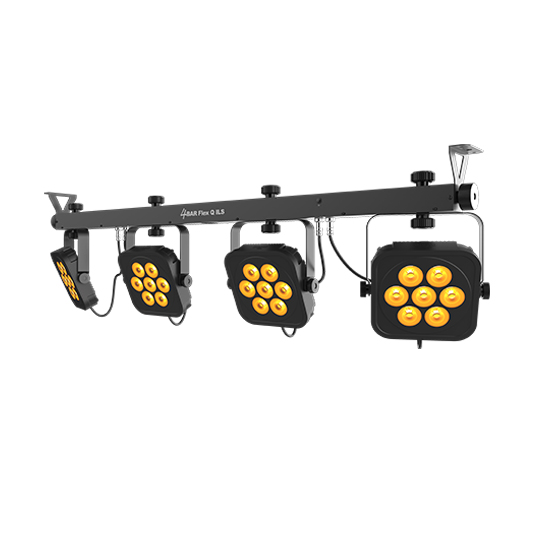

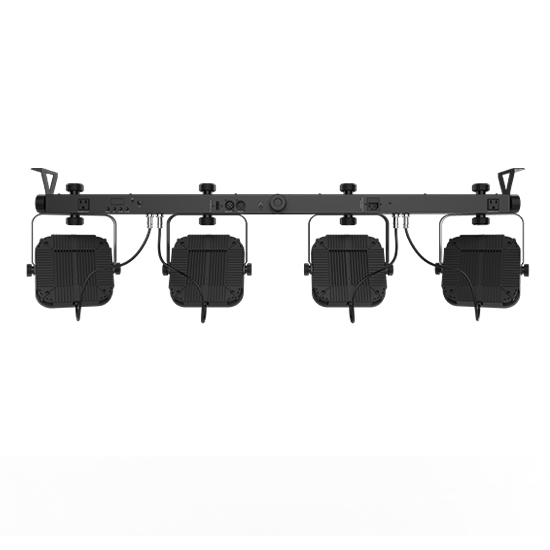

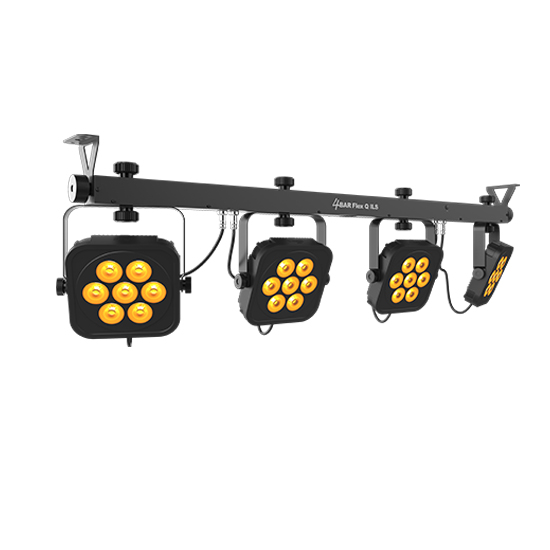

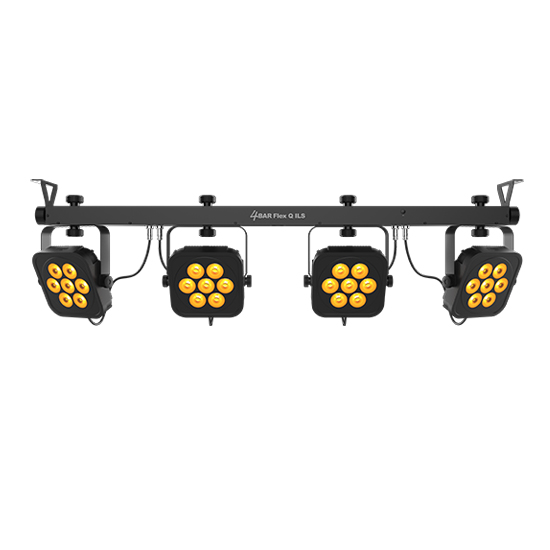

Chauvet DJ 4Bar Flex Q ILS

Highlights

• Complete wash lighting solution fitted with high-intensity, quad-color (RGBA) LEDs
• ILS compatibility for use in the ILS ecosystem

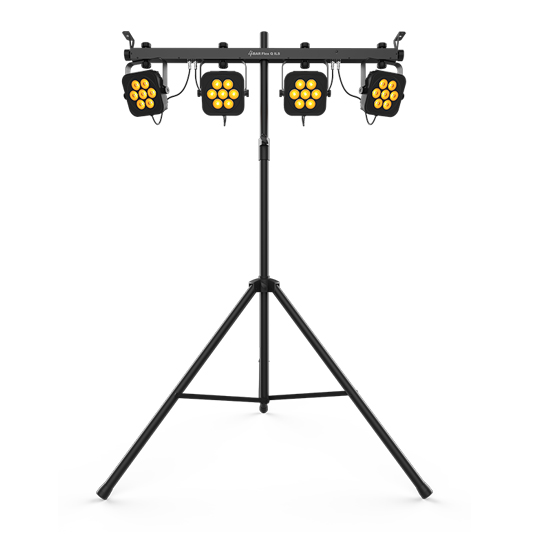

• Mounts to most tripods or speaker stands, without the need for additional clamps, using the pass-through hole
• Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
• D-Fi™ USB compatibility for wireless master/slave or DMX control
• Create the ultimate light show by mounting up to 4 additional fixtures to the top of the 4Bar Flex Q
• Provide electricity to the additional lights by using the built-in Edison plugs
• Maximize setup possibilities and configurations with 2 included L-brackets
• Easily set up and tear down in minutes with the included carrying bag
• Multiple control options include standalone, DMX mode, wireless footswitch or the IRC-6 remote
• Safely mounts to truss using built-in bolts

Specifications

• DMX Channels: 4, 6 or 19
• DMX Connectors: 3-pin XLR
• Light Source: 28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 14°
• Field Angle: 23°
• Illuminance: 2,353 lux @ 2 m (per pod)
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
  • 80 W, 1.2 A @ 120 V, 60 Hz
  • 78 W, 0.6 A @ 230 V, 50 Hz
• Weight: 12.2 lb (5.5 kg)
• Size: 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
• Approvals: CE, RoHS, UKCA
• Operating Frequency (D-Fi): 2.412 to 2.484 GHz
• Operating Frequency (foot switch): 433 MHz
• Max Unobstructed Distance (foot switch): 100 ft (30.5 m)
• Footswitch battery: 9 V
• Fits Tripod Sizes: 1.5 in (36.80 mm)
• Bracket Mounting Hole: M10 (1.5 mm pitch)
• Weight: 12.2 lb (5.5 kg)
• Weight (Controller): 1.2 lb (0.6 kg)
• Size: 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
• Size (Controller): 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
• Included controller: IRC-6
• Optional controller: D-Fi USB
• Chauvet DJ 4Bar Flex Q ILS Quick Reference Guide
• 4BAR Flex Q ILS - User Manual

What's Included

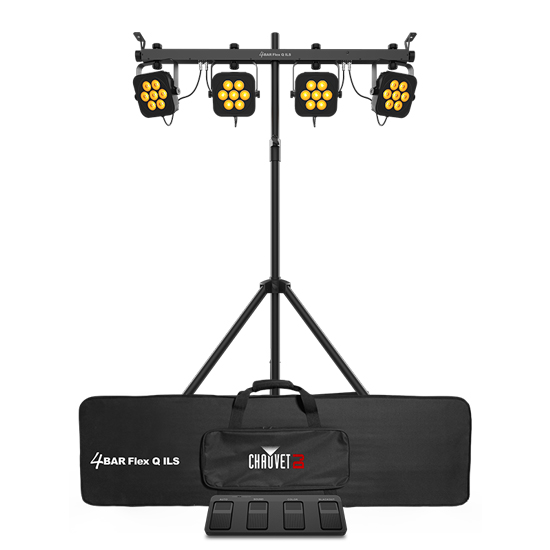

• 4Bar Flex Q ILS
• Power cord
• Carrying bag
• Wireless footswitch
• IRC-6 remote
• Wireless Footswitch
• Quick Reference Guide
