American DJ Inno Beam LED

Overview

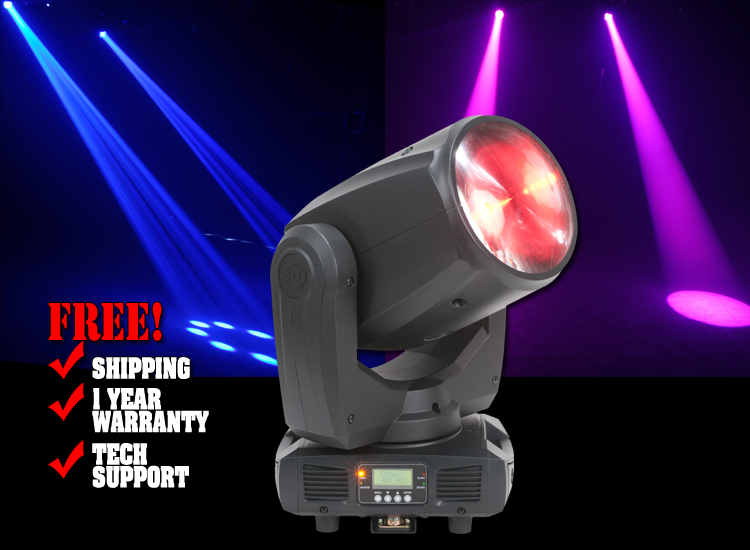

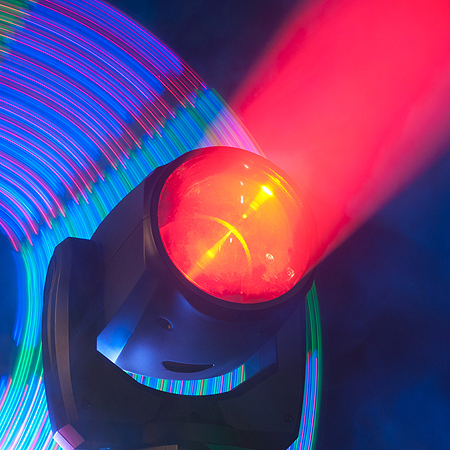

ADJ continues to push the boundaries of LED technology with the Inno Beam LED, a compact intelligent Moving Head with a bright 80W LED source. It produces a tight 6-degree beam projecting 8 colors plus white. It features a laser cut GOBO Wheel with 4 GOBOs and 4 Beam Reducers to change the size of your beam (for exciting effects and for pinspotting), an 8-facet prism and a Frost filter to create a wash effect.

The Inno Beam LED is lightweight and small in size making it extremely mobile for easy set-up and transport. It may be controlled via DMX, Sound Activation (with it’s own 4 built-in shows) or from the ADJ UC3 easy-to-use controller. It has a Pan/Tilt Inversion mode that makes the heads produce contrasting movements. There are 2 DMX channel modes (12 or 14 channels).

The Inno Beam LED has 5 selectable dimming curves, a high speed shutter for slow to fast strobing and pulsing, and has a low power draw of 129W at maximum.

Specifications

High output Moving Head beam effect with a bright white 80W LED source
8 Colors + white
Laser cut Gobo Wheel with 4 GOBOs and 4 Beam Reducers
Separate color & GOBO wheels
Beam Angle: 6-degrees
3 Operational modes: DMX Controlled, Sound Active & Internal Show control modes
2 DMX channel modes: 12 or 14 Channel
4 Built-in shows
8-facet Prism
Frost Filter
Gobo Shake effect
Gobo scroll mode
540° pan / 210° tilt (16-bit)
Pan /Tilt Inversion mode
5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
Shutter: Pulse effect; random strobe slow to fast
Dimming: 0% - 100%
Fan Cooled
Omega bracket included

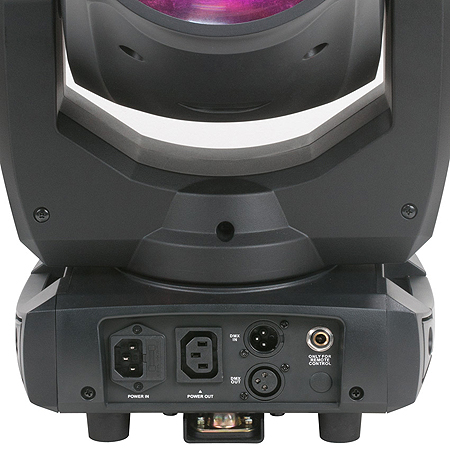

IEC AC IN/OUT on rear to daisy chain power (up to 3 Inno Beam LED’s @ 120V and 6 Inno Beam LED’s @ 230V )
Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
Power consumption: 129W Max
Multi-voltage Operation: AC 100 - 240V, 50/60Hz
Lux @ 3M: 40060 lux
LED Source: 80W White LED source ( Rated at 50,000 hrs)
Dimensions (LxWxH): 11.5” x 7.5” x 18.25” / 289 x 188 x 461mm
Weight: 18 lbs. / 8.2 kgs.
PDF Manual
