ADJ UB 12H

Professional grade indoor 1-meter linear fixture powered by twelve 6-Watt HEX LEDs. Includes UC IR wireless remote and magnetic interlocking end caps to attach fixtures together.

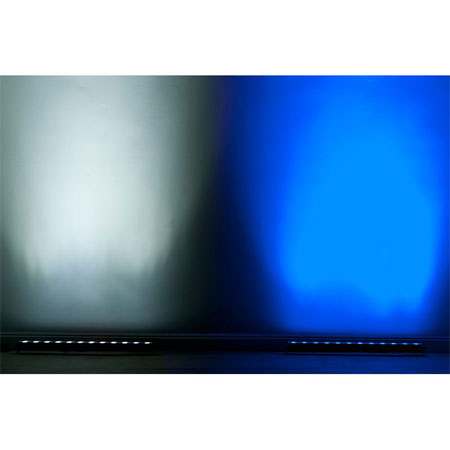

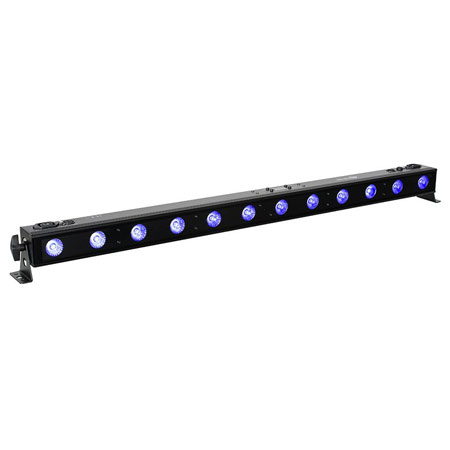

The ADJ UB 12H is a 41.75-inch (1-meter) professional grade indoor linear fixture powered by twelve 6-Watt HEX (6-IN-1) LEDs. Its bright chromatic 40-degree beam angle provides vibrant TRI color mixing designed for washing stages, walls and dance floors. Its rugged casing with patent pending Quick Align end locking allows for a seamless output of light with no breaks of color.

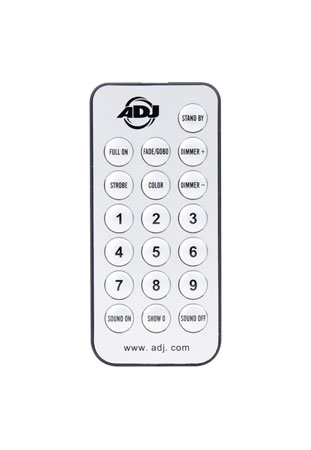

UB 12H features built-in Color Macros (built-in colors), 0-100% dimming and variable speed strobe. Plus, it offers flexible programming from its on-board 4-Button LED DMX-512 menu, or from the ADJ UC IR wireless remote included inside the box.

Specifications

• 41.75-inch (1 meter) indoor Linear Bar with 12x 6W HEX LEDs (RGBAW+UV)
• Great for Stage or Wall Washing!
• 4 DMX Channel Modes: 6, 10, 12 and 36 channels
• 5 operational modes: Auto (Program Run), Sound Active, RGBAW+UV Dimmer, Static Color and DMX-512 Mode
• 3 or 6-Section Pixel control
• Patent Pending Quick Align (Magnetic)
• Beam Angle: 40 degrees
• Flicker Free

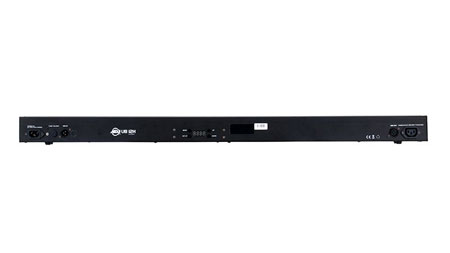

• 4-Button DMX LED Display
• 35 built-in Color Macros
• LED pulse & strobe effect
• Electronic Dimming: 0-100%
• Includes mounting brackets to mount on a wall or set on the ground
• Compatible with the ADJ UC IR wireless remote (included) and the Airstream IR APP
• Long Life LEDs (Rated at approximately 50,000 hrs.)
• Power Draw: 88W @ 120V.
• Linkable: DMX via 3-pin XLR cable; Power via IEC. Daisy-chain power (Up to 7 UB 12H fixtures max., @ 120V can be power linked)
• With Wired Digital Communication Network
• Multi-voltage operation: AC 100V-240V 50/60Hz
• Dimensions (LxWxH): 41.75" x 2.5" x 3.75"/ 1060 x 63 x 90mm
• Weight: 6 lbs./ 2.7 kg.
• cETLus Approved (Control #4002034)
