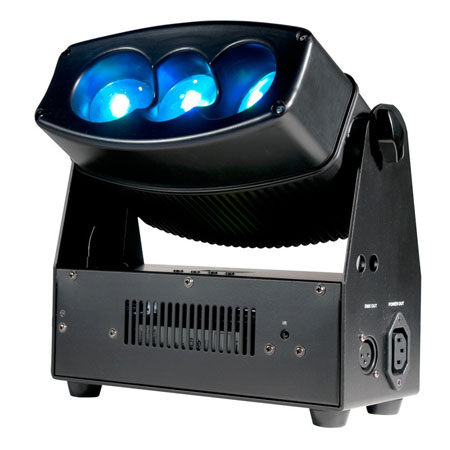

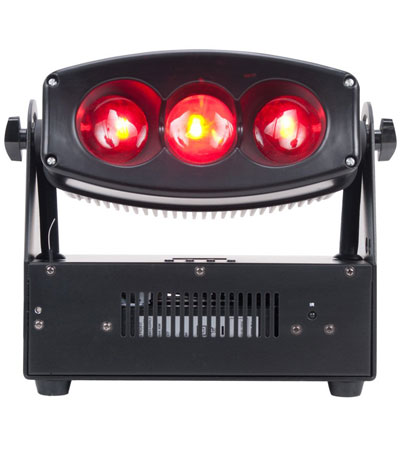

ADJ Chameleon QBar Pro

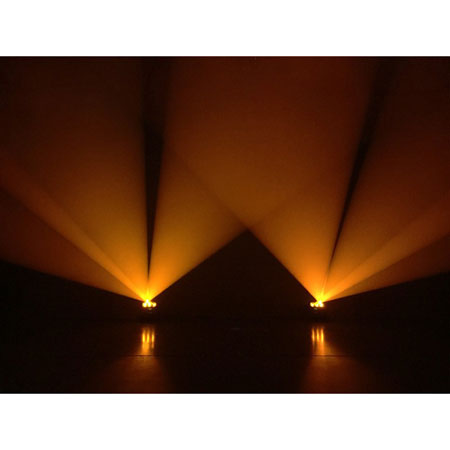

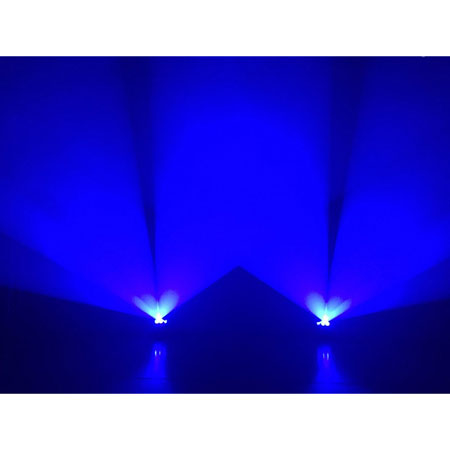

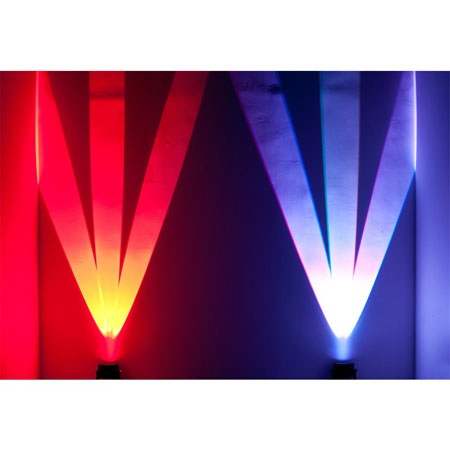

The ADJ Chameleon QBar Pro creates beams from 3 different angled lenses with offset colors for a one-of-a-kind effect. This unique wall washing fixture is powered by three 30W RGBA (4-IN-1) LEDs, and includes ADJ's WiFLY EXR "Extend Range" wireless DMX up to 2,500 feet. The head is adjustable to change the beam direction. The Chameleon QBar Pro has 6 DMX channel modes, 6 operational modes, 3-pin DMX and IEC In/Out to daisy chain power. Its compatible with all ADJ WiFLY fixtures and controllers.

Features:

• Built-in WiFLY Extended Range wireless DMX (up to 2,500 ft)
• Adjustable head to manual change beam direction
• Individual Pixel Control
• 2 x 8 Character LCD Display
• 19 Built-In Programs
• 63 Color Macros
• LED pulse & strobe effect
• Electronic Dimming: 0 - 100%
• Compatible with all ADJ WiFLY fixtures and controllers plus the ADJ LED RC2, UC IR wireless remotes (both remotes sold separately), and Airstream IR

Specifications

• 7 DMX channel modes 4/5/7/9/10/12/14
• 6 Operating Modes: RGBA Dimmer Mode, Built-In Program Mode (19 Programs), Auto Run Mode, Static Color Mode, Sound Active Mode, & DMX Control
• 15 degree beam angle

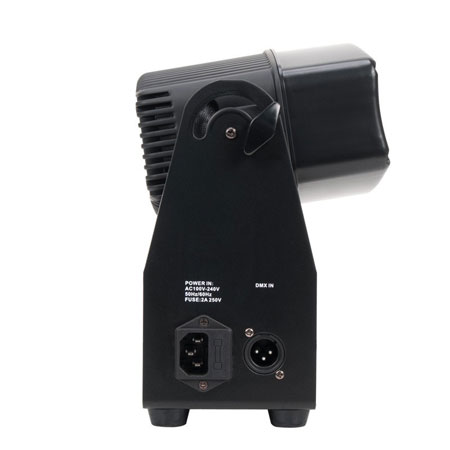

• DMX-512 Protocol 3-pin XLR In/Out

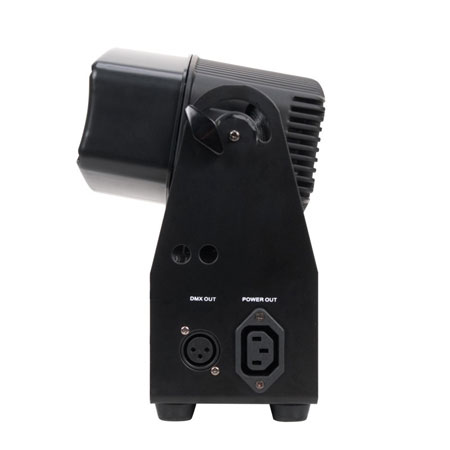

• IEC in/out to Daisy Chain Power (Connect up to 6 fixtures max.)
• Power Consumption: 100W
• Multi-voltage Operation: 100-240V, 50Hz/60Hz
• 3 x 30W RGBA (4-in-1) LEDs
• Light Output: 196 LUX @ 2M; 53.6 LUX @4M (15-degree beam)
• Dimensions (LxWxH): 270 x 100 x 260mm / 10.5" x 4" x 10.25"
• Weight: 8 lbs. / 3.7 kg.
• Chameleon QBar Pro User Manual
• Chameleon QBar Pro Photometric Chart
• Chameleon QBar Pro CAD Drawing
