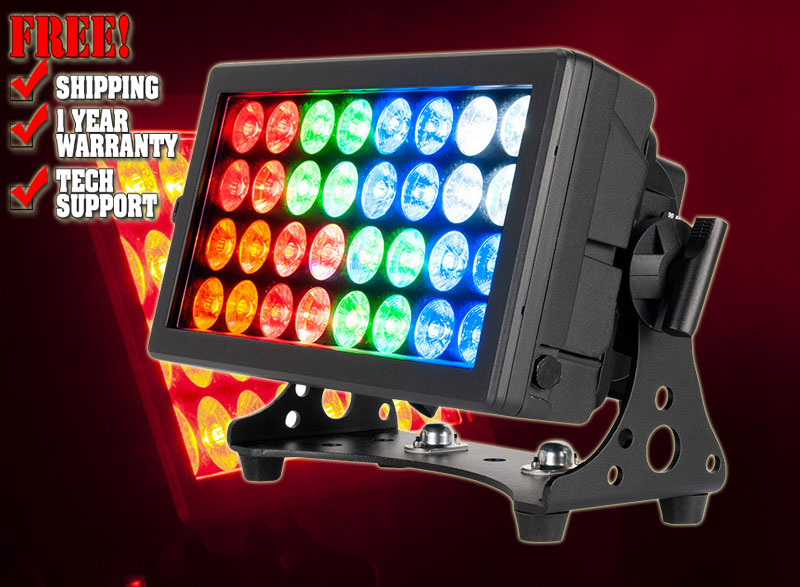

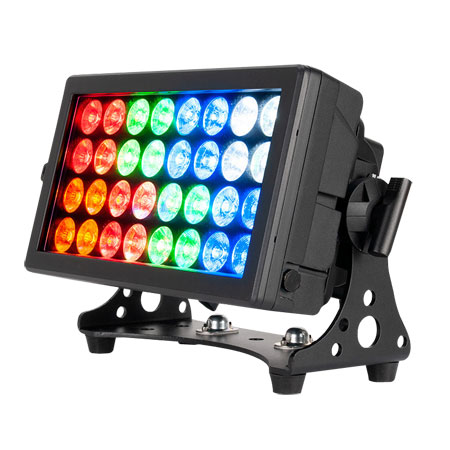

American DJ 32 HEX Panel IP

Specifications

Light Source:

• LED: 32x 12W HEX (6-In-1) RGBWA+UV LEDs (50,000 hr.)
• Beam Angle: 24-degrees

Features:

• IP65 rated - protects from dust, sand, moister, water
• All metal construction with black housing
• Includes heavy duty bracket
• Includes magnetic removable filter frame to add a diffusion filter
• Flicker free for film and broadcast

Construction:

• Display: OLED display with function buttons
• Data In/Out: 5-pin DMX IP65 (with rubber protective covers over connections)
• Power In/Out: Seetronic powerKON IP65 (with rubber protective covers over connections)

Control:

• DMX Channel Modes: Multiple DMX channel modes
• 8 individually controlled sections with Pixel Zone Control
• 0-100% Dimming + smooth 16-bit Dimming
• 5 Dimming Curve Modes
• Control Mode: DMX512, RDM
• Gamma Brightness: Multiple settings
• LED Refresh Rate: Multiple settings
• With Wired Digital Communication Network

Electrical:

• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
• Power consumption: TBA

Dimensions & Weight:

• Dimension: 13.75"x 9" x 6.75" / 350x230x170mm
• Weight: 24.25 lbs. / 11kg.

What's Included:

• Removable frost filter with metal frame
• Seetronic powerKON IP65 power cord
• Two Safety cables
