Chauvet DJ 4BAR Tri USB

Overview

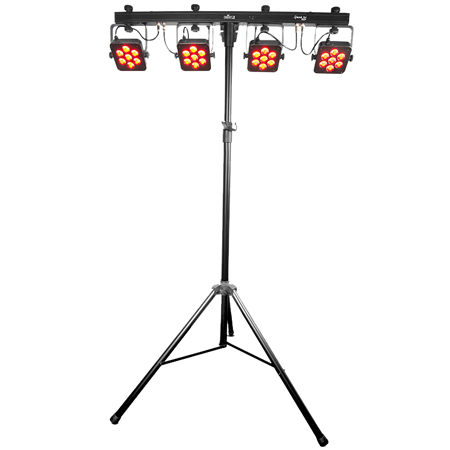

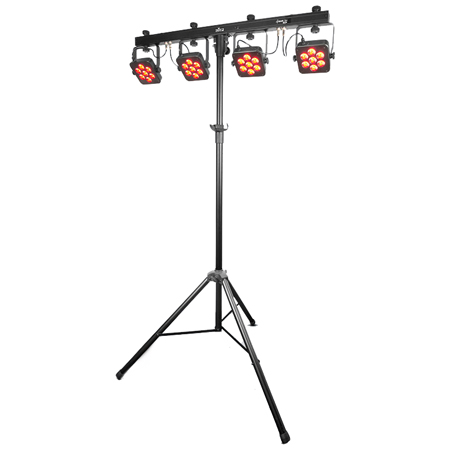

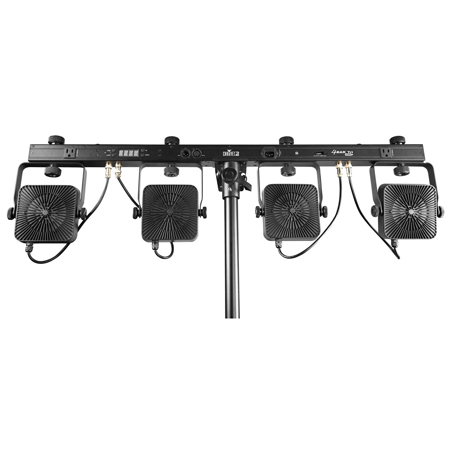

4BAR Tri USB is a complete wash lighting solution fitted with high–intensity tri–color (RGB) LEDs that can be controlled wirelessly via the included footswitch or the optional IRC–6 controller (sold separately). It also features D–Fi USB compatibility for wireless master/slave or DMX control. A convenient tripod stand and carrying bag are included for quick and easy setup and tear down.

Highlights

• Complete wash lighting solution fitted with high–intensity, tri–color (RGB) LEDs
• Out of the box wireless control with included footswitch or optional IRC–6 controller
• Easily set up and tear down in minutes with the included tripod stand and carrying bags
• Create large, coordinated light shows with other 4BAR™ fixtures in Master/Slave mode
• D-Fi™ USB compatibility for wireless Master/Slave or DMX control
• Create the ultimate light show by mounting up to 4 additional fixtures to the top of the 4BAR™ Tri USB
• Achieve total room or stage coverage with 4 individually adjustable heads
• Nearly eliminate multi–colored shadows with high–power, tri–color (RGB) LEDs
• Increase mounting options by safely mounting to truss using built–in bolts
• Save time running cables and extension cords by power linking multiple units
• Sound–activated programs dance to the beat of the music

Specifications

• DMX Channels: 3 or 15
• DMX Connectors: 3–pin XLR
• Light Source: 28 LEDs (tri–color RGB) 3 W (1 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 25 Hz
• PWM Frequency: 1,200 Hz
• Beam Angle: 18°
• Field Angle: 31°
• Fits Tripod Size: 1.34 to 1.57 in (35 to 40 mm)
• Illuminance: 2,330 lux & 2 m (per pod)
• Power Linking: 8 units @ 120 V; 14 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto–ranging)
• Power and Current: 69 W, 1 A @ 120 V, 60 Hz
  66 W, 0.5 A @ 230 V, 50 Hz
• Weight: 20.6 lb (10.8 kg)
  (Controller): 0.8 lb (1.8 kg)
• Size: 41.3 x 2 x 10.6 in (1,050 x 50 x 270 mm)
  (Controller): 12.4 x 5.2 x 1.5 in (315 x 132 x 38 mm)
• Approvals: CE
• Optional Controllers: IRC–6, D–Fi™ USB
• Stand Height: 7.4 ft (2.25 m)

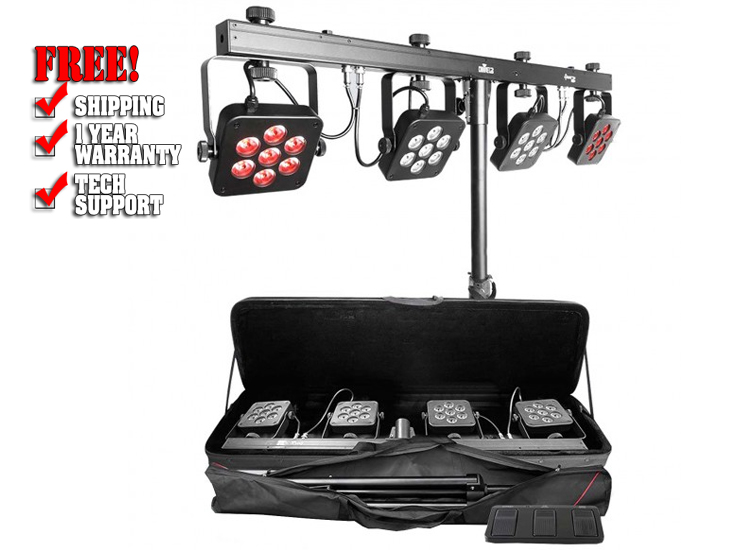

What's Included

• Power cord
• 4BAR and Stand carry bag
• Tripod
• Wireless Footswitch
• Quick Reference Guide / Warranty card
