Chauvet DJ 4BAR Flex T USB

Overview

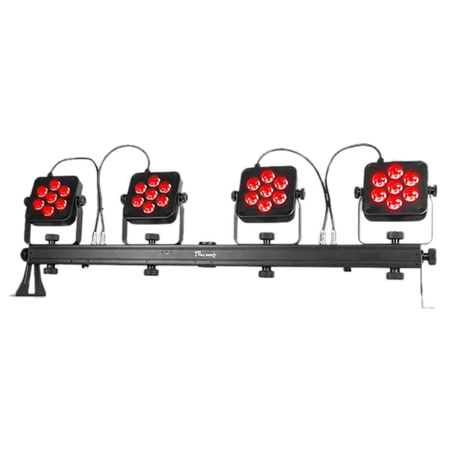

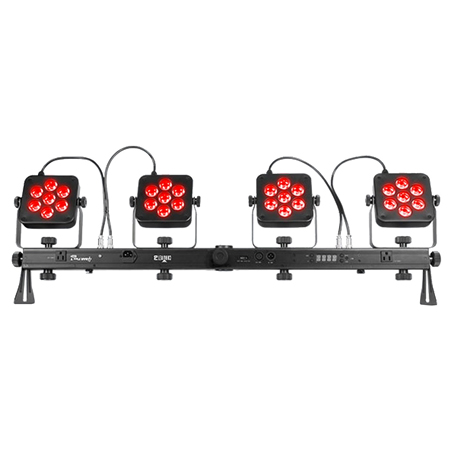

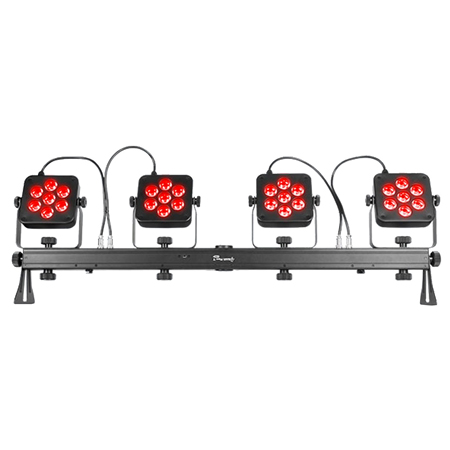

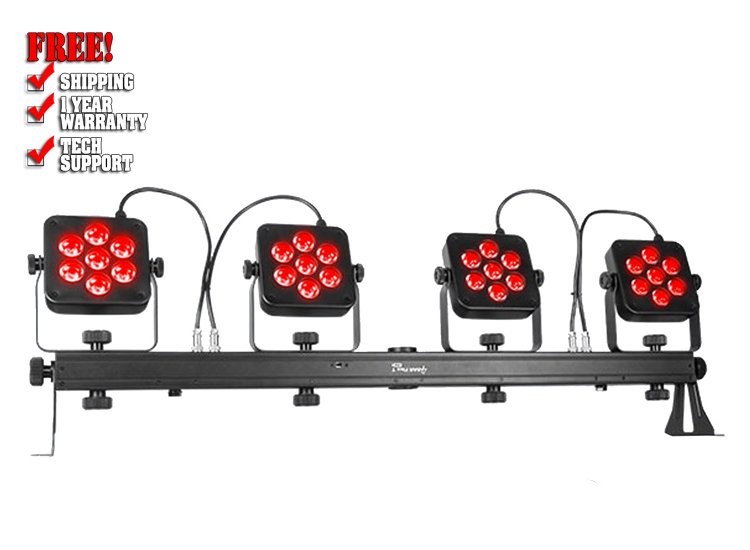

4BAR Flex T USB is one of the most versatile and convenient pack–n–go lighting systems anywhere. The unit features unmatched flexibility with the addition of D–Fi™ USB compatibility for wireless master/slave or DMX control. You can maximize setup possibilities and configurations with 2 included L–brackets and the unit mounts to most tripods or speaker stands, without the need for additional clamps, using the pass–through hole. Create the ultimate light show by mounting up to 4 additional fixtures to the top of the 4BAR Flex T USB and provide electricity to the additional lights by using the built–in Edison plugs. Easily set up and tear down in minutes with the included carrying bag and create large, coordinated light shows with other 4BAR fixtures in master/slave mode.

Highlights

• Upgraded version of the popular 4BAR Tri USB increases FLEXibility

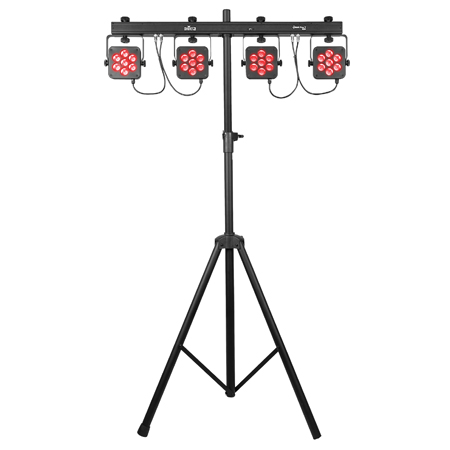

• Mounts to most tripods or speaker stands, without the need for additional clamps, using the pass–through hole
• D-Fi™ USB compatibility for wireless master/slave or DMX control
• Create the ultimate light show by mounting up to 4 additional fixtures to the top of the 4BAR Flex
• Provide electricity to the additional lights by using the built–in Edison plugs
• Maximize setup possibilities and configurations with 2 included L–brackets
• Easily set up and tear down in minutes with the included carrying bag
• Multiple control options include standalone, DMX mode, wireless footswitch or the IRC–6
• Safely mounts to truss using built–in bolts
• Create large, coordinated light shows with other 4BAR fixtures in master/slave mode

Specifications

• DMX Channels: 3 or 15
• DMX Connectors: 3–pin XLR
• Light Source: 28 LEDs (tri–color RGB) 3 W, (800 mA), 50,000 hours life expectancy
• Strobe Rate: 0 to 22 Hz
• Beam Angle: 18° (per pod)
• Field Angle: 31° (per pod)
• Illuminance: 2330 lux @ 2 m (per pod)
• Power Linking: 8 units @ 120 V; 16 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 64 W, 1 A @ 120 V, 60 Hz
  63 W, 0.5 A @ 230 V, 50 Hz
• Weight: 11.6 lb (5.3 kg)
  (Controller): 0.8 lb (1.8 kg)
• Size: 47.4 x 5.5 x 14.75 in (1205 x 140 x 374.8 mm)
  (Controller): 12.4 x 5.2 x 1.5 in (315 x 131.5 x 37.5 mm)
• Approvals: CE
• Stand Height: 7 ft 4 in (2.2 m)
• Optional Controllers: IRC – 6, D–Fi USB

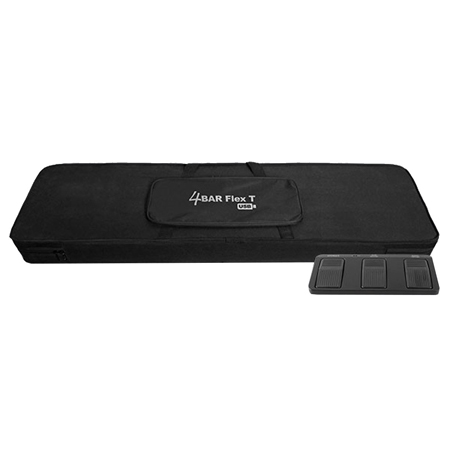

What's Included

• 4Bar Flex T USB
• Power cord
• Carrying bag
• Wireless Footswitch
• Warranty card
• Quick Reference Guide
