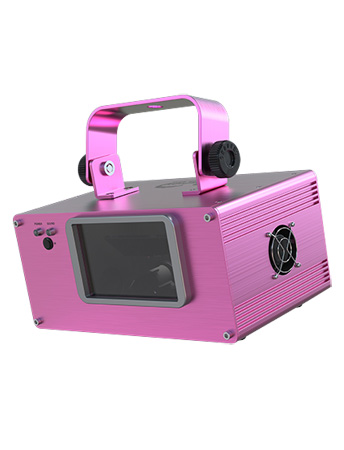

Chauvet Scorpion Dual RGB ILS

Let your lighting creativity run wild with Scorpion Dual RGB ILS, a Dual RGB FAT BEAM™ aerial effect laser that generates customized and ever-changing laser shows using programmable pan, tilt, and zoom effects with separate X, Y, and Z rolling effects and scan speed adjustment. This laser features 32 built-in patterns, including the popular "Laser Sky" effect offers perfect color combinations by mixing red, green, and blue laser diodes. Its unique dual mirror output makes a great centerpiece or side accent in pairs. Scorpion Dual RGB ILS has ILS compatibility with the cutting-edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy. D-Fi™ USB compatibility is also on board for wireless Master/Slave or DMX control. Scorpion Dual RGB ILS is fully FDA compliant, variance-free, and ready to use right out of the box. Easily operate Scorpion Dual RGB ILS in automatic, Master/Slave, manual or sound-activated mode. Wireless control is also possible using the optional IRC-6 remote.

Highlights

• Dual RGB FAT BEAM™ aerial effect laser, perfect for events with fog or haze
• D-Fi™ USB compatibility for wireless Master/Slave or DMX control
• Create perfect color combinations by mixing red, green, and blue laser diodes

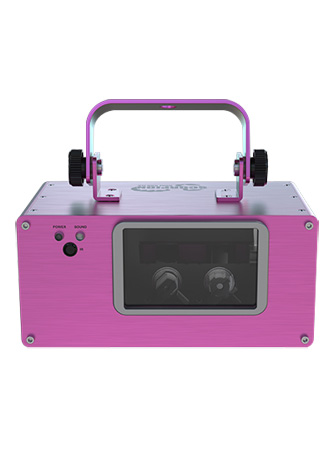

• Unique dual mirror output that makes a great centerpiece or side accent in pairs
• 32 built-in patterns, including the popular "Laser Sky" effect
• Wireless control using the optional IRC-6 remote
• Generate customized and ever-changing laser shows using programmable pan, tilt, and zoom effects with separate X, Y, and Z rolling effects and scan speed adjustment
• Fully FDA compliant, variance-free and ready to use right out of the box
• Easily operate in automatic, Master/Slave, manual or sound-activated mode
• Fits best in the CHS-40 VIP Gear Bag

Specifications

• DMX Channels: 10

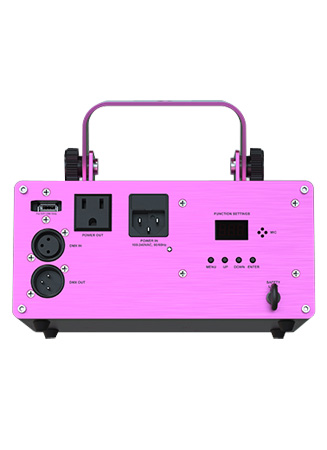

• DMX Connectors: 3-pin XLR
• Pan and Tilt: 30°/30°
• Light Source: 638 nm/30mW (red) laser diode,
  520 nm/20 mW (green) laser diode,
  450 nm/ 50 mW (blue) laser diode
• Strobe Rate: 0 to 27 Hz
• Zoom Angle: 1° to 29°
• Coverage Angle: 36°
• Power Linking: 27 units @ 120 V; 48 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 20 W, 0.3 A @ 120 V, 60 Hz
  19 W, 0.2 A @ 230 V, 50 Hz
• Weight: 3.8 lb (1.7 kg)
• Size: 8.5 x 7 x 6.3 in (216 x 179.5 x 161 mm)
• Approvals: CE, FDA
• Bracket Mounting Hole: M12
• Ambient Operating Temperature: 59 °F to 95 °F (15 °C to 35 °C)
• Classified per 21 CFR 1040.10 & .11
• Complies with US FDA CDRH laser safety standards 21 CFR 1040.10 & 1040.11
• Optional Controllers: IRC-6

WHAT'S INCLUDED

• Scorpion Dual RGB ILS
• Power cord
• Quick Reference Guide
• User Manual
