Chauvet Obey 40 D-Fi 2.4

Description

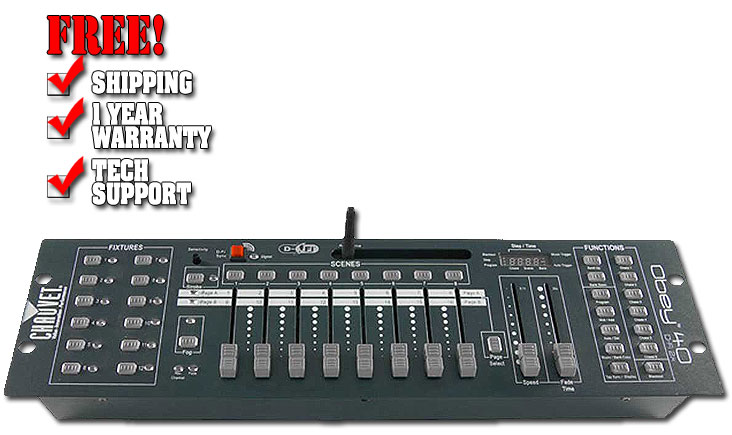

Obey™ 40 D-Fi 2.4 wirelessly controls up to 12 fixtures with 16 DMX channels, each using 30 banks on eight scenes — or 240 pre-programmed scenes. A built-in D-Fi™ 2.4Ghz transmitter wirelessly broadcasts DMX directly to Freedom™ lights or to D-Fi™ 2.4 receivers. Customize effects with MIDI compatibility, adjustable sound sensitivity, and fog and strobe control.

Features:

• Universal wireless DMX controller capable of handling all the complexities of today's lighting fixtures
• Easily send wireless DMX signals across the room using the built-in D-Fi™ 2.4GHz transmitter
• Controls up to 12 intelligent lights with up to 16 channels each
• Compatible with all D-Fi™ systems operating on 2.4GHz
• Customize looks with adjustable strobe and fade effects, audio sensitivity and fade times for all playback modes
• Design up to 240 scenes using 192 channels of DMX control and 30 banks of 8 scenes
• Enhance light shows using 6 sets of chase effects containing 240 scenes
• Increase effects with fog and strobe control, reversible sliders, beat activation, tap-sync and auto run
• Ability to grab any fixture on the fly, reassign channels and sequentially link chases
• Increase flexibility with MIDI compatibility
• Conveniently mounts using the 3-space (3U) mounting rack
• DMX Connectors: 3-pin
• Rackmount: 3U
• Max unobstructed distance: 656ft (200m)
• Operating frequency: 2.433 - 2.48GHz
• RF output: 18.5dBm
• Antenna connection: RP-SMA
• Input Voltage: 12VDC 500mA (external power supply: 100 - 240VAC 50/60Hz)
• Weight: 5.7lbs (2.6kg)
• Size: 19 x 3.5 x 6.7in (483 x 89 x 171mm)
• PDF Spec Sheet
