Martin M-DMX

Overview

M-DMX can use M-PC as software that will run on a Windows PC and can be downloaded here.

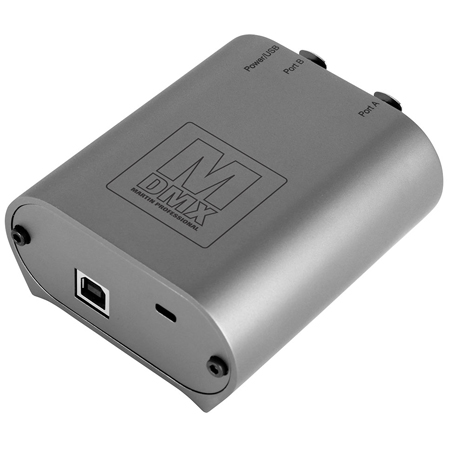

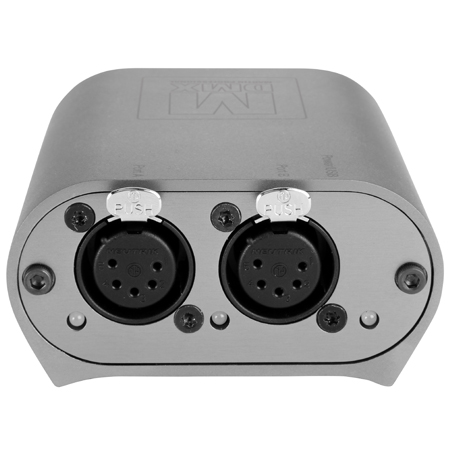

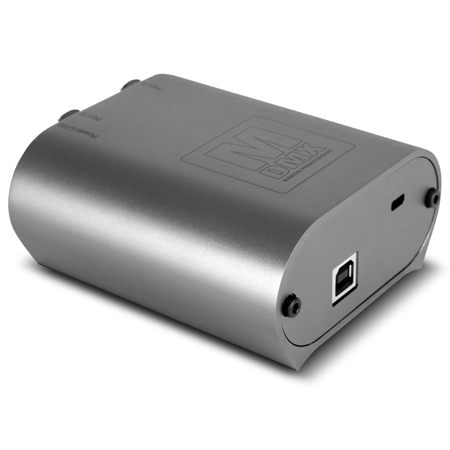

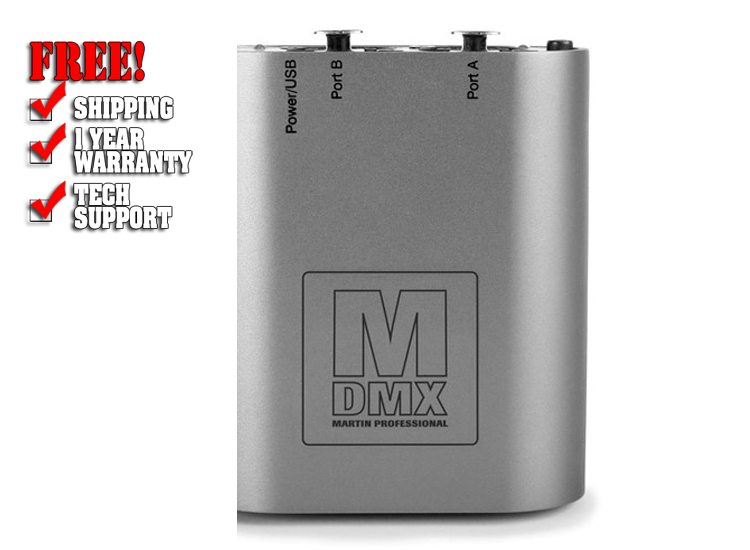

The Martin M-DMX Interface features two 5-pin XLR female connectors, providing two DMX 512 universes via USB from any Windows-based PC. It communicates with Martin M-PC, all Martin M-Series consoles, Martin LightJockey™ (with Martin One-Key™) and Martin ShowDesigner 6™. When used together with M-PC, M-DMX allows bidirectional RDM communication, letting you change settings or addresses and access sensor data remotely on RDM compatible fixtures. As a bonus, M-DMX unlocks 2 universes for the M-PC Free Edition up to 4 universes can be unlocked with no Martin One-Key™ dongle required, making the M-DMX a fully-featured lighting control system.

Plug–and–play solution that comes complete with USB cable and installation notes

Convenient, space-saving stackable design

2 DMX universes - configurable for in/out, DMX 512-A (RDM-compatible) and upload of fixture software files (MU3)

Features

• Plug–and–play solution: comes complete with USB cable
• and installation notes
• 2 DMX universes - configurable for in/out
• DMX 512-A (RDM-compatible)
• Upload of fixture software files (MU3)

Specifications

Physical

• Length: 92 mm (3.7 in)
• Width: 82 mm (3.3 in)
• Height: 41 mm (1.7 in)
• Weight: 245 g (0.6 lbs.)

Control/User Interface

• Capacity: Up to two DMX universes
• Configuration and management: Application (e.g. LightJockey™, M-PC™)
• Device status: 3 x multicolor status LEDs

Construction

• Housing: Aluminum
• IP Rating: IP20
• Non-domestic use in dry location only

Connections

• DMX data: 2 x 5-pin locking XLR, both configurable for DMX in/out
• PC/controller: USB 2.0
• K-Lock security slot

  Electrical

  • Power: 5 VDC over USB
  • Maximum current: 300 mA

  Thermal

  • Ambient temperature: 0° – 50° C (32° – 122° F)

  Included Items

  • USB cable, 1.5 m (4.9 ft.)
  • Martin One-Key™ dongle (included with P/N 90737060 only)

  Accessories

  • M-Series Submaster Module: P/N 90732170
  • M-Series Playback II Module: P/N 90732190
  • Martin™ M-Touch: P/N 90737040
  • Martin™ M-Play: P/N 90737030
  • Martin™ M-Sync SMPTE USB: P/N 90703020
  • Martin One-Key with M-PC Pro-64 /LJ-4 License: P/N 70758460
  • Martin M-PC Pro-64 / LJ-4 License: P/N 39808015
  • M-PC Ultimate Expansion: P/N 39808046

  Ordering Information

  • Martin™ M-PC 2U including Martin™ M-DMX: P/N 90737070
  • Martin™ M-PC Pro-64 / LJ-4 Controller Kit including Martin™ M-DMX: P/N 90737060

  Downloads

  • Martin M-DMX_leaflet_HI
  • Martin M-DMX_Presenation
