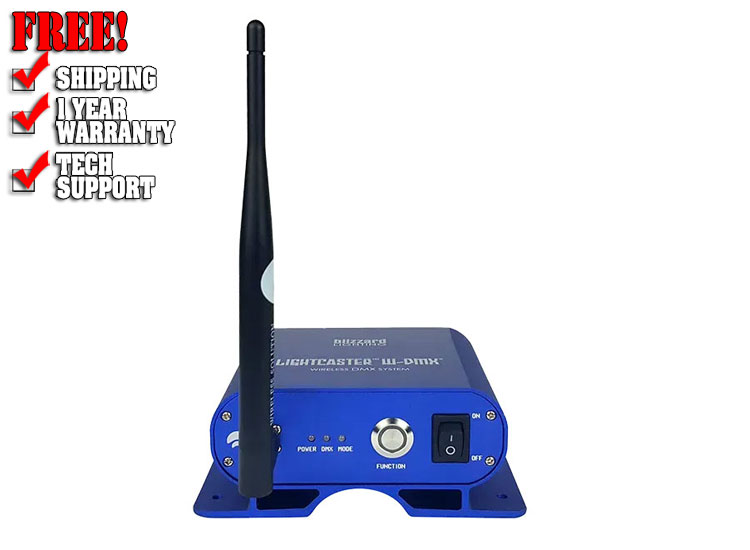

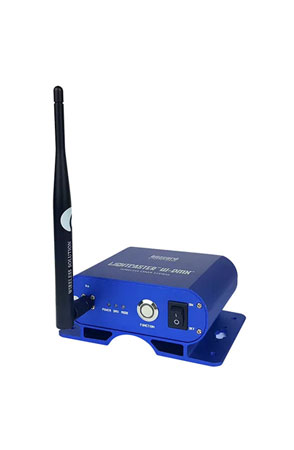

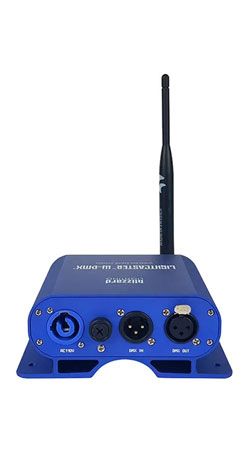

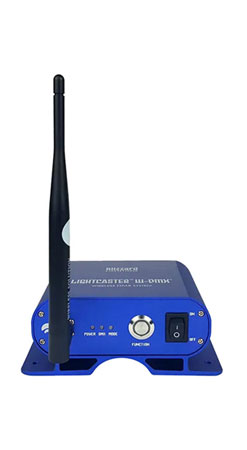

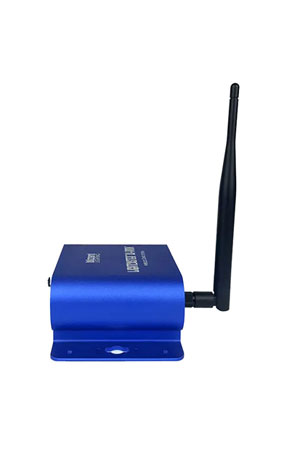

Blizzard LightCaster™ W-DMX® Receiver

• One button operation 2.4Ghz W-DMX wireless system
• W-DMX G5 Protocol - backward compatible with G4S/G3
• Compatible with all DMX512 compliant equipment

Ultra Stable Wireless DMX

Meet the LightCaster™ W-DMX® 2.4 GHz wireless DMX system. A typical setup would consist of a Lightcaster™ WDMX™ Transceiver (to transmit signal) and at least one LightCaster™ W-DMX® Receiver to receive the signal. Users can expect a wireless range of up to 500 meters (line-of-sight), and leave any worries behind concerning loss of signal due to its built-in FHSS technology.

User-Friendly

Setting up wireless DMX with the LightCaster™ W-DMX® is a very simple procedure. Each of the units have a single function control button, plus a power, DMX, and mode status LED indicator. Each unit also features an integrated clamp for mounting to 2" truss

Power & Current

• Voltage: 110VAC, 50-60 Hz

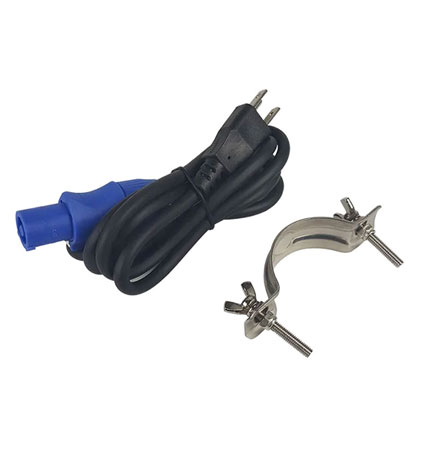

• powerCON® compatible power input

Dimensions

• 2.4" x 4.7" x 5.7"
• 2.2lbs

General Specs

• One button operation 2.4Ghz W-DMX® wireless system
• W-DMX G5 Protocol - backward compatible with G4S/G3
• Compatible with all DMX512 compliant equipment
• FHSS (Frequency-Hopping Spread Spectrum) technology
• Integrated clamp for mounting to 2" truss

Tech Specs

• Receiver sensitivity: 98dBm
• Max Operating Range: 500 meters (line-of-sight)
• Latency: < 5mS
• Antenna type: 2dBi
