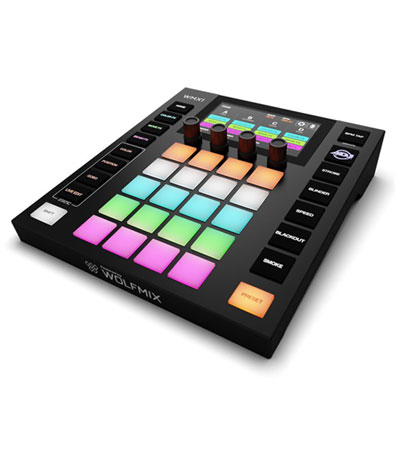

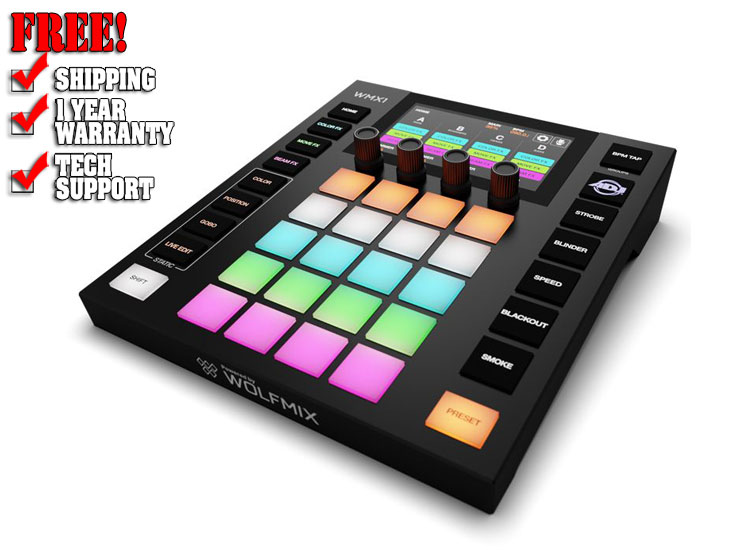

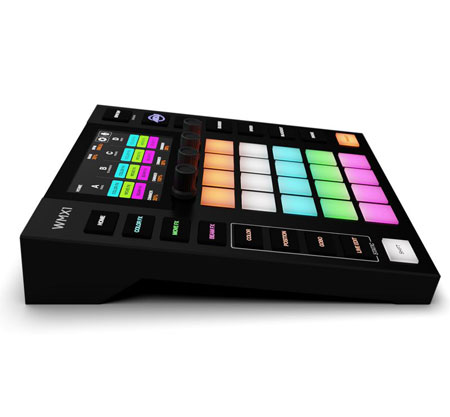

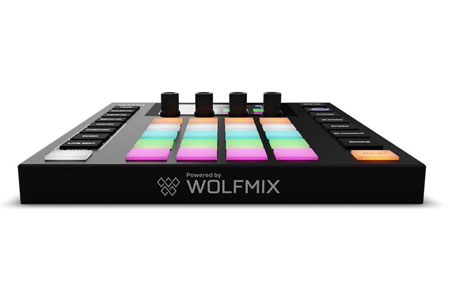

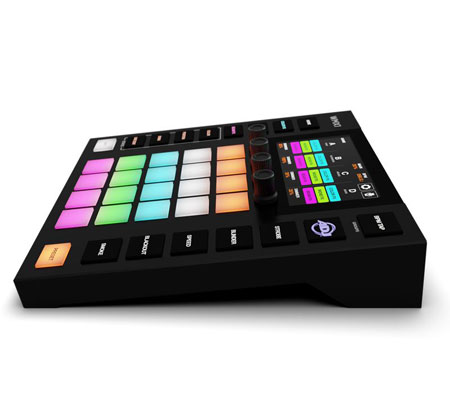

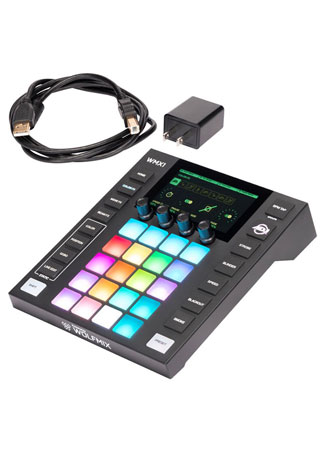

ADJ WMX1 Mk2

A Color Picker interface on the screen, which allows easy selection of just the right hue, can be used both for RGBW and RGBWA+UV LED fixtures. Other useful features include automatic matching of similar GOBOs across different fixture types, Fixture FLIP function (for reversing beam order), Fixture SPLIT function (for splitting up multi-FX bars) and Auto-recovery of the active project (no manual saving needed).

Despite its low weight (2.36lb / 1070g) and compact dimensions (7.68" x 8.66" x 2.44" / 195 x 220 x 62mm [LxWxH]), the WMX1 is extremely robust. Inside its tough ABS plastic shell, the unit features a powder-coated steel base plate and reinforced back plate. Its 220Mhz CPU with ARM core and 8MB RAM / 16MB flash memory allow for extremely complex effects to be layered and run independently across multiple groups all in real time.

The WMX1 Mk2, powered by Wolfmix, has received two 2022 innovation awards from PLASA and Pro Mobile Magazine.

Specifications

Setup

• Standalone (no computer needed)
• Compatible with any DMX device
• Standard unit comes with 2 DMX universe but up to 2 additional universes are available as add-ons, which are sold via the WTOOLS app.
• Up to 680 fixtures & beams
• Up to 50 fixture types
• Up to 5000 fixture features (color/gobo etc...)
• 8 fixture groups
• 6 projects
• 15000+ available fixtures (3500+ on the controller)
• DMX address, fixture order & group setup
• Use as a DMX splitter with DMX universe mapping

Palettes & FX

• Color FX module with 8 effect types & 16 definable colors
• Move FX module with 8 effect types
• Beam FX module with 8 effect types
• 6 Flash buttons for controlling Special FX, Strobe, Blinder, Speed, Blackout & Smoke
• Static color palette with 10 user definable colors per group & gradient control
• Static position palette with 5 user definable positions per group with fade & fanning
• Gobo palette with 5 user definable gobos per group
• 20 namable live edit buttons with flash triggering mode and 'Park' function
• 100 namable presets for storing snapshots with hold and fade timings
• Preset playback cue list- all presets or per page of 20 presets

Control & Sync

• Group and master dimming with encoder acceleration
• Group FLASH, FULL and Blackout
• 16 bit Pan/Tilt control
• Multi-beam LED bar control
• FX music pulse sync from Microphone or Line-In
• FX BPM sync with Ableton Link, OS2L or BPM TAP
• Effect Speed, Phase, Order, Size, Fade, Fan & Flick
• Live control of move FX registration point
• Global FX speed and freeze control
• Map DMX IN with group dimmer and patch to output channels*
• WLINK - sync with another Wolfmix controller

Built-in tools

• Fixture Builder
• Fixture calibration tool, to limit the area of moving fixtures
• X-Y touch controlled positioning grid
• RGBW touch controlled color picker
• 8-step real time sequencer for creating beam and move FX
• Live view of DMX levels with default value override and DMX channel tester
• Beam Editor to override Min and Max values used in generated FX

Other neat features

• Calibrate and RGB, White, Amber, UV mixing with automatic fixed color wheel translation
• Automatic matching of similar gobos across different fixture types
• Timed release of flash and preset buttons
• Fixture FLIP function, for reversing beam order
• Fixture SPLIT function, for splitting up multi-FX bars
• Lock full controller, or lock editing with a password
• Project & fixture backup with WTOOLS app
• Offline 3D visualization with Easy View & WTOOLS over USB*
• Auto-recovery of active project (no manual saving needed)
• Import different fixture setups into the same project
• Starts in under 2 seconds. Starts sending DMX in under 1 second
• Factory firmware startup recovery mode for times of crisis
• *some features require an add-on purchase available through the WTOOLS app

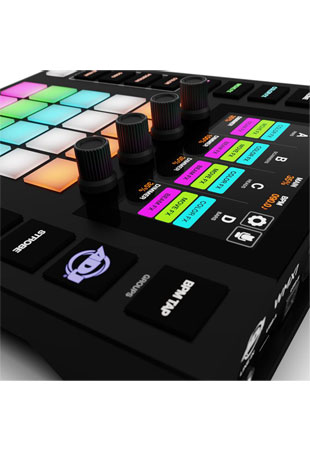

Display

• 4.3" Color TFT with tinted glass
• Capacitive touch

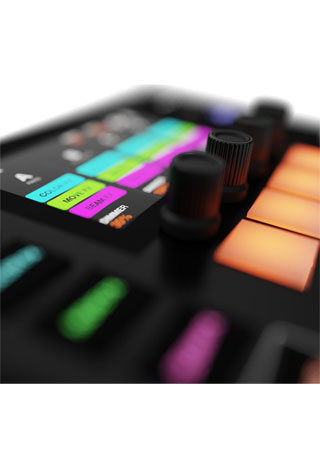

Encoders

• Full body alloy
• Incremental push with acceleration

Button pads

• 37 Silicone buttons with matte oil finishing
• LED color backlit

Processing

• 220Mhz CPU with ARM core
• 8MB RAM
• 16MB Flash

Audio

• Sync FX with the music
• Analog audio peak detection circuit
• Built in microphone with auto-gain
• 3.5mm jack socket

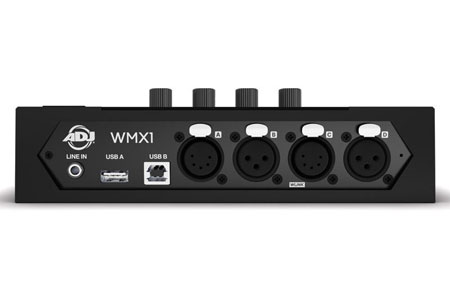

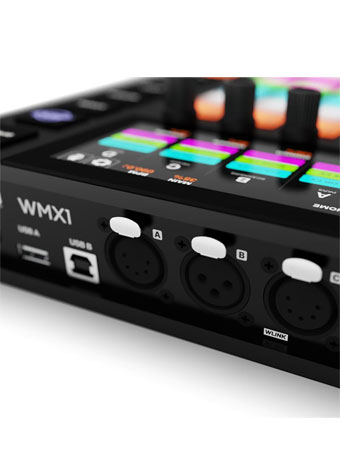

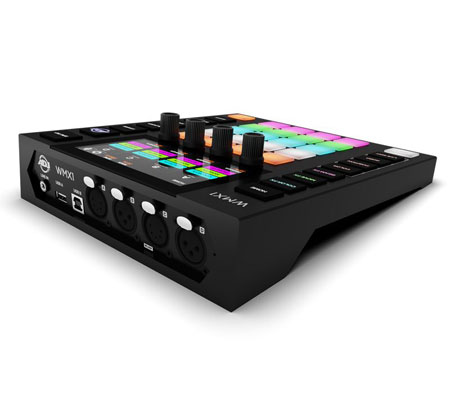

DMX

• 2x 3pin DMX OUT XLR connectors
• 1x 5pin DMX OUT XLR connector
• 1x 5pin DMX IN/OUT XLR connector with WLINK

USB

• USB B powered
• USB A port for MIDI over USB and project loading & back-up
• Sync with Ableton Link & OS2L via a computer
• Link with MIDI faders and sync with MIDI clock
• Backup projects and fixtures to a memory stick

Housing

• ABS Plastic
• Powder-coated steel base plate with 100mm VESA (M4 6mm max)
• Powder-coated steel reinforced back plate

Size & weight

• 195 x 220 x 62 mm / 7.68 x 8.66 x 2.44 in
• 1070g / 2.36lb

Optional Upgrades

• Easy View 3D Visualizer: $99
• WLINK (+DMX IN): $49
• Additional DMX universes (Up to 2 more can be purchased): $99 ea.

Specification subject to change without notice.
