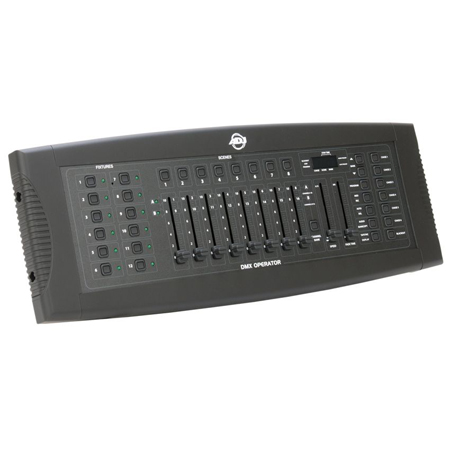

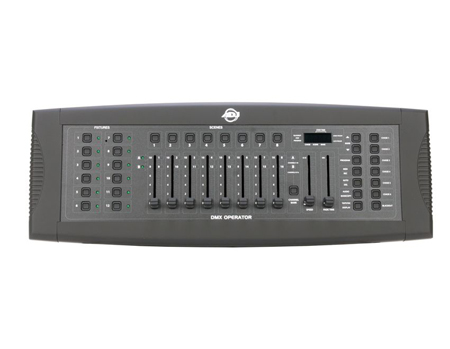

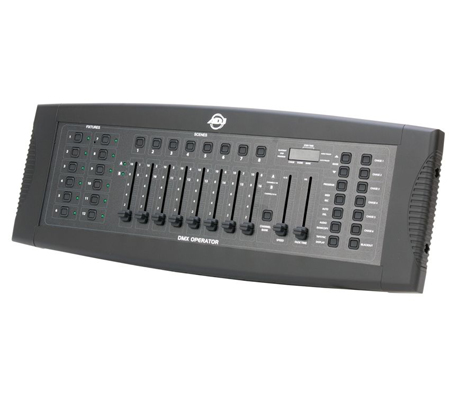

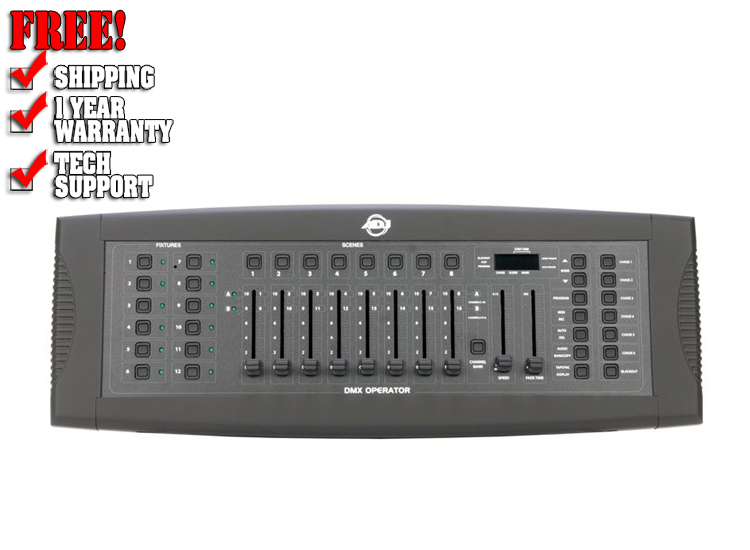

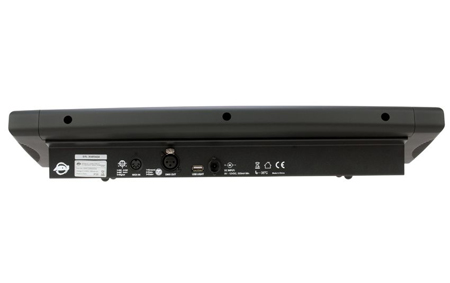

ADJ DMX Operator

A top DMX controller, ADJ's DMX Operator controls up to 192 DMX channels. With it, you can record up to 6 chases which you can then playback with separate fade and step speeds. The 8 individual faders provide easy controllability for any DMX 512 intelligent fixture.

ADJ's DMX Operator Controller has 12 individual fixture buttons which allow you to control up to 12 separate intelligent lighting fixtures of up to 16 DMX channels each. With ADJ's DMX Operator Controller, you can record up to 6 chases with separate fade times and step speeds. The 8 individual channel faders provided you with easy controllability of any DMX512 moving light.

Specification

• Control up to192 DMX channels
• Control up to 12 separate intelligent lights with up to 16 DMX channels per fixture
• Fixtures with less than 16 DMX channels may be combined on 1 fixture button to optimize channel space
• Record up to 6 programmable chases with separate fade times and step speeds
• 8 individual faders provided you with easy channel control for your intelligent light or dimmer packs
• MIDI controllable
• DMX-512, 3 pin XLR signal
• Built-in Microphone for chase step activation
• Power input: DC 9V-12V, 220 mA min. power supply included, 120V or 220V operation (not multi-voltage)
• Dimensions: 5.25" L x 19" W x 2.5" H - 19 in. / 3 r.m. spaces
• Weight: 5 lbs
