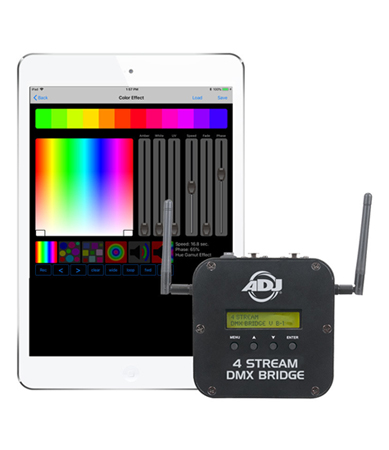

ADJ 4 Stream DMX Bridge

Description

4 STREAM DMX BRIDGE is ideal for small production events, nightclubs, bars or any event or venue which requires hidden data cables, and who are looking for a robust, 4 DMX universe APP based lighting control solution.

Specifications

FEATURES:

• Seamless Wireless Bridge To DMX Compatible Devices
• Supports Standard Network Protocols, Art-Net, sACN and WiFLY
• Private Standalone 2.4 GHz DSSS WiFi Network
• No Existing Network Needed or Connect to External Network
• Supports up to 4 DMX Universes (3 wired and 1 WiFLY wireless)
• Control Compatible WiFly Devices up to 2,500 Feet Away
• 14 WiFLY Wireless Channels
• Easy Clamp/Truss Mounting

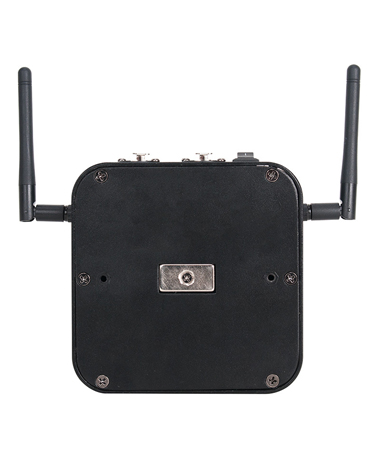

• Magnetic Back for Easy Attachment to Metal Surfaces
• Easy Configuration Using Windows or iOS Apps

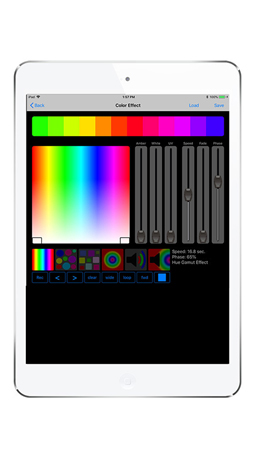

• Dedicated control APP with 4 DMX universes available in the Apple APP Store

APP compatibility: Compatible with iPad only. Requires iOS 9.3 or later.

CONTROL / CONNECTIONS:

• Private Standalone 2.4GHz DSSS WiFi Network*
• *Up To 75 feet (22.8m) WiFi Range
• (4) DMX Universes
• Supports Standard Networking Protocols,
• DMX-512, Art-Net, sACN, and WiFLY
• **Up To 2,500 feet (762m) WiFLY Range
• 4 Stream Bridge Windows and iOS APPs

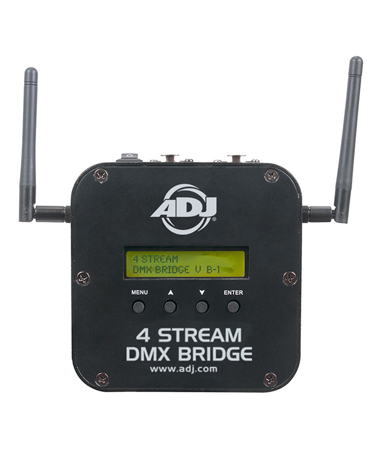

• 4-Button Control Panel
• LCD System Menu Display
• Separate WiFi and WiFLY Antennas
• (3) 5pin DMX Outputs
• (1) Mini USB Port

SIZE / WEIGHT:

• Length: 4.92" (125mm)
• Width: 6.88" (175mm)
• Vertical Height: 2.44" (62mm)
• Weight: 1.06 lbs. (0.48kg)

ELECTRICAL:

• DC 9-12V 1Amp

APPROVALS:

• CE | cETLus
