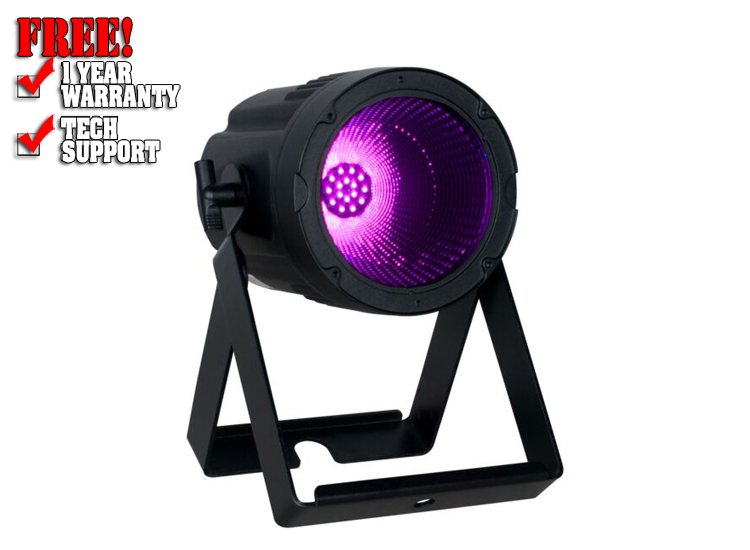

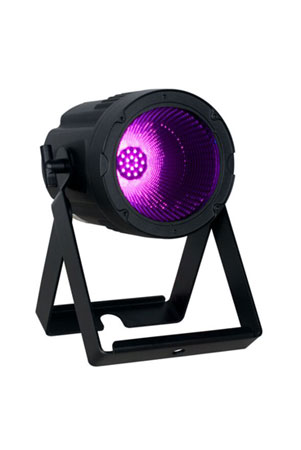

Elation Prisma PAR 50

PRISMA PAR 50™ is an exterior IP65 rated UV wash par luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 50 degree wide beam angle from the large internal LED reflector. Features includes a user friendly digital 2.5 inch LCD touch screen control panel, intuitive DMX-512 and RDM control, dual adjustable mounting yokes, a durable aluminum housing, and IP65 DMX 5pin XLR and locking power in/out connections.

Features

• IP65 Rated Exterior High-Power UV Wash Par Luminaire
• 50 Degree Wide Beam Angle
• 365nm Peak True UV Wavelength
• Zero Visible Light Output

Specifications

SOURCE

• (16) 2W High Power UV Diode LEDs
• 20,000 Hour Average LED Life*
• *Test lab conditions. May vary depending on several factors including but not limited to:
• Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

• 50 Degree Wide Beam Angle
• 365nm True UV Peak Wavelength

EFFECTS

• High Speed Electronic Strobe
• Variable Dimming Curve Modes

CONSTRUCTION

• Rugged IP65 Rated Aluminum Housing

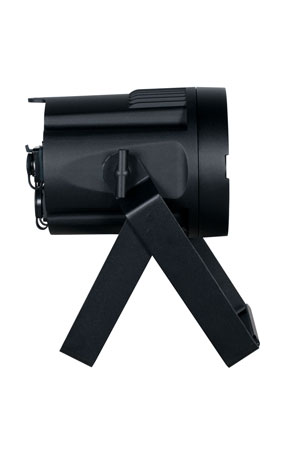

• Dual Adjustable Mounting Yokes

CONTROL

• Multiple DMX Channel Modes
• Onboard 4 Button Touch Control Panel
• DMX-512 and RDM Protocol Support

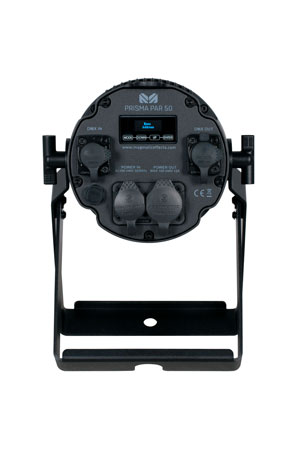

CONNECTIONS

• Locking 5pin XLR Connector In/Out
• IP65 Locking Power Connector In
• With Wired Digital Communication Network

ELECTRICAL

• AC100-240V 50-60Hz
• 83W Max Power Consumption

THERMAL

• 14°F to 113°F (-10°C to 45°C)
• Air Cooled

OPTIONAL ACCESSORIES

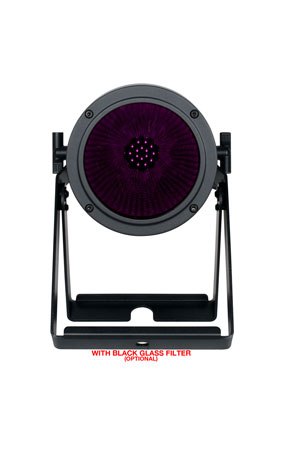

• Prisma Par Black Glass (PSG852)

SIZE / WEIGHT

• Length: 7.55 in. (192mm)
• Width: 5.90 in. (150mm)
• Vertical Height: 12.37 in. (314.3mm)
• Weight: 7.05 lbs. (3.2kg)

APPROVALS / RATINGS

• CE | cETLus | IP65
