ADJ Encore Burst UV IP

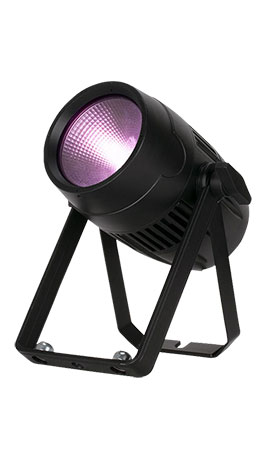

The ADJ Encore Burst UV IP is a high intensity, IP65 outdoor rated UV Wash. The fixture is constructed of a rugged Die Cast housing. The fixture features a UV LED. It has selectable dimming curves, strobe effect, 4-button LED menu system, 5-pin DMX In/Out plus IP65 power locking IN/Out connections to daisy chain power (rubber protective covers over connections).Wave Length 365nm

The ADJ Encore Burst UV IP is a high intensity, IP65 outdoor rated Par light with a 50W Ultraviolet C.O.B. LED with a UV wavelength of 365nm. The fixture is constructed of a rugged metal housing with a 50-degree beam angle.

The Encore Burst UV IP has selectable dim modes, strobe effect, 4-button LED menu system, 5-pin DMX In/Out plus IP65 power locking In/Out connections to daisy chain data and power (rubber protective covers over connections).

Specifications

Light Source:

• 1x 50W C.O.B. Ultraviolet LED (wavelength: 365nm)
• 50-degree Beam Angle
• 365nm wavelength
• 50,000 Hour Average LED Life

Features:

• Control Protocol: DMX & RDM
• DMX Modes: 4 (1/2/3/6)
• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• Dim Speed control (0.1~10 Seconds)
• Dimming: 0 - 100%
• Strobe & pulse control
• Adjustable LED Refresh Rates (900~25k Hz)
• Adjustable Gamma Settings (2.0-2.8)
• With Wired Digital Communication Network
• Display: OLED display with 4-button touch menu

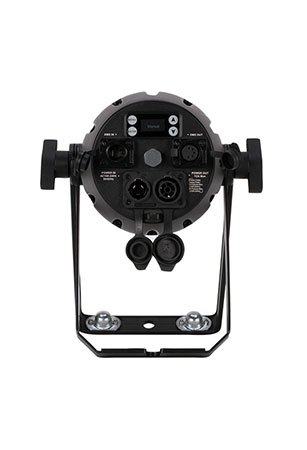

Connections:

• Data Input: IP65 rated 5pin DMX In/Out
• Power Input: IP65 power locking In/Out (with protective rubber caps)
• Safety Cable Loop
• Scissor yoke with Omega bracket attachment

Control:

• RDM (Remote Device Management)

Electrical:

• 100-240V 50Hz/60Hz (Auto Sensing)
• Max Power Consumption: 63W

IP65 Rated:

• Outdoor Rated: protects from dust, sand, moisture, liquid. 6 (Protection against Dust); 5 (Protection against Water)

Dimensions / Weight:

• Length: 9.21" (234mm)
• Width: 9.8" (249mm)
• Height: 12.12" (308mm)
• Weight: 8.1 lbs. (3.6kg)

What's Included:

• 1x Omega Bracket
• 1x IP65 power locking power cable

Approvals:

• cETLus approved (Control #4000358)

• User Manual
