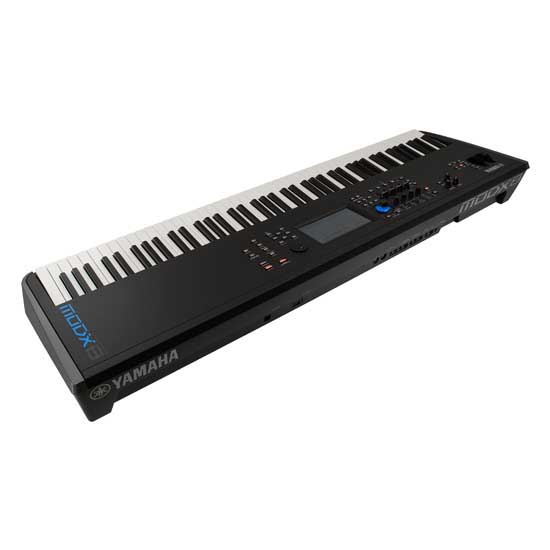

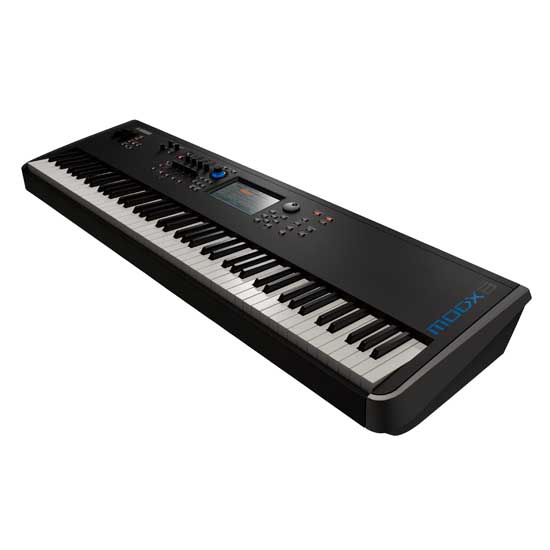

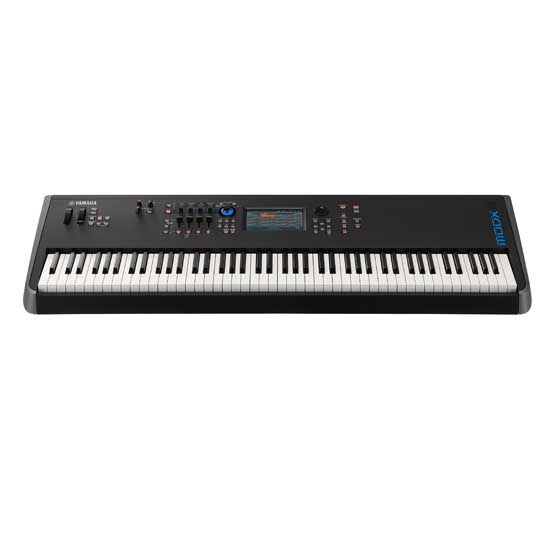

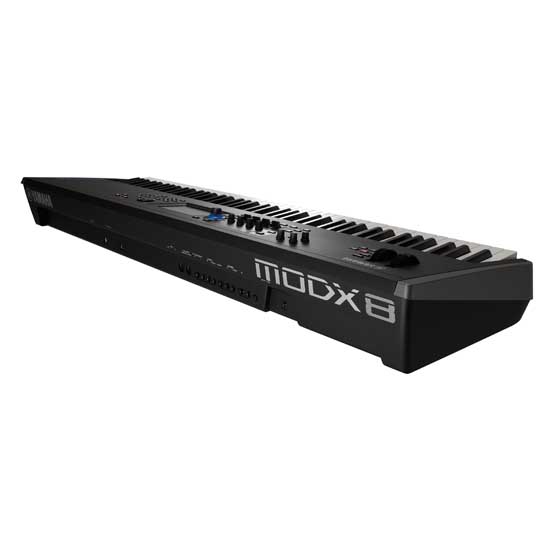

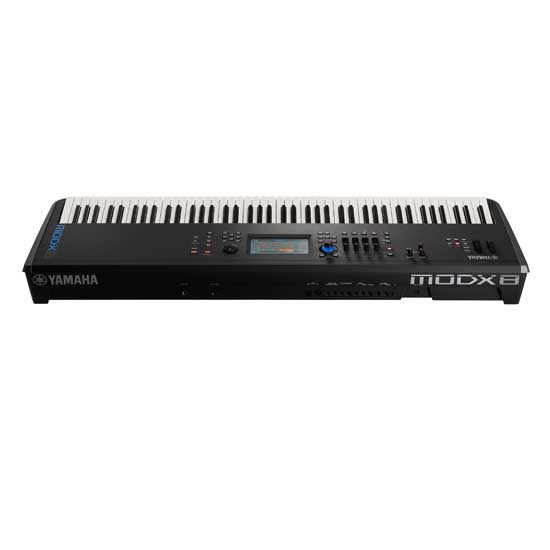

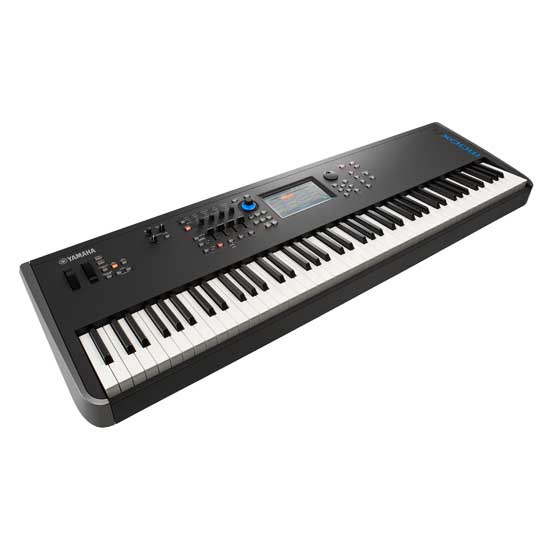

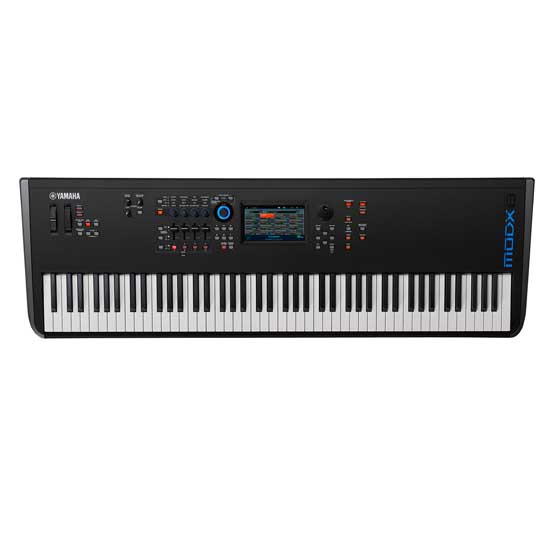

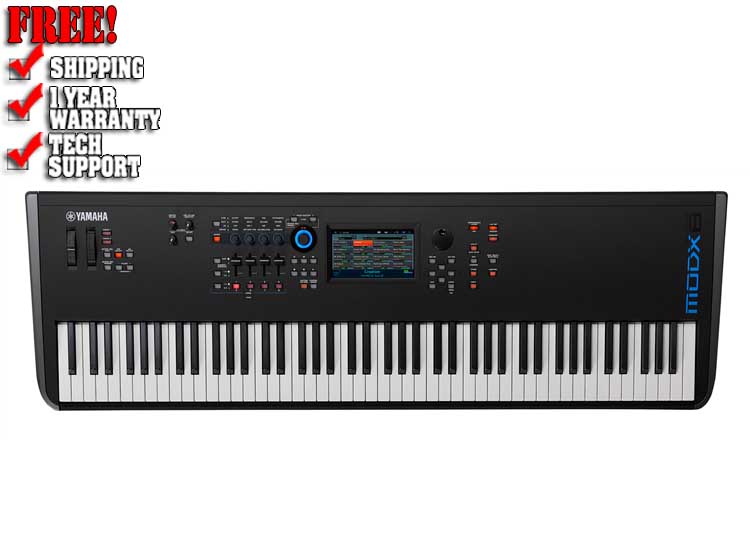

Yamaha MODX8+ 88-Key Synthesizer Keyboard

FM-X

FM-X is an amazingly sophisticated pure synthesizer engine capable of producing classic '80s or cutting-edge, EDM sound with incredible dynamic range, power and fidelity. MODX features an 8-operator FM architecture and 64-note polyphony, allowing for a massive array of sound design options.

192-NOTE TOTAL POLYPHONY

MODX features 128-note stereo AWM2 polyphony and 64-notes of FM-X polyphony. Due to the unique architecture of MODX and MONTAGE, this polyphony is always available without latency or compromising other features.

SSS (Seamless Sound Switching)

Seamless Sound Switching (SSS) lets you change performances seamlessly without any cut-off in envelope or effects. This is perfect for live performances where you end one song and start another without stopping.

INTEGRATEDFLASH

MODX includes 1 GB of non-volatile user flash memory with high speed reading/writing for your own custom samples or synth libraries from yamahamusicsoft.com.

EFFECTS

From high definition reverbs to incredibly detailed Virtual Circuit Modeling (VCM) effects, MODX is loaded with DSP innovation, power and, most importantly, sound quality. Use effects like Beat Repeat, Vinyl Break or Bit Crusher to get EDM sound. The Spiralizer effect creates the auditory illusion of a tone continually rising or falling in pitch without getting higher or lower. You can even add a compressor with sidechain for a modern "ducking" effect. Or go retro with vintage effects like Analog Delay, VCM Phaser or a variety of Amp Simulators. Piano players will appreciate piano-focused effects like Damper Resonance for a super-realistic piano experience and the HD reverbs that let you put yourself in any performance space.

A/D INPUT

Coupled with two A/D inputs, MODX is a perfect centerpiece for any professional recording studio or live computer rig.

SIDECHAIN

Automatically control the dynamic behavior of one part from another. Sidechain is very popular in modern dance music where a pad or other sustain part is "keyed" to the kick drum. When the kick drum plays, it ducks down the sustained part creating a "pumping" rhythmic effect.

MULTI-CHANNEL USB AUDIO INTERFACE

As expected for modern computer-based music production, MODX features a professional 4-in/10-out, multi-channel USB audio interface. A single-cable connection replaces the need for an external audio interface. iOS compatible.

CONTROL

An amazingly sophisticated pure synthesizer engine capable of producing classic '80s or cutting-edge, EDM sound with incredible dynamic range, power and fidelity. MONTAGE features an 8-operator FM architecture and 128-note polyphony, allowing for a massive array of sound design options.

Content

Every artist wants to sound unique. Take control and stand out from the crowd. Bring the sophistication of music production automation to realtime live performance with Motion Control.

SUPER KNOB

The Super Knob allows simultaneous control of up to 128 parameters in a single Performance. This means you can control nearly anything from mix functions like volume, pan and effect sends to detailed synth parameters like filters, LFOs and Operators.That' s 128 parameters?SIMULTANEOUSLY!The Super Knob can even be assigned to a second FC7 foot controller making it easy to manipulate the sound when playing with both hands.

MOTION SEQUENCES

Motion Sequences are tempo-synchronized, completely customizable control sequences that can be assigned to virtually any synthesizer parameter and provide incredible new ways of creating sound.Motion Sequences also have dedicated controls on the front panel making it easy to manipulate and change in real-time, providing incredible interactivity and expression.

ENVELOPE FOLLOWER

The Envelope Follower converts audio into a control source for control of virtually any synthesizer parameter. For example, a drum loop could drive effects parameters for a cool rhythm or a vocal recording could control multiple parameters for a "talking" synthesizer. The audio can even be a "live" source through the A/D input.

AUDIO BEAT SYNC

ABS (Audio Beat Sync) detects the beat of and external device like an electronic drum kit, drum machine or audio player plugged into the A/D input and synchronizes the MODX Arpeggiator, Motion Sequencer or Songs to the tempo of the external input. The MODX synthesizer "listens" to live music and plays in time.

MOBILITY

Designed for musicians on the go, MODX is compact, lightweight and mobile.

LIGHTWEIGHT

The MODX6 weighs in at 14.6 lbs, the MODX7 at 16.3 lbs and the 88-note weighted Graded Hammer Action MODX8 comes in at a svelte 30.4 lbs.

Specifications:

• Dimensions
  • Width : 1,333mm (52-1/2")
  • Height : 160mm (6-1/16")
  • Depth : 404mm (15-7/8")
• Weight : 13.8 kg (30 lbs 7 oz)
• Control Interface
  • Keyboard
    • Number of Keys : 88
    • Type : GHS Keyboard
    • Initial Touch : Yes
    • Aftertouch : No
• Tone Generator : Motion Control Synthesis Engine AMW2: 8 Elements FM-X: 8 Operators, 88 Algorithms
• Multi Timbral Capacity : 16 Parts (internal), Audio Input Parts (A/D*, USB*) *stereo Part
• Wave : Preset: 5.67 GB (when converted to 16 bit linear format), User: 1.00 GB
• Performance : Approx. 2,000
• Filter : 18 types
• Maximum Polyphony : AWM2: 128 (max.; stereo/mono waveforms) FM-X: 64 (max.)
• Effects : Reverb x 12 types, Variation x 76 types, Insertion (A, B) x 76 types*, Master Effect x 15 types *A/D part insertion x 71 types (Preset settings for parameters of each effect type are provided as templates) Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands)
• Controllers : Master Volume, AD Input Gain knob, USB Volume, Pitch Bend wheel, Modulation wheel, Control Sliders x 4, Knobs x 4, Super Knob, Data dial
• Display : 7" TFT Color Wide VGA LCD touch screen

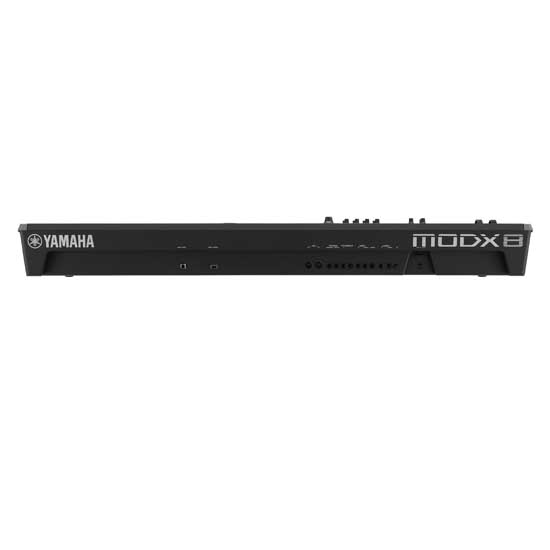

• Connectors : [USB TO DEVICE], [USB TO HOST], MIDI [IN]/[OUT], FOOT CONTROLLER [1]/[2], FOOT SWITCH [ASSIGNABLE]/[SUSTAIN], OUTPUT [L/MONO]/[R] (6.3 mm, standard phone jacks), [PHONES] (6.3 mm, standard stereo phone jack), A/D INPUT [L/MONO]/[R] (6.3 mm, standard phone jacks)
• Power Consumption : 16 W (when using PA-150B AC adaptor)
• Accessories : AC adaptor (PA-150B or an equivalent recommended by Yamaha*), Owner's Manual (this book), Cubase AI Download Information *May not be included depending on your area. Check with your Yamaha dealer.
• Live Sets : Preset: 256 and more, User: 2,048
• Performance Recorder
  • Tracks : 16 Sequence tracks, Tempo track, Scene track
  • Recording type : Real time replace, Real time overdub, Real time punch in/out
  • Note Capacity : Approx. 130,000 notes
  • Note Resolution : 480 ppq (parts per quarter note)
  • Tempo (BPM) : 5 - 300
  • Songs : 128 songs
  • Arpeggio : Parts: 8 Parts simultaneous (max.), Preset: 10,239 types User: 256 types
  • Sequence formats : MODX original format, SMF formats 0, 1
