Roland System-1m Plug-out Synthesizer

Roland AIRA System-1m Semi-modular Synthesizer at a Glance:

• Flexible format lets you create music the way you want
• Modular capabilities for even more Eurorack versatility
• Plug-out technology lets you tap into more synth sounds
• AIRA Link gives you audio and MIDI over USB

Flexible format lets you create music the way you want

The combo of modular synth functions, powerful plug-out capabilities, and flexible DAW integration gives you creative possibilities unique to the System-1m. In standalone operations, this synth can be rack-mounted or set up on a table and powered by standard AC power. To add the System-1m to your Eurorack, simply use the included adapter cable tap into the integrated case power. And you'll have the playability you want because the System-1m can be played from any standard MIDI keyboard or receive MIDI messages from your DAW just like any other synth module you use. Whether you're staying in the AIRA multiverse, configuring a fully modular system, or creating your own unique combination, the AIRA System-1m synthesizer can be integrated easily.

Modular capabilities for even more Eurorack versatility

If you love modular synths for the character they bring to your music, along with all of the sonic versatility you get from a modular synth system, integrating the System-1m into your current 84 HP Eurorack modular synth setup to get an even broader range of sound will be easy. While it's a powerful synth on its own, the System-1m has all of the patching capabilities you want in a new member of your modular synth rig. You have CV and Gate patch points that light up and are color-coded, so it's easy to know what's where when you reconfigure your signal path.

Plug-out technology lets you tap into more synth sounds

We've all heard of plug-ins, but Roland's Plug-out technology takes software integration to a whole new level. Although the System-1m appears in every way to be an analog synth, it's really a sophisticated standalone computer masquerading as an analog synth - which makes it incredibly cool. You can completely reprogram the entire sound engine of the System-1m by uploading new plug-out software synths to it. These include a host of classic Roland instruments, many of which will take full advantage of the System-1m's extensive hands-on controls. Best of all, once you've uploaded a new synth to the System-1m from your computer it stays loaded in its firmware, so you can pick up your synth or Eurorack and take it with you without having to drag your computer along for the ride. The System-1m is capable of a huge range of synth tones thanks to Analog Circuit Behavior technology that provides authentic modeling of all of the analog components of some of the most sought-after classic synths.

AIRA Link gives you audio and MIDI over USB

Because the Roland AIRA System-1m is compatible with AIRA Link, you can route MIDI and audio to and from with a single USB cable. Plug it into Roland's AIRA MX-1 Mix Performer, for example, and use it as an external effect without having to connect audio and MIDI cables. You'll be able to sequence System-1m's parameters and send audio to it without creating a mess of cables around your gear.

Roland AIRA System-1m Semi-modular Synthesizer Features:

• Semi-modular synthesizer with PLUG-OUT capability
• 19 color-coded CV/Gate and audio connections with LED lighting
• 84 HP Eurorack, table-top and 19" rack compatible using AC or Eurorack power
• Versatile oscillators with six waveforms, Crossmod, Ring Mod, Sync and Color control
• All parameters controlled with high-resolution knobs and sliders with LED indicators
• External input for processing external signals through filter, amp and FX section
• -12dB and -24dB filter types with independent highpass filters
• Integrated tone, crusher, reverb and delay effects
• Tempo syncing for LFO and delay
• 24-bit/96kHz audio and MIDI interface
• AIRA Link for easy connection to MX-1 Mix Performer
• Includes rack-mount adapter and braided patch cables
• Able to load software synths via DAW software that hosts VST3 and AU

Tech Specs

• Polyphony: 4 Notes
• Effects Types: Tone, Crusher, Reverb, Delay
• Arpeggiator: No
• Analog Inputs: 8 x 1/8" Inputs

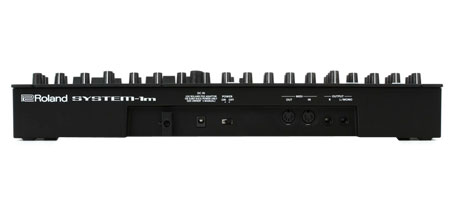

• Analog Outputs: 7 x 1/8" Output, Stereo 1/8" and 1/4" Main Outputs, 1 x 1/8" (Headphones)
• MIDI I/O: In/Out/USB
• USB: 1 x Type B
• Height: 2.75"
• Width: 16.81"
• Depth: 5.08"
• Weight: 2.75 lbs.
