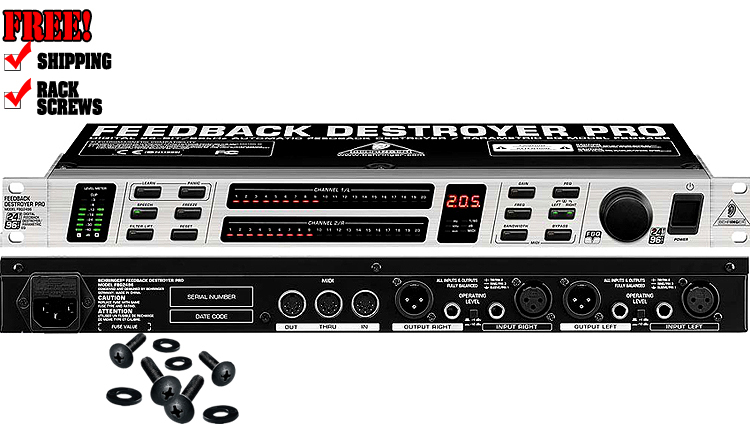

Behringer FBQ2496

Description

The FBQ2496 is the fastest (>0.2 sec.) and the only 96kHz feedback suppressor on the market. Using an ultra-fast feedback detection algorithm, it automatically and 'intelligently' locates up to 20 feedback frequencies per channel and sets extremely narrow notch filters to 'destroy' them, leaving the remainder of the signal virtually untouched. Easy does it: with the 'Set-and-Forget' default setting plus the Panic button, your Feedback Destroyer can be up and running in no time! The auto mode continuously monitors the mix, resetting programmed filters automatically, while the manual mode allows individual setting of up to 40 fully parametric filters with frequency, bandwidth and gain adjustment. Open MIDI architecture means that future software updates and flexible communication with digital equipment are a no-brainer. With its various modes you can master just about any live sound situation or use it as a creative sound-shaping tool.

Features:

• Automatically and 'intelligently' locates and destroys up to 20 frequencies per channel
• Ultra-fast feedback detection (>0.2 sec) due to proprietary FFT signal analysis
• Ultra-narrow notch-filters (up to 1/60th octave) for very effective feedback suppression, while keeping highest sonic quality
• 'Set-and-forget' default setting plus Panic button enable immediate and super-easy Feedback Destroyer performance
• Auto mode continuously monitors the mix, resetting programmed filters automatically
• Single-shot mode automatically detects and destroys feedback and locks the filter until you reset it manually
• Manual mode allows individual setting of up to 40 fully parametric filters with frequency, bandwidth and gain adjustment

• Ultra-high resolution 24-bit/96 kHz A/D and D/A converter powered by a 32-bit DSP for ultimate audio performance

• Open MIDI architecture for future software updates and flexible communication with digital equipment

• Balanced inputs and servo-balanced outputs with gold-plated XLR and 1/4' TRS connectors

• Internal switch-mode power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus lowest possible power consumption for energy savings

• High-quality components and exceptionally rugged construction ensure long life

• Conceived and designed by Behringer Germany

  Audio Inputs

  Connections: XLR and 1/4 in. TRS stereo connector
  Type: Electronically balanced input
  Input impedance: approx. 20 kOhms balanced
  Nominal Input Level: -10 dbV/ +4 dBu (adjustable)
  Max. Input Signal Level: +20 dBu at +4 dBu nominal level, +6 dbV at -10 dBV nominal level, typically -40 dB

  Audio Outputs

  Connections: XLR and 1/4 in. TRS stereo connector
  Type: Balanced
  Output Impedance: approx. 200 Ohms balanced
  Max. Output Level: +20 dBu at +4 dBu nominal level, +6 dBV at -10dBV nominal level

  Bypass

  Type: Relay, hard bypass in case of power outage

  System information

  Frequency Response: <10 Hz to 44 kHz
  Dynamic Range: 107 dB
  THD: 0.007 % typically at +4 dBu, 1 kHz, amplification 1
  Crosstalk: <-100 dB @ 1 kHz

  MIDI Interface

  Type: 5-pole DIN connectors IN/OUT/THRU

  Digital Processing

  Converter: 24 Bit / 96 kHz
  Sample Rate: 96 kHz

  Parametric Equalizer (PEQ)

  Type: Max. 20 independent, fully parametric filters per channel
  Frequency Range: 20 Hz to 20 kHz
  Bandwidth: 1/60th to 10 octaves
  Possible Value Range: +15 to -36 dB

  Feedback Destroyer (FBQ)

  Type: Digital signal analysis for feedback recognition purposes
  Filter: Max. 20 digital notch filters per channel
  Frequency Range: 20 Hz to 20 kHz
  Bandwidth: 1/60th octave
  Possible Value Range: 0 to -36 dB

  Display

  Type: 3-digit numeric LED display

  Power Supply

  Mains Voltage: ~100 - 240 V, 50 - 60 Hz
  Power Consumption: Approx. 10 W
  Fuse: T 1 A H 250 V
  Mains Connector: Standard receptacle

  Dimensions/Weight

  Dimensions (H x W x D): Approx. 1 3/4 in. x 19 in. x 7 1/2 in.
  Weight: Approx. 4.2 lbs.
