Pioneer XDJ-R1: Mixer Section

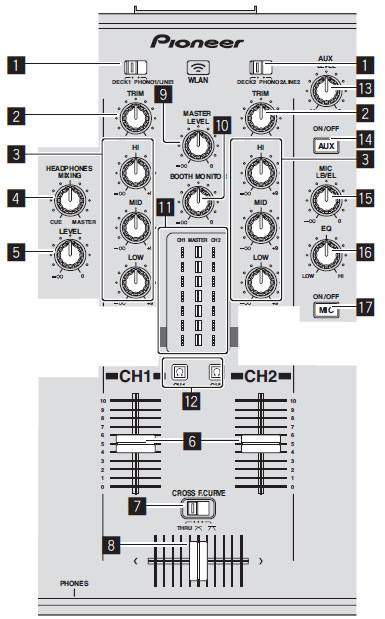

1. DECK, PHONO/LINE selector switch

Used to select the [CH 1] or [CH 2] input source from among the devices connected to this unit. ! When set to [PHONO/LINE], the mixer section can be used as a DJ mixer.

2. TRIM control

Adjusts the level of audio signals input in each channel.

3. EQ (HI, MID, LOW) controls

These adjust the sound quality of the respective channels. These adjust the [HI] (high range), [MID] (middle range) and [LOW] (low range), respectively.

4. HEADPHONES MIXING control

Adjusts the balance of the monitor volume between the sound of the deck whose button is pressed and the master sound.

5. HEADPHONES LEVEL control

Adjusts the audio level output from the [PHONES] terminal.

6. Channel fader

Adjusts the level of audio signals output in each channel.

7. CROSS F. CURVE

This switches the crossfader curve characteristics

8. Crossfader

The sound of the respective channels is output according to the curve characteristics selected with the [THRU,,] selector switch.

9. MASTER LEVEL control

Adjusts the audio level output from the [MASTER OUT 1] and [MASTER OUT 2] terminals.

10. BOOTH MONITOR control

Adjusts the level of audio signals output from the [BOOTH] terminal.

11. LEVEL indicator

This displays the audio levels of the respective channels.

12. (CH1, CH2) button

Used to monitor the [CH 1] or [CH 2] sound.

13. AUX LEVEL control

Adjusts the audio level input to the [AUX IN] terminals.

14. AUX (ON/OFF) button

These turn the AUX effects on/off.

15. MIC LEVEL control

Adjusts the audio level input to the [MIC] terminal.

16. MIC EQ control

This adjusts the microphone's sound quality.

17. MIC (ON/OFF) button

Turns the microphone on/off.
