Pioneer DDJ-SR: Playing tracks and outputting the sound

This section is used to control the four decks. The buttons and controls for operating decks 1 and 3 are located on the left side of the controller, those for operating decks 2 and 4 are located on the right side of the controller.

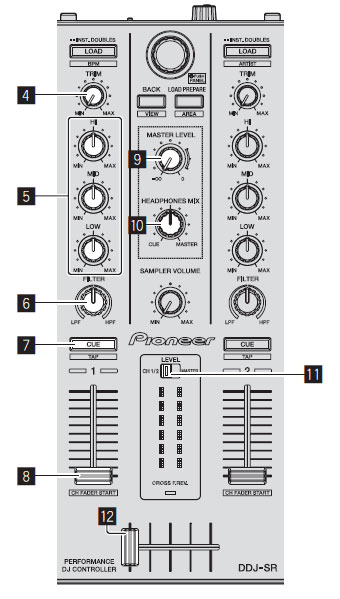

Mixer Section

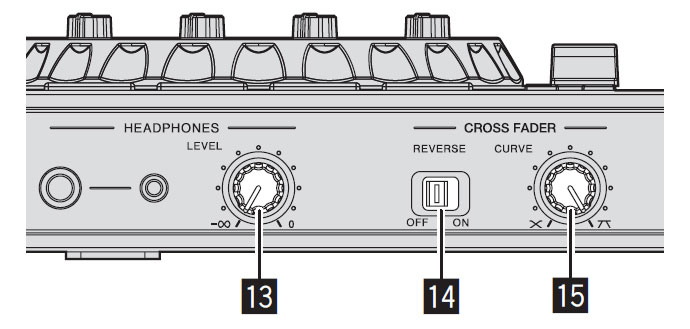

Front Panel

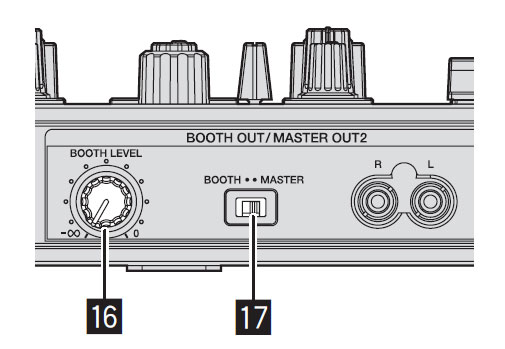

Rear Panel

4. TRIM control

5. EQ (HI, MID, LOW) controls

6. FILTER control

7. Headphones CUE/TAP button

8. Channel fader

9. MASTER LEVEL control

10. HEADPHONES MIX control

11. Level indicator switch

12. Crossfader

13. HEADPHONES LEVEL control

14. CROSS FADER REVERSE switch

15. CROSS FADER CURVE control

16. BOOTH LEVEL control

17. BOOTH/MASTER selector switch

1. Set the positions of the controls, etc., as shown below.

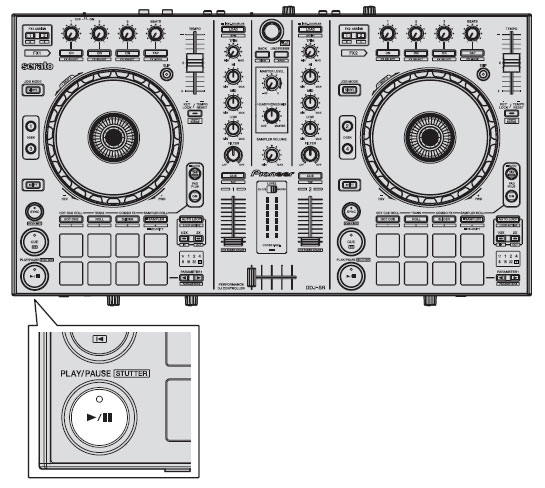

2 Press the [f] button to play the track.

3. Move the channel fader away from you.

4. Turn the [TRIM] control.
Adjust [TRIM] so that the orange indicator on the channel level indicator lights at the peak level.

5 Turn the [MASTER LEVEL] control to adjust the audio level of the speakers.
Adjust the sound level output from the [MASTER OUT 1] and [BOOTH OUT/MASTER OUT 2] terminals to an appropriate level.

When the [BOOTH/MASTER] selector switch is set to the [BOOTH] position, the [BOOTH LEVEL] control can be used to adjust only the audio level output from the [BOOTH OUT/MASTER OUT 2] terminal to an appropriate volume.
