Pioneer CDJ-TOUR1

Overview

Headline act

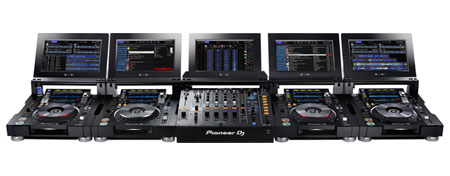

Tour from festival to arena with the CDJ-TOUR1 and perform at the highest level. Together with the DJM-TOUR1 mixer you'll play the main stage with a sturdy, reliable set-up you can count on.

The CDJ-TOUR1 delivers the warm high-resolution sound you're used to, and adds pro-grade audio components to scale up for any size of event. And with the same familiar layout and features as the CDJ-2000NXS2, and a large fold-out touch screen you get effortless control when it matters most.

Key features

Warm sound at any venue

A 32-bit D/A convertor, made by ESS Technologies, delivers incredibly low noise and distortion even at the super-high volumes needed for large-scale events. Plus the 96 kHz/24-bit sound card reproduces high-res sound, while the separate power supply further reduces unwanted noise.

Large fold-out touch screen

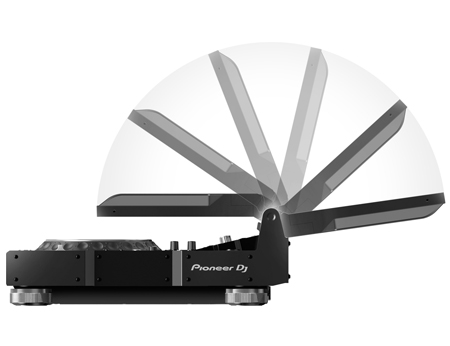

Next to the standard 7-inch touch display, you get a 13-inch, fold-out, full-colour touch screen for enhanced control. You can tilt the screen to suit your preference, adjust the lighting or attach the display shade to protect the sun's glare when you're playing outside.

Pro DJ Link

Pro DJ Link lets you share one source across up to 4 players. Combine this with rekordbox dj to access pre-prepared loops and cues, sync the beat with the master deck, and access a host of advanced features while you're on stage.

Festival-proof design

The CDJ-TOUR1's rigid design comes with isolator feet for stability on any surface and reinforced sides. What's more, the LAN ports have NEUTRIK etherCON® connectors with a latch lock, so compatible cables will stay in place whatever vibrations and knocks are thrown at them.

Main Features

• Plays
• USB Storage Support
• MIDI Control
• ProDJ Link
• KUVO ready
• Auto Standby
• rekordbox

Specifications

• Dimensions (with fold-out screen)
  • When upper display part is closed (W x D x H): 385 x 451 x 178 mm
  • When upper display part is upright at 90 degrees (W x D x H): 385 x 457.2 x 418 mm
  • When upper display part is fully open (W x D x H): 385 x 693.9 x 203.1 mm
• < Weight : 24.69 lb
• Processor : ESS Technologies DAC (ES9018)
• Soundcard : 24 bit/96 kHz
• Frequency Range : 4 - 40000 Hz
• Signal-to-Noise Ratio : 115 dB
• Distortion : < 0.0018 %
• Audio Output Level : 2.0 Vrms (1 kHz, 0 dB)
• Power Consumption : 51 W

Performance Control

• Jog Dial size
• Hot Cue
• Slip Mode
• Reverse
• Needle Search / Needle Drop
• Vinyl Speed Adjust

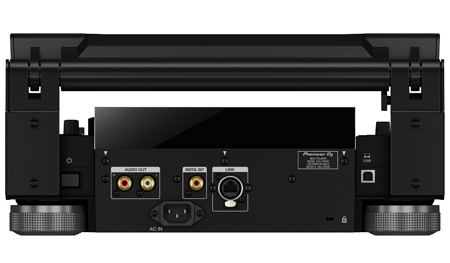

Terminals

• Audio Sources
  • iPhone/iPad/iPod touch, Android phones/Android Tablets
  • USB storage devices (flash memory/HDD, etc.)
  • Computers (Mac/Windows PC)
  • Optical drive (CD, CD-R/RW, DVD±R/RW/R-DL)
• LAN : 1 (100Base-TX)
• USB
  • 1 USB A port
  • 1 USB B port
• Outputs
  • 1 ANALOGUE (RCA)t
  • 1 Digital (Coaxial)

Manuals & Documentation

• User Manual
