OVERVIEW

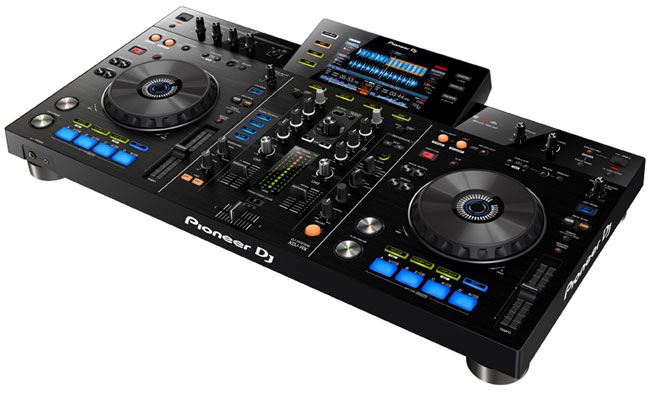

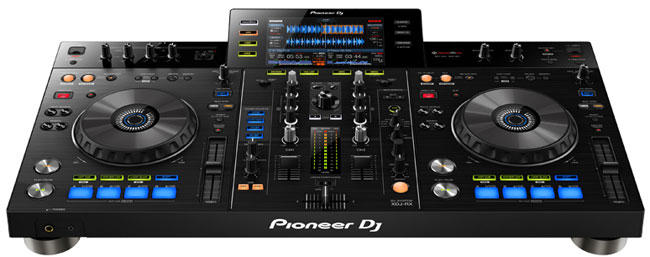

The XDJ-RX, is a DJ console that incorporates two separate digital players, a mixer, and a built-in monitor. The uniquely designed DJ system is intended for users of the popular Pioneer rekordbox™ music management software, which enables DJs to quickly play prepared music stored on a USB device, eliminating the need to connect or carry a separate computer for use as a music source. The XDJ-RX’s featured 7-inch LCD screen provides a window of information including simultaneous display of music waveforms from each integrated player. The unit also emulates Pioneer’s well-known professional players with built-in key performance functions including HOT CUE, BEAT EFFECTS, SOUND COLOR FX and a new LOOP SLICE feature.

LARGE LCD COLOR DISPLAY
The XDJ-RX features a high-resolution 7-inch LCD color monitor located on the top center of the console to display an array of music information.

• Browse Screen – Displays music information stored on a connected USB device by playlist, a
• rtist, album, track, history and folder.
• Wave and Wave Zoom – During music playback, the entire waveform of the music from each deck can be viewed simultaneously on the screen. Users can also change the resolution of the waveforms with a turn of the rotary knob, providing five levels of Wave Zoom to show the details of the music transitions.
• Beat Count – Accurately displays the number of beats until a set point.


PERFORMANCE FUNCTIONS
The XDJ-RX follows a similar layout as Pioneer’s flagship models and offers similar functions and operability.

• Beat Sync – The feature let users instantly match tempo and beat location of songs.
• Quantize – Utilizing the Quantize feature, cue points and loops can be set perfectly on beat. The Quantize feature ensures cue points are set accurately and automatically, correcting and synching beats during manual looping or real-time cueing to reduce off-beat mistakes.
• Slip Mode – When activated, Slip Mode silently continues song playback during a loop, reverse or scratch and continues audible playback at the exact time when the loop, reverse or scratch is ended, resulting in smoother transitions.
• Beat Effects and Sound Color FX – The Beat Effects function offers eight different effects (Delay, Echo, Spiral, Reverb, Trans, Flanger, Pitch and Roll) for additional creative audio performances. The console also includes four Sound Color FX functions (Noise, Gate/Comp, Crush and Filter), which add numerous audio effect combinations and arrangements to currently playing music with the simple twist of a knob.
• Loop Slice (new) – Separates the loop range into four parts and enables repeated playback of the separated sections.
• Hot Cue – Enables instant playback of a set point in the music. Each player can set four Hot Cue points.
• Auto Beat Loop – Performs a loop play by automatically setting loop-out points from the BPM of the music.


rekordbox
The XDJ-RX includes Pioneer’s rekordbox music management software for advanced preparation of music. Available in versions for Mac® and PC, users can configure, edit, and save a history of music sets. For added convenience, Pioneer also offers the rekordbox App, which enables users to prepare and manage music stored on their portable devices as well as analyze music via Wave Zoom, key, wave, beat grid, BPM, and ID3 Tag, create playlists, active loops, cue/loop points and beat location settings, and save playback logs of music. The App is compatible with iOS and Android™ devices and is available at no charge in the App Store or Google Play.

VERSATILITY
The XDJ-RX features two built-in USB ports for connection of multiple music sources. In addition, the unit can record music sessions onto a connected USB device, saved in WAV format for future playback. For maximum versatility, the mixer section can be used as a standalone 2-channel mixer for use with external players and turntables.

ADDITIONAL FEATURES
• DJ Software MIDI Control
• My Settings – The function settings of a player can be saved to an iPhone, iPad or iPod touch or USB storage device. For additional convenience, the settings can also be made on the rekordbox App or software, giving users the ability to switch to their settings when connecting to a CDJ-900NXS or CDJ-2000NXS
• Traffic Light – Utilizing a multi-player PRO DJ LINK connection, a green light indicates that music will sound harmonious with the key of the music being played
• Active Loop – Automatically starts loops when playback begins from a specified point
• Auto Standby – Automatically senses active operation and the presence of input signals, switching to standby mode when inputs are not detected for a long period
  Compatibility with Native Instruments TRAKTOR® PRO2 DJ Software
• Playable Media iPhone / iPod touch, Android phone (from April 2015), USB storage devices (flash memory / HDD / etc), Computers (Mac / Windows PC)
• Playable Files MP3, AAC, WAV, AIFF (iOS version of rekordbox: MP3 and AAC only)
• USB Storage Support File Systems FAT, FAT32
• Number of Channels 2-channels
• Sampling Rate 48 kHz
• A/D, D/A Converter 24 bit
• Frequency Response 20 Hz ～ 20 kHz
• S/N Ratio 110 dB or more (USB)
• Total Harmonic Distortion Ratio 0.003 % or less (USB)

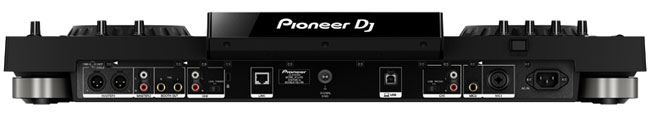

• USB Ports USB A port x 2, USB B port x 1
• Audio Input Ports Phono/Line x 2 (RCA), MIC x 2 (1 x XLR/¼-inch jack, 1 x ¼-inch jack)
• Audio Output Ports Master Out x 2 （XLR x 1, RCA x 1）, Booth Out x 1 (¼-inch jack), Headphone Monitor Out x 2 (Front ¼-inch jack, 3.5mm mini plug)
• Other Ports LAN (100Base-TX) x 1,
• Audio Output Voltage 12.3 Vrms (XLR), 7.8 Vrms (RCA)
• Head Room 19 dB
• Electricity Consumption 21 W
• Power AC 100-240V (50 Hz / 60 Hz)
• Maximum External Dimensions 28.7" (W) x 16.2" (D) x 4.1" (H)
• Weight 7.28 lbs

  rekordbox™ SYSYEM REQUIREMENTS
• Supported OS
  • Mac® OSX v10.10, 10.9, 10.8, 10.7, or 10.6
  • iPhone® 5S, iPhone® 5C, iPhone® 5, and iPod touch (3rd, 4th, and 5th Gen). Requires iOS 7, iOS 6, or iOS 5.
  • Android OS 4.1, 4.0, 3.2, 3.1, 2.3, 2.2, or 2.1.
  • *Pioneer does not guarantee normal operation of all types and models of Android devices.
  • Windows®8.1 / Windows®8 / Windows®8 Pro / Windows®8.1 Pro
  • Windows®7 Home Premium / Professional / Ultimate
  • *Windows® XP Professional x64 Edition is not supported

• Playable Files MP3, AAC, WAV, AIFF

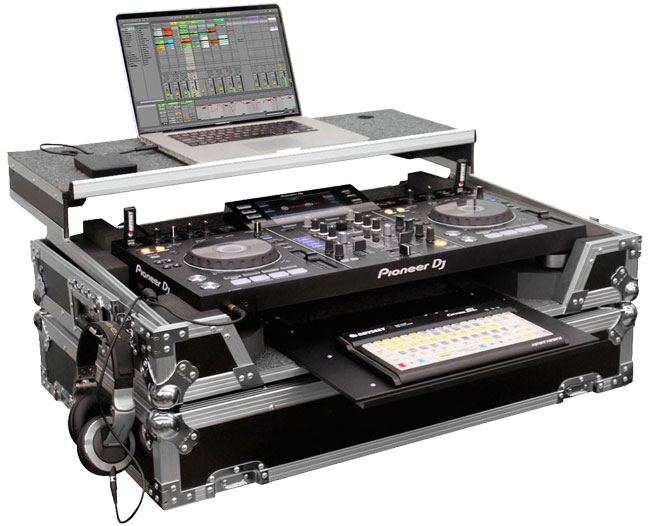

Case featuring our patented Glide Style™ platform design perfect for setting up additional gear for your setup such as desktop monitors, midi pads and keyboards, supplementary remix effects processors, and compact mixing boards. Specifically made for the XDJ-RX DJ controller, it also features A stylish V-Cut™ removable panel that allows for easy access to the bottom pullout GT™ glide tray shelf ideal for compact accessories.

• Features and Specs:
• Removable V-cut™ Front Access Panel
• Patented Top Glide Style™ Platform with 3 Cable Port Holes
• Bottom Pullout GT™ Glide Tray Shelf
• Bottom Rubber Feet
• Corner Roller Wheels for Easy Transport
• Heavy-Duty Ball Corners and Hardware
• Plenty of Cable Management Space Underneath & Behind the Controller
• Bottom Cable Port, Perfect for Cable Management
• Recessed Handle and Latches
• Limited Lifetime Warranty
• Pullout Tray: 17.5"W x 12.5"D, Slides Out 7"
• Glide Platform: 33.75”W x 12”D
