Roland DJ-707M DJ Controller

Scene Presets

Using the 10 onboard scenes, you can create 'go-to' event settings for audio routing, loudspeaker management and system setups-and recall them instantly. Scenes are a huge timesaver for standard event configurations, letting you switch settings for your different speaker systems and recall custom setups for venues where you play regularly.

Loudspeaker Management x3

Master, booth, and zone outputs all have independent loudspeaker management settings, including four-band EQ, multiband compression, limiter, and mono mode. It's like having three speaker management processors built into one unit.

Anti-Feedback

Feedback at a gig is dangerous as it can ruin a special speech or even plague the whole event. Built-in feedback suppression listens out for feedback-and even anticipates it-before adjusting the speaker output automatically.

Dual USB Ports

Connect two computers at once for a backup laptop connection or seamless DJ changeover. The USB B port also works as a standard USB audio interface.

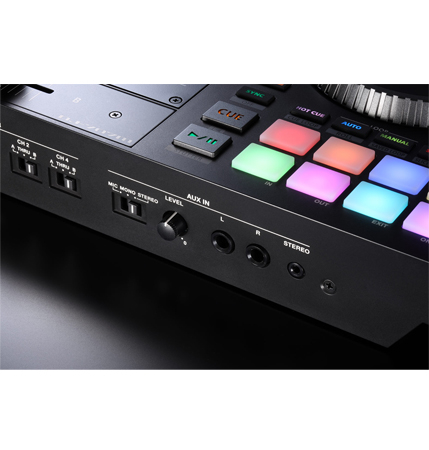

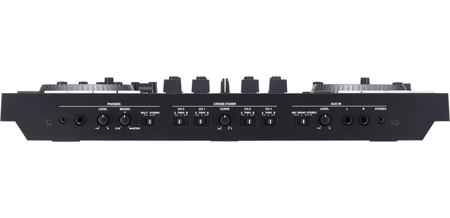

Inputs for Guest Performers

When an event includes a guest musician or performer, you can easily plug them into the front-facing dual 1/4-inch jacks or 1/8-inch stereo aux input without disrupting your DJ configuration.

Zone Output

The fully assignable zone output with dedicated level control is ideal for creating a separate mix for a videographer, sending different music to another area of the venue, or even adding a subwoofer.

SIZE THAT DOESN'T SACRIFICE PERFORMANCE

The compact DJ-707M is packed with more specifications than bulkier controllers that don't fit in tight DJ booths and are hard to transport without an equipment van.

Built to Last

You can't work if your DJ controller isn't working. Which is why the DJ-707M is built for life on the road, with rugged, reinforced metal parts both inside and out.

The Right Size for DVS

The DJ-707M's size fits perfectly between turntables and DJ media players. And it's Serato DVS Upgrade Ready, so you can use it as the ultimate mobile DJ mixer with your component setup.

SPECIFICATIONS

• Signal Processing: Sampling Frequency = 48 kHz
• Scene Memory: 10
• Internal Effect
• Mic Effects
• Channel Effects
• Output Equalizer
• Output Multiband compressor
• Nominal Input Level
• INPUT (1-4) (RCA phono type, LINE): -12 dBu
• INPUT (1, 2) (RCA phono type, PHONO): -39 dBu
• MIC IN (1, 2) (XLR type): -60 dBu
• AUX IN (1/4-inch TRS phone type, AUX): 0 dBu
• AUX IN (1/4-inch TRS phone type, MIC): -40 dBu
• AUX IN (Stereo miniature phone type): -6 dBu
• Nominal Output Level
• MASTER OUT 1: +6 dBu (balanced)
• MASTER OUT 2: +0 dBu
• BOOTH OUT: +6 dBu (balanced)
• ZONE OUT: +0 dBu
• Input Impedance
• INPUT (1-4) (RCA phono type): 47 k ohms or greater
• MIC IN (XLR type): 7 k ohms or greater
• AUX IN (1/4-inch TRS phone type, AUX): 30 k ohms or greater
• AUX IN (1/4-inch TRS phone type, MIC): 7 k ohms or greater
• AUX IN (Stereo miniature phone type): 10 k ohms or greater
• Output Impedance
• MASTER OUT 1: 600 ohms (balanced)
• MASTER OUT 2: 1 k ohm (unbalanced)
• BOOTH OUT: 600 ohms (balanced)
• ZONE OUT : 1 k ohm (unbalanced)
• PHONES: 44 ohms
• Frequency Response: 48.0 kHz: 20 Hz-22 kHz (+0/-2 dB)
• Display: 16 characters, 2 lines (backlit LCD)
• Connectors
• INPUT (1-4) jacks: RCA phono type
• MIC IN (1, 2) connectors: XLR type
• AUX IN jacks: 1/4 inch TRS phone type, Stereo miniature phone type
• MASTER OUT 1 connectors: XLR type (balanced)
• MASTER OUT 2 jacks: RCA phono type
• BOOTH OUT jacks: 1/4
• inch TRS phone type (balanced)
• ZONE OUT jacks: RCA phono type
• PHONES jacks: Stereo 1/4 inch phone type, Stereo miniature phone type
• PC (A, B) ports: USB B type
• MIDI OUT connector
• DC IN jack
• PHONO GROUND terminal
• Power Supply: AC adaptor
• Current Draw: 2,000 mA
• Accessories
• Startup Guide
• Leaflet "USING THE UNIT SAFELY"
• AC Adaptor
• Power cord
• USB cable

SIZE AND WEIGHT

• Width : 474 mm
  18-11/16 inches
• Depth : 331 mm
  13-1/16 inches
• Height : 73 mm
  2-7/8 inches
• Weight (excluding AC adaptor) : 3.5 kg
  7 lbs 12 oz
