Control and Effects

Control and Effects Craft your sound with RANE ONE's multi-function, independent performance pads, giving you access to Hot Cues, Saved Loops, Roll, Sampler, Slicer and Serato's Scratch Bank feature. With 6 radio-style FX buttons, instantly activate any combination of software FX with a single press, fine-tune with depth and beat parameter controls, then activate with the independent aluminum paddle controls. Finally, take full control of your sound with the 3-band dynamic EQs and high/low pass filters on each deck along with dedicated loop controls.

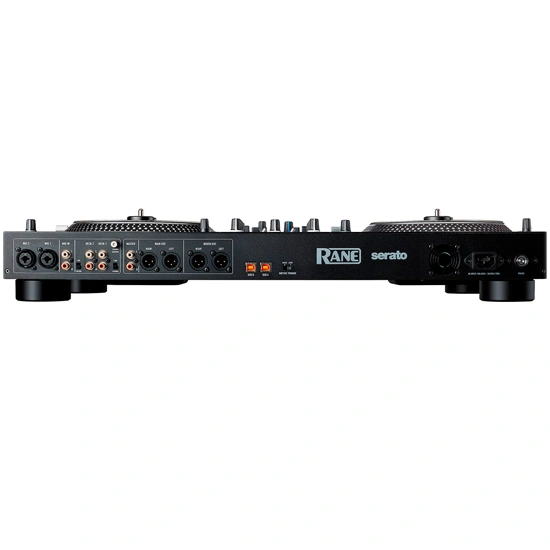

Plenty of Ways to Connect

RANE's reputation for high-quality sound, and extended pro-connectivity, continues with the ONE. Each deck is switchable between two USB laptop connections as well as a line input that's switchable to phono for traditional turntables. Amplify your music through RANE's pro audio circuitry to the balanced main and booth XLR outputs, and additional RCA main out. There are two dual TRS/XLR microphone inputs alongside an auxiliary input, giving you up to five sources of audio to mix.

Dedicated Loop

Dedicated Loop Featuring a dedicated loop section, the ONE allows DJs to loop a section of their track at the touch of a button with double and half controls instantly accessible. Relooping and manual in/out controls are also available to ensure complete freedom in track and mix control.

Features

• 7.2" motorized platters with quick release acrylic disks
• Instant access software FX with 2 metal FX paddles
• Ultra-light MAG FOUR crossfader
• High/Low-pass filter and 3-band EQ
• Dedicated loop controls
• Independent multi-mode performance pads including Serato
• Scratch banks
• Turntable style start/stop
• XLR main and booth outputs
• 2 line/phono inputs
• 2 TRS/XLR microphone inputs
• 2 USB computer connections
• Portable DJ controller
• Weight: 24 lb.
• Serato DJ Pro included

Specifications

• Converters
• Cirrus Logic, 24-bit PCM, 48kH
• Digital Signal Processing
• 32-bit, Floating Pont, Double precision
• Dynamic Range (A-weighted, unity gain)
• ADC: 113dB
• DAC: 113dB
• CD Input to Analog Output: 110dB
• CD Input to USB Output: 113dB
• USB Input to Analog Output: 113dB

• Microphone 1/2 (Combo XLR/1/4" [6.35mm] TRS, Mic/Line switchable)
• Analog Gain: 25dB
• Maximum Input: 110mV
• Gain Trim: Off to +26dB (unity at center)
• Tone Control: 2-band
• Aux Input (RCA stereo pair)
• Maximum Input: 4Vrms
• Dynamic Range (A-weighted): 114dB
• Gain Trim: Off to +12dB
• Tone Control: 2-band
• CD/Phono Inputs 1/2 (RCA stereo pairs, switchable)
• CD: Line
• Maximum Input: 4Vrms
• Gain Trim: Off to +12dB
• Tone Control: 3-band, full-cut to +10dB
• THD+N (20kHz BW @ 1kHz): 0.004%
• Phono: RIAA
• RIAA Curve: +/-0.25dB
• Gain (@ 1kHz): 31.5dB
• Maximum Input (@ 1kHz): 106mV
• Dynamic Range (A-weighted): 102dB

• Main Outputs (XLR)
• Gain Trim: Off to 0dB
• Maximum Output: 8Vrms
• THD+N (20kHz BW @ 1kHz): 0.004%
• Frequency Response: Flat
• Booth Outputs (XLR)
• Gain Trim: Off to 0dB
• Maximum Output: 8Vrms
• THD+N (20kHz BW @ 1kHz): 0.004%
• Frequency Response: Flat
• Master Outputs (RCA stereo pair)
• Maximum Output: 4Vrms
• THD+N (20kHz BW @ 1kHz): 0.004%
• Frequency Response: Flat
• Headphone Outputs (1/4"/6.35 mm & 1/8"/3.5 mm TRS)
• Maximum Output Voltage: 4Vrms (no load): 50mW (50 ohms)
• Output Power: 0.004%
• Dynamic Range (A-weighted): 108dB

• Pads
• 16 velocity-sensitive multi-color back-lit pads (8 per deck, 8 modes each)
• Faders
• 1 MAG FOUR tension-adjustable crossfader with independent Contour and Reverse controls
• 2 Standard channel faders with shared Contour and Reverse controls
• Connectors
• 2 XLR outputs (Main)
• 2 XLR outputs (Booth)
• 1 RCA stereo output pair (Master)
• 2 XLR / 1/4" (6.35mm) TRS inputs (Mic 1–2) (2) RCA stereo input pairs (Deck 1–2)
• 1 RCA stereo input pair (Aux)
• 1 1/4" (6.35mm) TRS output (Headphones) (1) 1/8" (3.5mm) TRS output (Headphones)
• 2 USB Type-B ports
• 1 IEC power cable input

• Connection: IEC
• Voltage: 100–240V, 50/60Hz
• Consumption: 50W

• 26.5" x 13.6" x 4.9", 674 x 345 x 124.3 mm

• 23.55 lb. 10.68kg
