ACTIVE PART & PART ISO: Individually adjust the volume for the vocals, drums, or inst, or mute them completely.

FX PART SELECT: Choose which parts of a track you want to apply effects to.

PART INSTANT DOUBLES: Isolate a specific part of the track (vocal, drums, or inst) and transfer it to another deck.

Expanded On Jog Display

Customize the information you see on the jogs so there's no need to take your eyes off the decks. Choose from 4 modes, some of which show 3 Band Waveforms (rekordbox only), and keep an eye on Mix Point Link and rekordbox vocal position analysis information, as well as Performance Pad status.

DECK INFO MODE: Shows the information about the deck, including the Overall Waveform. (When using Serato DJ Pro, this mode shows the virtual deck of Serato DJ Pro.)

WAVEFORM MODE: Shows the Zoomed Waveforms for 2 decks.

ARTWORK DISPLAY: Shows the artwork for the track that's playing.

DJ LOGO DISPLAY: Shows your own logo or favorite image on each deck after using the Image Transfer Tool for PC/Mac.

New Mix Point Link for seamless transitions

Take advantage of a completely new playback concept in rekordbox that enables you to create slick musical progression in your sets by linking mix points in tracks so the next song kicks in at the perfect moment. You might set the next track to start from the beginning of its melody when the vocal of the current song ends, ensuring a seamless transition without a sound clash. There's no need to count down or press play manually, which also leaves your hands free to create mash-ups or add effects.

DMX output for rekordbox Lighting function

Liven up your performances with lighting effects that match the mood of the tracks you play. It's easy with the rekordbox Lighting function and, thanks to the DMX output on the DDJ-FLX10, you don't need any other equipment such as an external DMX interface. Simply connect DMX-compatible lighting equipment to the controller and use rekordbox to create custom lighting effects, or set the software to automatically adapt the color and movement of the lights to progress with the music.

Evolved MAGVEL FADER 4-sensor system

Improved from the 2-sensor system on the DDJ-1000, the MAGVEL FADER on the DDJ-FLX10 uses a 4-sensor system. This allows you to make the tiniest volume adjustments, no matter how small the movement of the crossfader, enabling more musical performances.

rekordbox and Serato DJ Pro compatibility

The DDJ-FLX10 offers free plug-and-play compatibility with rekordbox and Serato DJ Pro, giving you hands-on control of your favorite software application. DVS support is available for rekordbox via selected subscription plans, and for Serato via a paid license/subscription to Serato DJ Expansions or Serato DJ Suite.

Multicolored jog ring

You can use the first-ever multicolored jog ring on a Pioneer DJ controller to indicate the different parts of the track that are playing when you're using the Track Separation features, or you can customize the colors to your preferred look.

OTHER FEATURES

USB Type-C

Connect your PC/Mac directly to the controller's USB Type-C terminal with a single cable.

Pitch 'n Time DJ

A voucher for the Serato Pitch'n Time DJ Expansion Pack is included, which enables key shifting and key syncing with perfect audio quality.

Performance Pads

Hit the 8 back-lit rubber Performance Pads to trigger Hot Cues, Pad FX, Beat Jump, and the sampler.

Firmware Update Manager

You'll be automatically notified when firmware updates become available. You can download the Firmware Update Manager

Specifications

Main Features

• Compatible DJ Software: rekordbox
  Serato DJ Pro
• DVS Control: rekordbox (Core plan or above)
  Serato DVS (Paid upgrade)
• Software System Requirements: Visit serato.com for its specifications.
  Visit rekordbox.com for its specifications.

What's in the Box

• Power cord
• AC adaptor
• USB Type-C cable
• Serato voucher(Pitch 'n Time DJ)
• Quick Start Guide
• Precautions for use
• Warranty (selected regions only)

Specifications

• Frequency Range: 20 - 20000 Hz
• Width: 716 mm
• Height: 73.4 mm
• Depth: 400.3 mm
• Weight: 6.7 kg
• Soundcard: 24 bit/44.1 kHz
• Signal-to-Noise Ratio: 110 dB
• Distortion: < 0.002 % (USB)
• Power Consumption: DC 12 V, 3 000 mA

Performance Control

• Channels: 4
• Deck Control: 4
• Jog Wheel (Maximum Dimensions): 206 mm
• Beat FX: LOW CUT ECHO
  Echo
  Multi Tap Delay
  Spiral
  Reverb
  Trans
  ENIGMA JET
  Flanger
  Phaser
  Stretch
  Slip Roll
  Roll
  MOBIUS (SAW)
  MOBIUS (TRIANGLE)
• Sound Color FX: Space
  Dub Echo
  Crush
  Pitch
  Noise
  Filter
• Sampler: 16slot x 4bank
• Hot Cues: 16
• Pad Modes rekordbox: Hot Cue
  Pad FX 1
  Beat Jump
  Sampler
  Keyboard
  Pad FX 2
  Beat Loop
  Key Shift
• Pad modes Serato: Hot Cue
  Pad FX
  Beat Jump
  Sampler
  Pitch Play
  Roll
  Auto Loop
  Key Shift

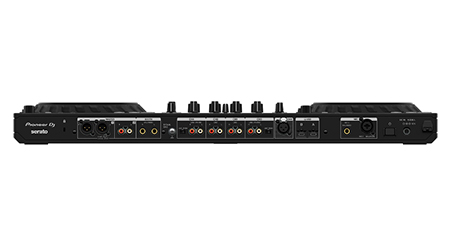

Terminals

• Inputs: 2 LINE (RCA)
  2 PHONO/LINE (RCA)
  1 MIC (XLR & 1/4 inch TRS Jack)
  1 MIC (1/4 inch TRS Jack)
• Outputs: 1 MASTER (XLR)
  1 MASTER (RCA)
  1 BOOT
  H (1/4 inch TRS Jack)
  1 PHONES (1/4 inch stereo phone Jack)
  3.5 mm stereo mini jack x 1
• DMX: 1 XLR connector (3pins)
• USB: 2 USB C ports
