Pioneer DJS-1000

Overview

Elevate the standard

Add the DJS-1000 to your DJ set-up to intuitively create unique sounds and phrases in advance of your set, or on the fly. Use the DJ-friendly interface to sequence and loop your samples as you wish.

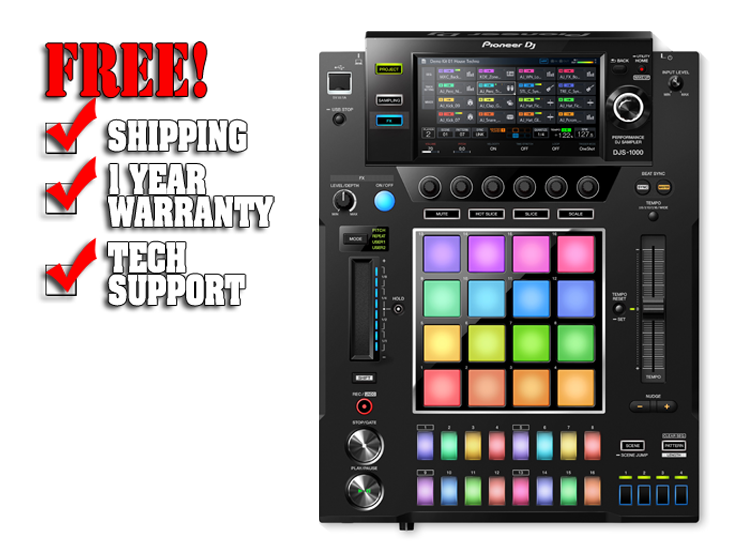

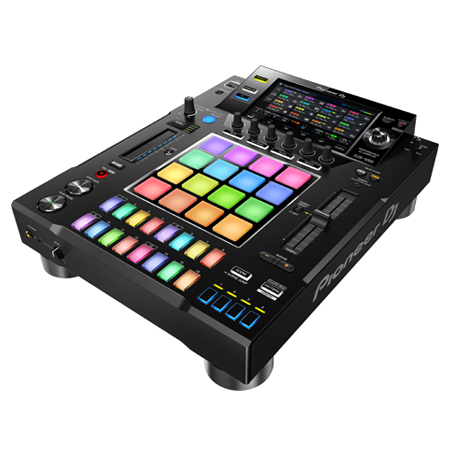

With a 7-inch full-colour touch screen, 16 multicoloured step input keys, multicoloured Performance Pads, a host of inputs and outputs, Live Sampling and various other performance features, having the DJS-1000 in the booth will propel your sets to the next level.

Key features

Step sequencer

Easily create a new groove by tapping the 16 large, multicolored step input keys. Thanks to the keys' changing colours, you can keep an eye on sequence information on each track, at all times.

Tactile performance pads

Load up to 16 samples to the large rubber pads, then finger drum freely to layer sounds on-the-fly. The multicolour LEDs show what samples are in play, while Velocity Mode lets you control the sample volume with the amount of pressure you apply.

Touch strip

Simply touch the strip to change the pitch while using the Pitch Bend feature, or play a drum roll by hitting the Note Repeat option. Customise parameters for even more creative possibilities.

7-inch touch screen

Tap the LCD display to instantly access one of three screens. The Home screen for an overview of assigned samples, the Sequence screen to view the currently playing sequence pattern and the Mixer screen to adjust each track's volume.

Accurate syncing

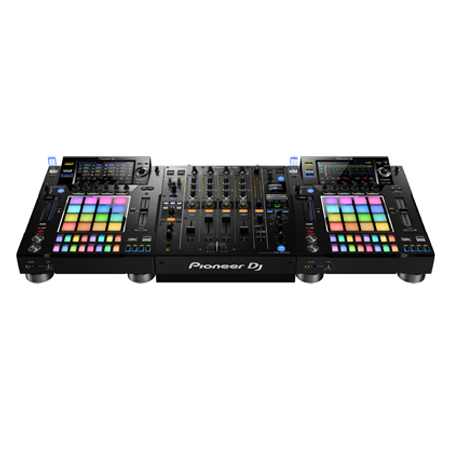

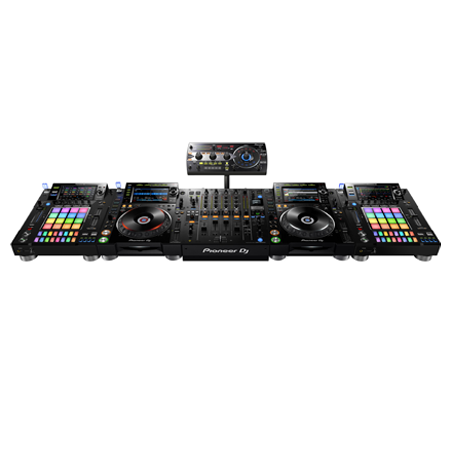

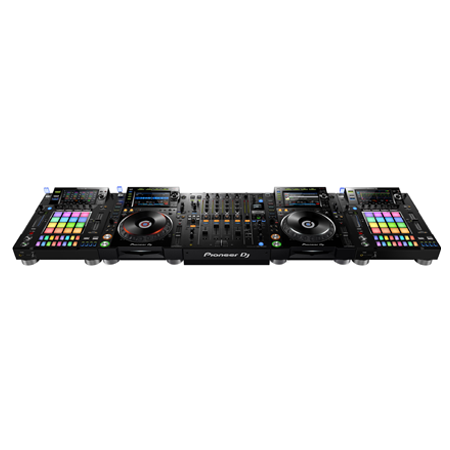

Sync up your DJS-1000 to a CDJ or XDJ set-up using Pro DJ Link. Thanks to the Beat Sync function, a tempo slider and a Nudge button, you'll adjust tempo and beat position manually, just like you would on a turntable.

Live sampling

Sample input sounds and instantly use them as individual tracks. Your sampled sounds are automatically synchronised with the current sequence. Play them in a loop and drop them straight into a live remix.

Specifications

Main Features

Plays

• WAV
• AIFF

USB Storage Support

• FAT
• FAT32
• HFS+

Included Accessories

• Power cord
• LAN cable
• USB cable
• RCA pin cable
• Operating instructions

Specifications

• Width : 12.6 in
• Height : 4.33 in
• Depth : 16.6 in
• Weight : 11.9 lb
• Frequency Range : 20 - 20000 Hz
• Distortion : < 0.003 %
• Power Consumption : 26 W
• Power Consumption (Standby) : < 0.4 W

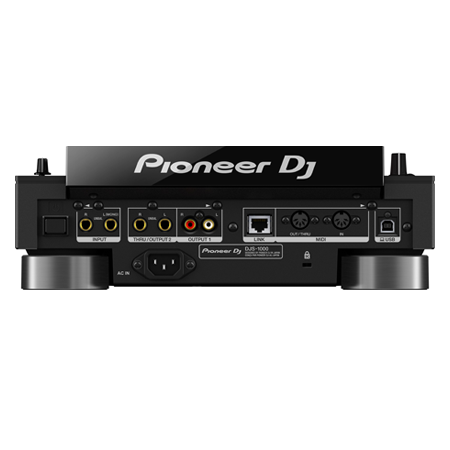

Terminals

Inputs

• 1 INPUT (L/MONO & R, 1/4 inch TS jack)

LAN

• 1 (100Base-TX)

USB

• 1 USB A port
• 1 USB B port

Outputs

• 2 HEADPHONE MONITOR (1/4 inch Stereo Phone Jack, 3.5mm Stereo mini-jack)
• THRU / OUTPUT2 x 1 (1/4 inch TS jack)
• OUTPUT1 x 1 (RCA)

MIDI

• 1 MIDI IN (5P DIN)
• 1 MIDI OUT/THRU (5P DIN)
